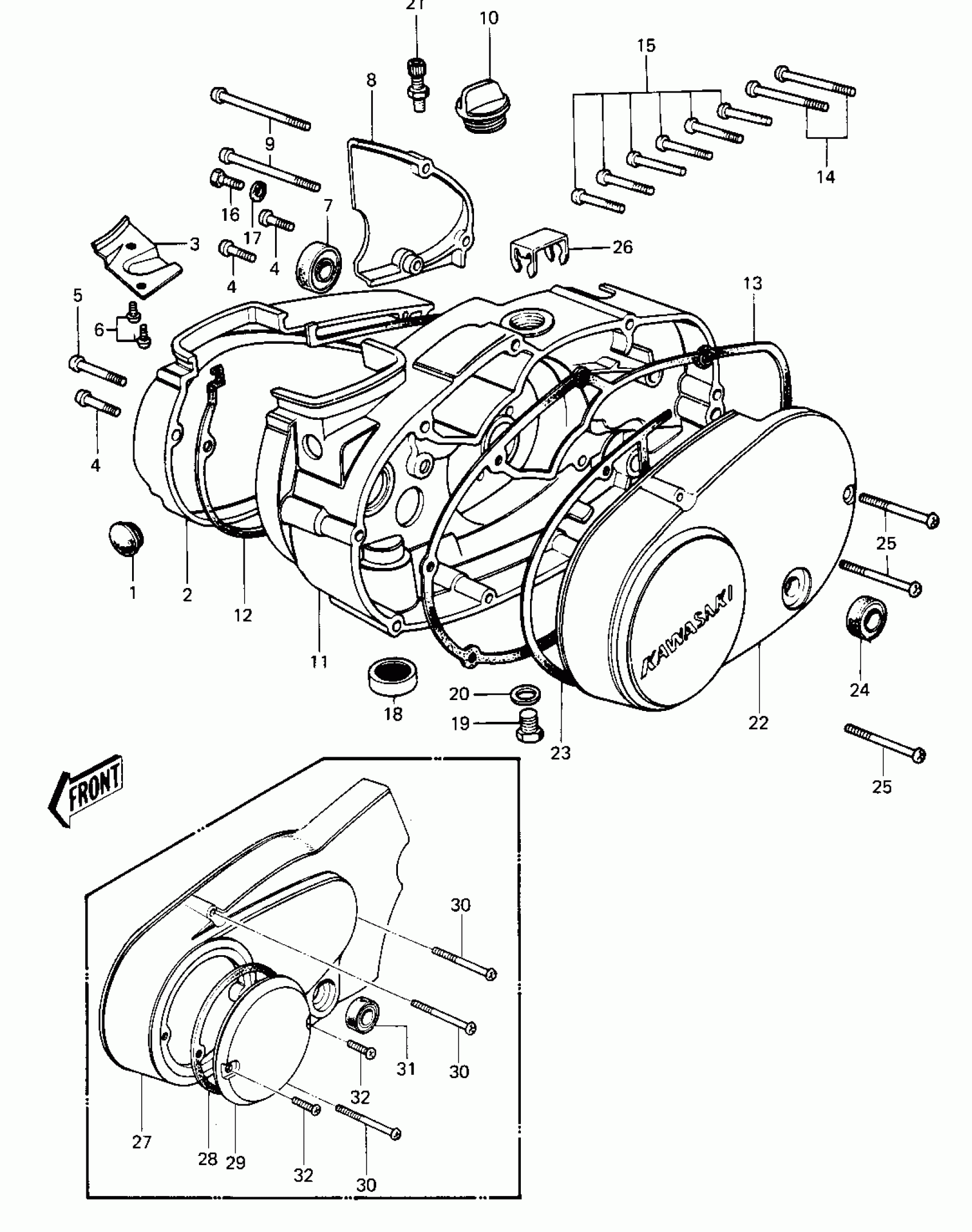

Kawasaki KE100 ENGINE COVERS Diagram

#

Description
Price

1

CAP,RUBBER

14039-001

$3.28

2

COVER,CARB BARREL

14030-1005

Unavailable

2

COVER,CARB BARREL

14030-1005

Unavailable

2

COVER,CARB BARREL

14030-1005

Unavailable

3

COVER,DRAIN PLUG

14025-1137

Unavailable

3

COVER,DRAIN PLUG

14025-1137

Unavailable

4

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

5

SCREW PAN HEAD 6X35

220B0635

$1.24

6

SCREW PAN HEAD 6X12

220B0612

Unavailable

7

OIL SEAL TB14257

653B142507

$18.83

8

COVER,OIL PUMP,BUFF

14030-050-80

Unavailable

9

SCREW-PAN-CROS,6X75

220B0675

Unavailable

10

CAP-OIL FILLER

16115-018

$8.04

11

COVER,R.H,ENG,BARREL

14032-1017

Unavailable

11

COVER,R.H,ENG,BARREL

14032-1017

Unavailable

12

GASKET,CARBURETOR COVER

11060-1201

$25.41

13

GASKET,CLUTCH COVER

11060-1198

$24.58

14

SCREW PAN HEAD 6X45

220B0645

$1.33

15

SCREW PAN HEAD 6X30

220B0630

Unavailable

16

BOLT,HEX HEAD,6X14

92001-121

Unavailable

17

WASHER OIL PUMP BANJO

92022-077

$2.84

18

PLUG,25X12

16116-006

$12.49

19

PLUG,DRAIN,10X12

92067-001

$3.36

20

GASKET,10.5X16X1

92065-058

$3.03

21

ADJUSTER-CABLE

16002-012

Unavailable

22

COVER,L.H.ENGINE

14031-1029

Unavailable

22

COVER,L.H.ENGINE

14031-1029

Unavailable

23

GASKET,GENERATOR COVER

11060-1202

$18.88

24

SEAL-OIL,SB12205

92049-004

$7.63

25

SCREW PAN HEAD 6X45

220B0645

$1.33

26

CLAMP,OIL PUMP CABLE

92037-1107

Unavailable

27

COVER,GENERATOR

14031-1034

Unavailable

28

GASKET BREAKER COVER

14050-002

Unavailable

29

COVER-BRK POINT,CR

14027-007-79

Unavailable

30

SCREW PAN HEAD 6X40

220B0640

Unavailable

31

SEAL-OIL

92049-1249

$7.87

32

SCREW PAN HEAD 6X12

220B0612

Unavailable
