1996 Kawasaki KE100 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1996 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

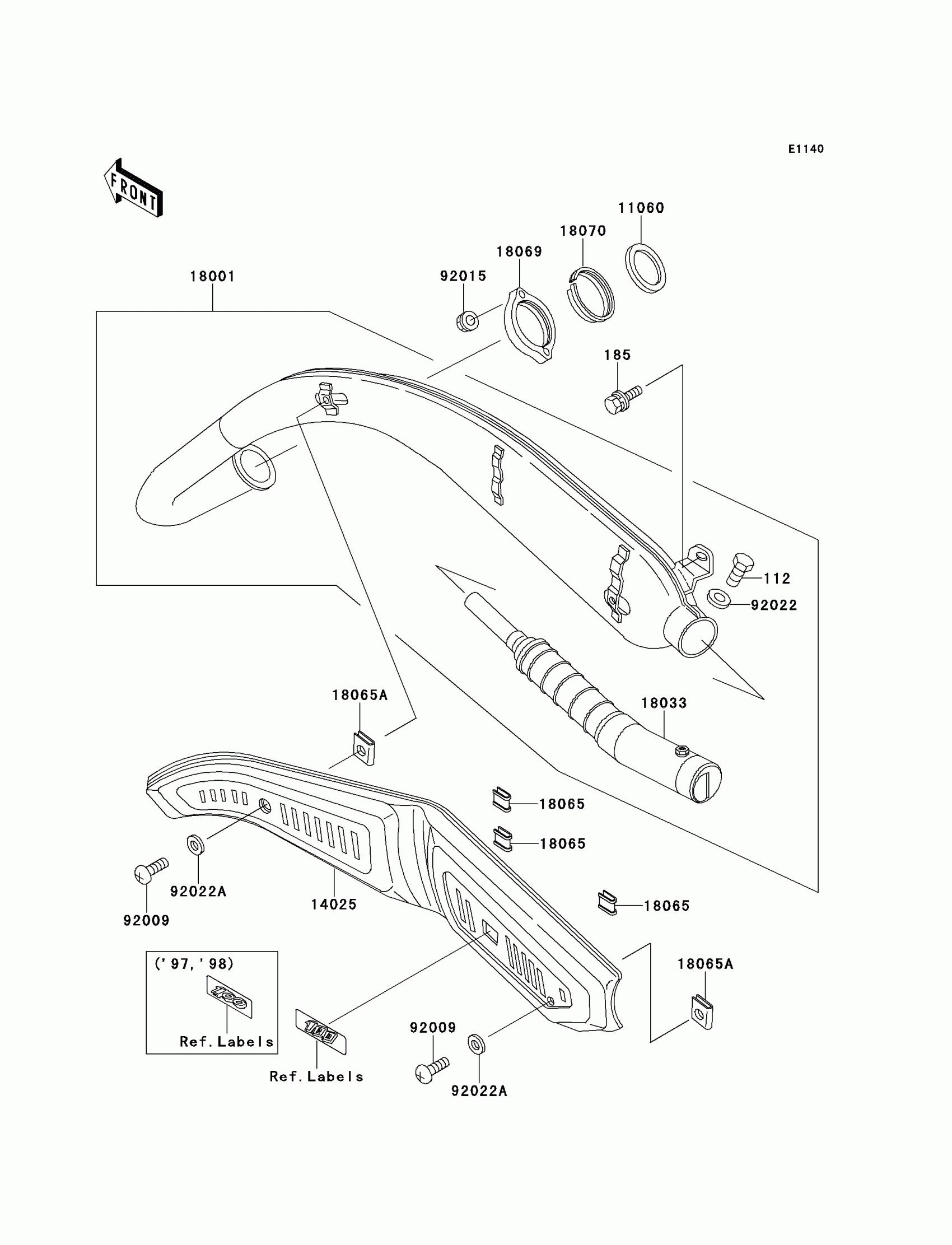

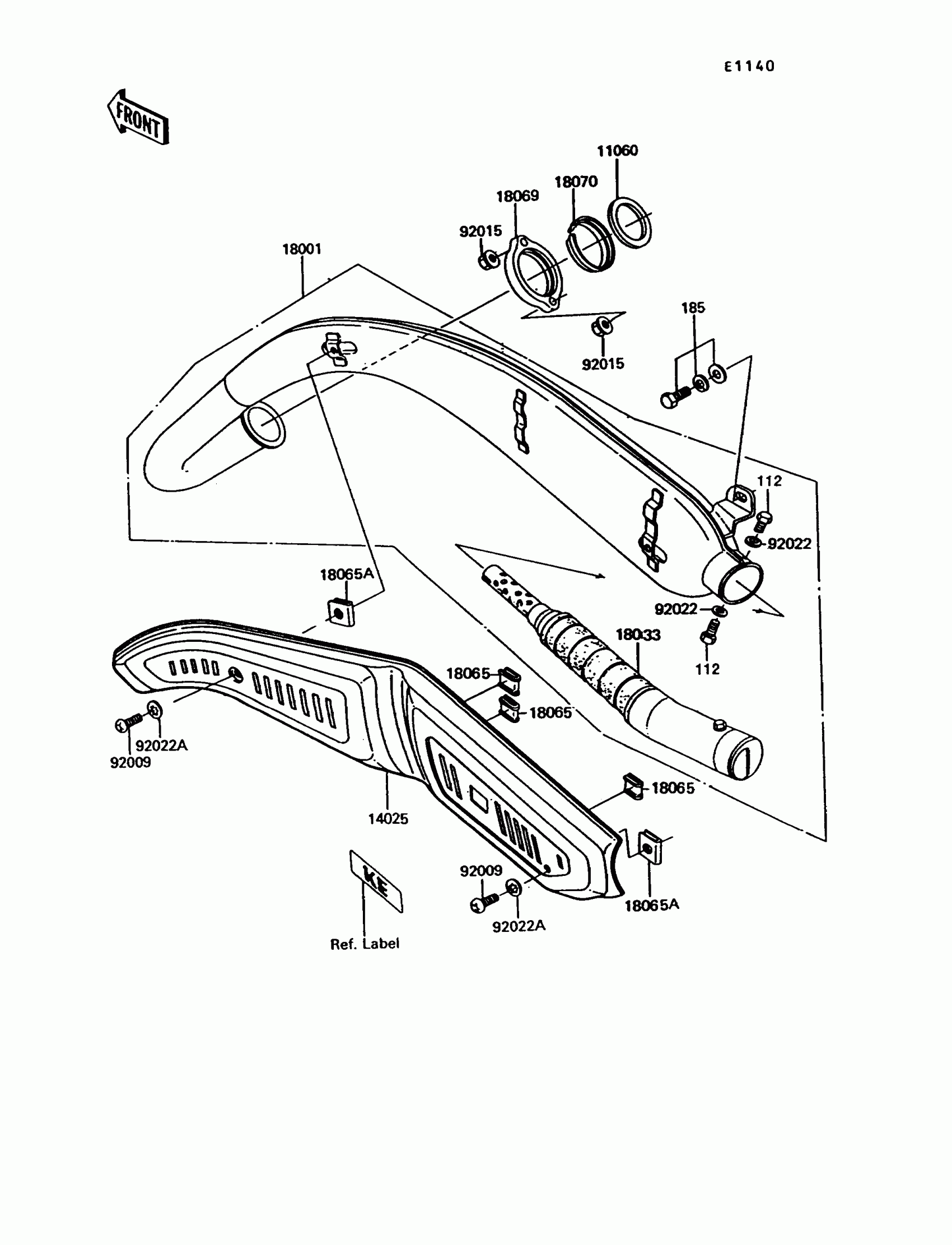

1996 Kawasaki KE100 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET 6X14

112B0614

1
Out of stock

185

1

$4.10

In stock

11060

GASKET,EXHAUST PIPE

11060-1203

1

$8.56

In stock

14025

COVER,MUFFLER,F.BLACK

14025-1372

1
Out of stock

18001

MUFFLER

18001-1603

1
Out of stock

18033

BAFFLE-PIPE MUFFLER

18033-070

1
Out of stock

18065

INSULATOR

18065-007

1
Out of stock

18065A

INSULATOR-HEAT

18065-009

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-048

1
Out of stock

18070

COLLAR,EXHAUST PIPE HOLDER

18070-008

1
Out of stock

92009

SCREW,6X12

92009-1309

1
Out of stock

92015

NUT,6MM

92015-1365

1

$3.97

In stock

92022

1

$3.13

In stock

92022A

WASHER,TOOTHED,6MM

92022-1548

1
Out of stock
