1996 Kawasaki KE100 Crankshaft/piston Diagram

← All diagrams

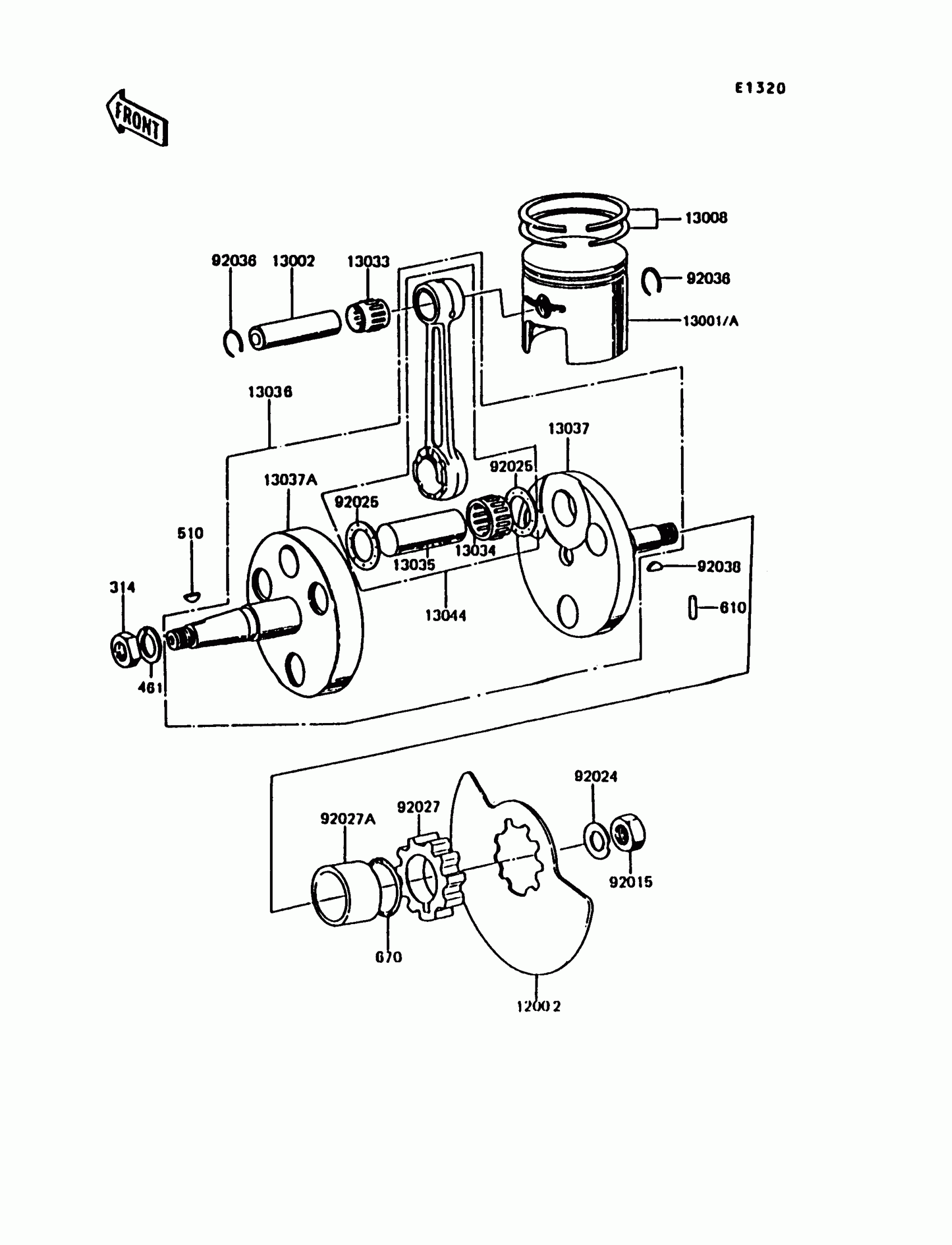

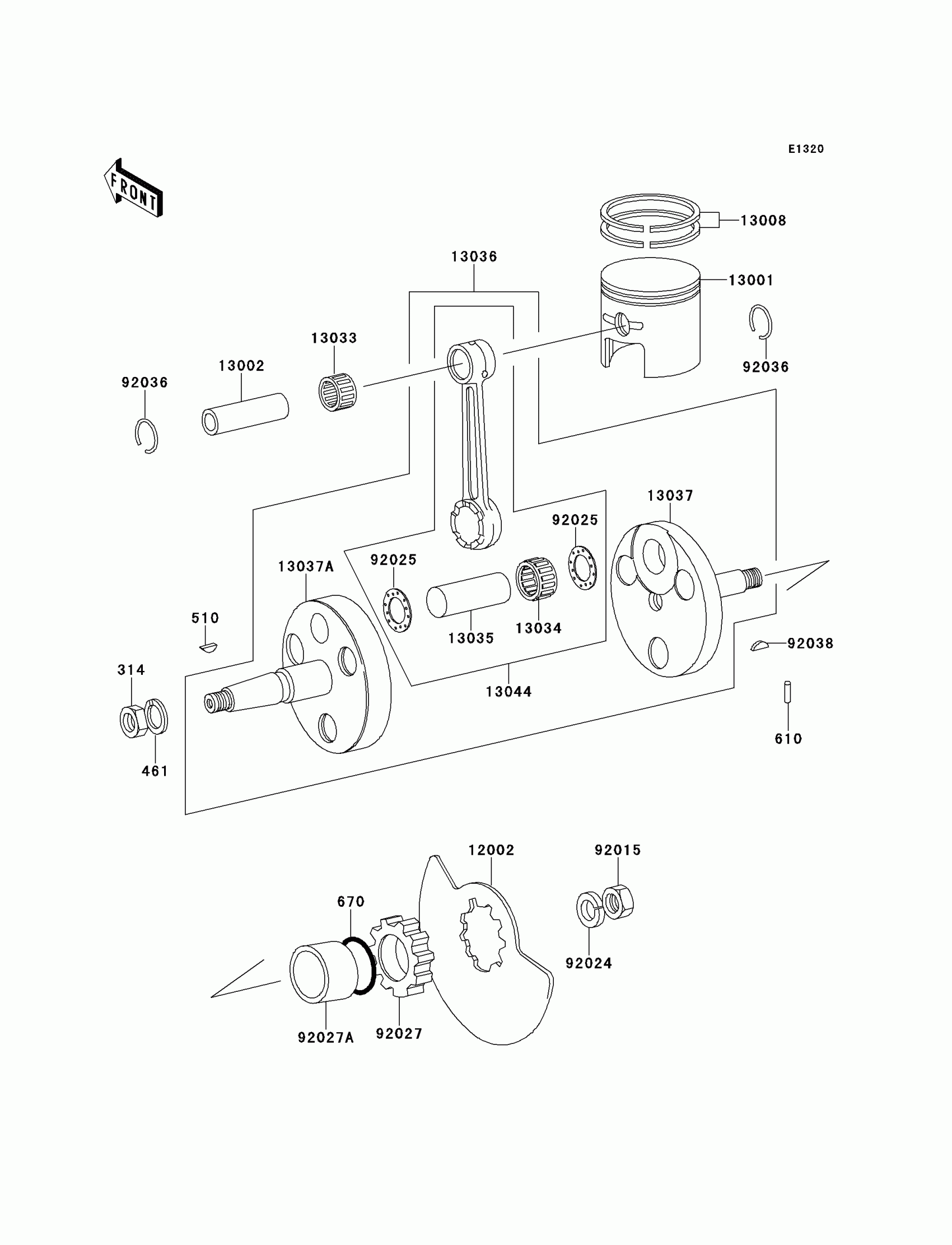

Find the part on the Crankshaft/piston diagram for your 1996 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KE100 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

314

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

461

1

$0.73

In stock

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock

610

ROLLER,4X10

610A0410

1

$3.43

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock

12002

VALVE-ROTARY

12002-030

1

$20.12

In stock

13001A

PISTON-ENGINE,STD

13001-1457

1
Out of stock

13002

PIN-PISTON

13002-003

1

$12.73

In stock

13008

RING-SET-PISTON,STD

13008-5009

1
Out of stock

13033

1

$24.37

In stock

13034

1

$32.66

In stock

13035

PIN-CRANK

13035-025

1
Out of stock

13036

CRANKSHAFT-COMP

13036-043

1

$417.10

In stock

13037

CRANKSHAFT,RH

13037-1135

1
Out of stock

13037A

CRANKSHAFT,LH

13037-1136

1
Out of stock

13044

SET-CONNECTING ROD

13044-5015

1

$176.57

In stock

92015

NUT,12MM

92015-006

1
Out of stock

92024

WASHER,CLAW,12.5X25X0.8

92024-003

1
Out of stock

92025

SHIM,T=1.0

92025-047

1
Out of stock

92027

COLLAR,ROTARY VALVE

92027-1245

1

$25.47

In stock

92027A

COLLAR,20X25X9.5

92027-285

1

$9.51

In stock

92036

1

$0.64

In stock

92038

KEY,WOODRUFF

92038-003

1

$4.23

In stock
