1996 Kawasaki KE100 Engine Cover Diagram

← All diagrams

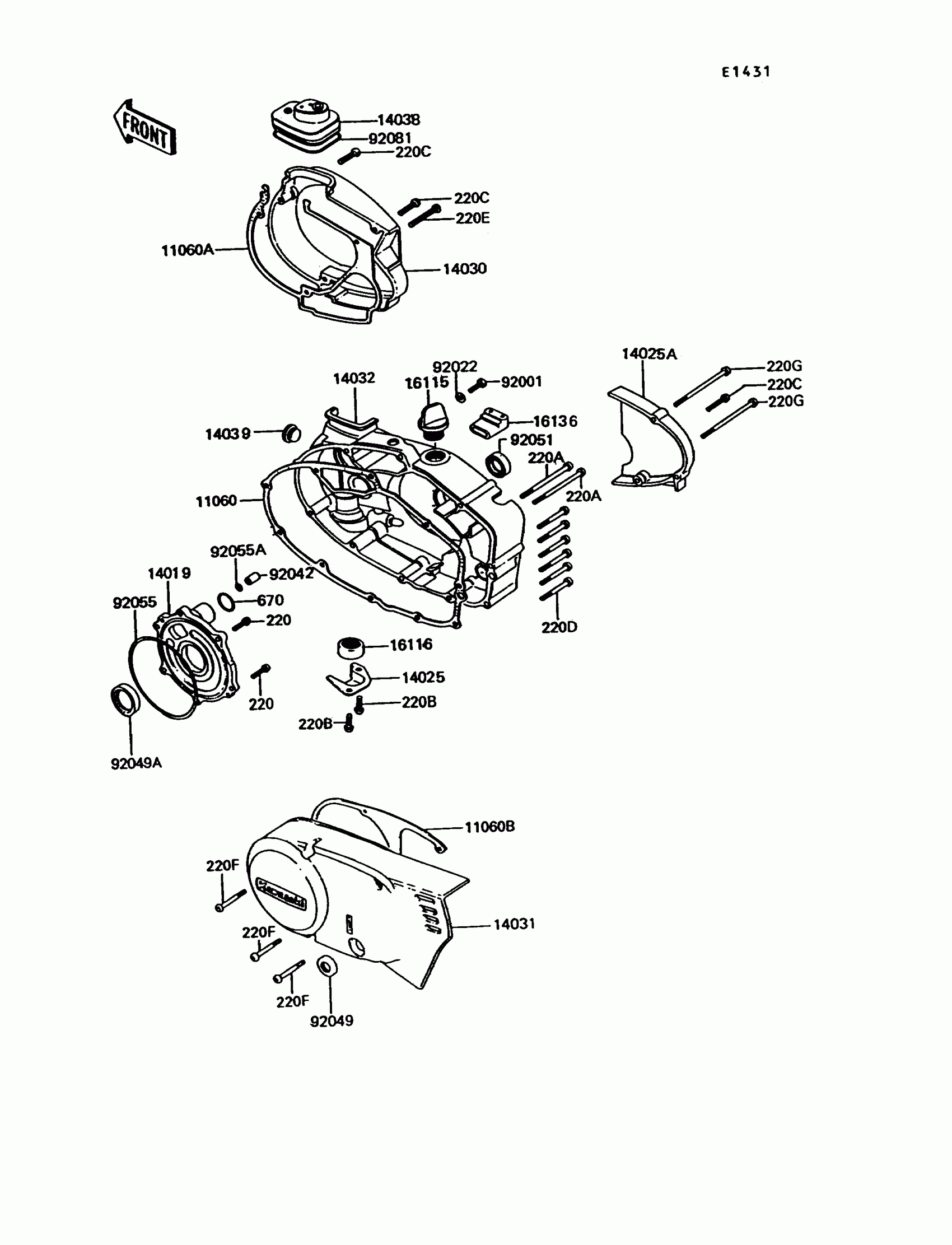

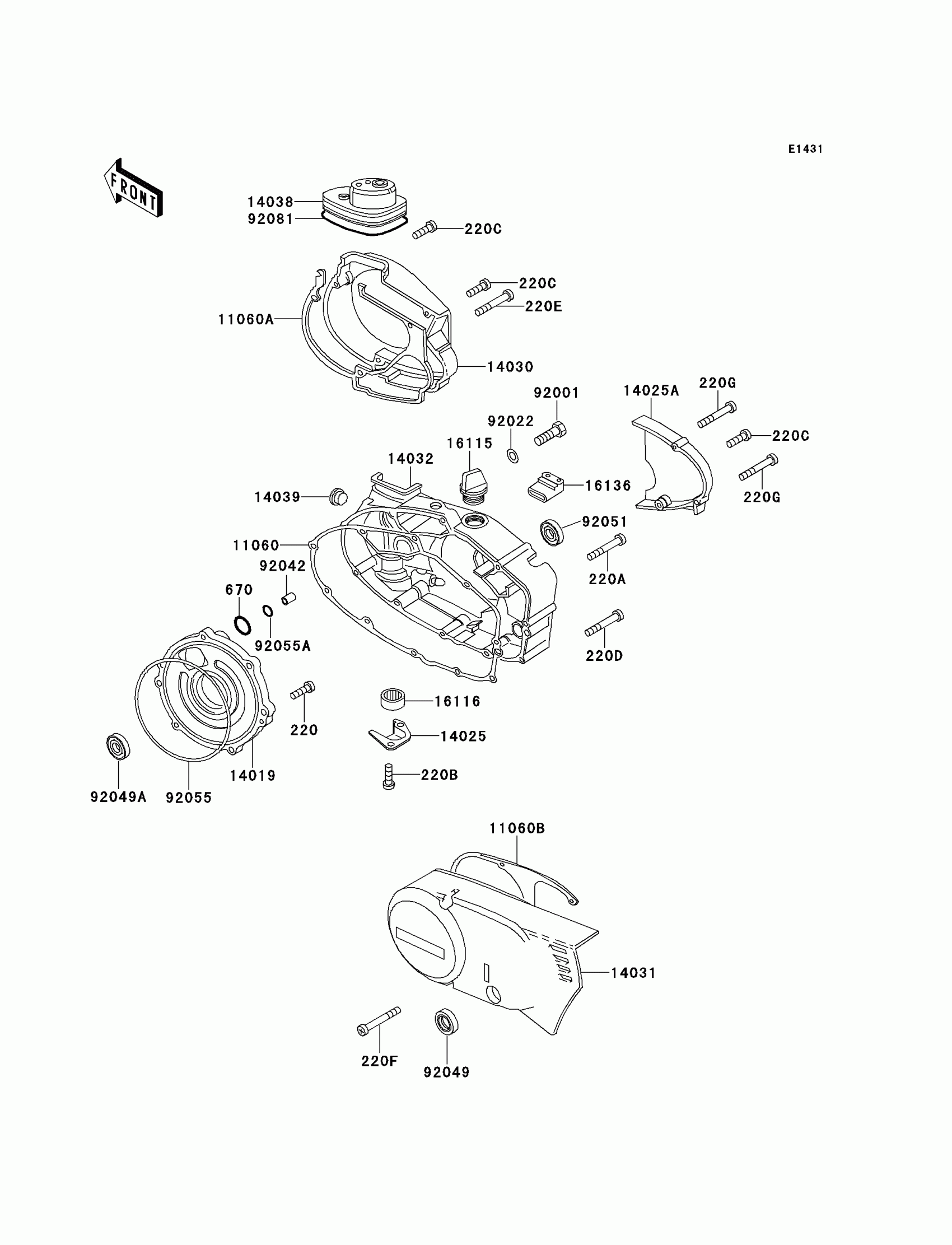

Find the part on the Engine Cover diagram for your 1996 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KE100 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$4.61

In stock

220A

1

$1.54

In stock

220B

SCREW-PAN-CROS

220X0612

1
Out of stock

220C

SCREW-PAN-CROS

220X0620

1

$4.10

In stock

220D

SCREW-PAN-CROS

220X0630

1
Out of stock

220E

SCREW-PAN-CROS

220X0635

1
Out of stock

220F

SCREW-PAN-CROS

220X0645

1

$3.85

In stock

220G

SCREW-PAN-CROS

220X0675

1
Out of stock

670

O RING,26MM

670B3026

1

$4.06

In stock

11060

GASKET,CLUTCH COVER

11060-1198

1

$25.87

In stock

11060A

1

$26.35

In stock

11060B

1

$21.69

In stock

14019

COVER,ROTARY DISC VALVE

14019-056

1
Out of stock

14025

COVER,DRAIN PLUG

14025-1137

1
Out of stock

14025A

COVER,OIL PUMP

14025-1185

1
Out of stock

14030

COVER-CARBURETOR

14030-1011

1
Out of stock

14031

COVER-GENERATOR

14031-1043

1
Out of stock

14032

COVER-CLUTCH

14032-1096

1
Out of stock

14038

BOOT,CARBURETOR

14038-035

1
Out of stock

14039

CAP,RUBBER

14039-001

1

$3.42

In stock

16115

CAP-OIL FILLER

16115-018

1

$8.38

In stock

16116

PLUG,25X12

16116-006

1

$13.02

In stock

16136

GROMMET,OVERFLOW PIPE

16136-007

1
Out of stock

92001

BOLT,6X14

92001-1935

1
Out of stock

92022

1

$3.13

In stock

92042

PIN,DOWEL,8X16

92042-017

1

$5.10

In stock

92049

SEAL-OIL,SB12205

92049-004

1
Out of stock

92049A

SEAL-OIL

92049-1250

1
Out of stock

92051

SEAL-OIL,TB16267

92051-003

1
Out of stock

92055

RING-O,100MM

92055-010

1

$7.95

In stock

92055A

RING-O,7.8X3.5

92055-029

1

$3.65

In stock

92081

SPRING COIL

92081-047

1

$8.95

In stock
