1986 Kawasaki KE100 Meters Diagram

← All diagrams

Find the part on the Meters diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

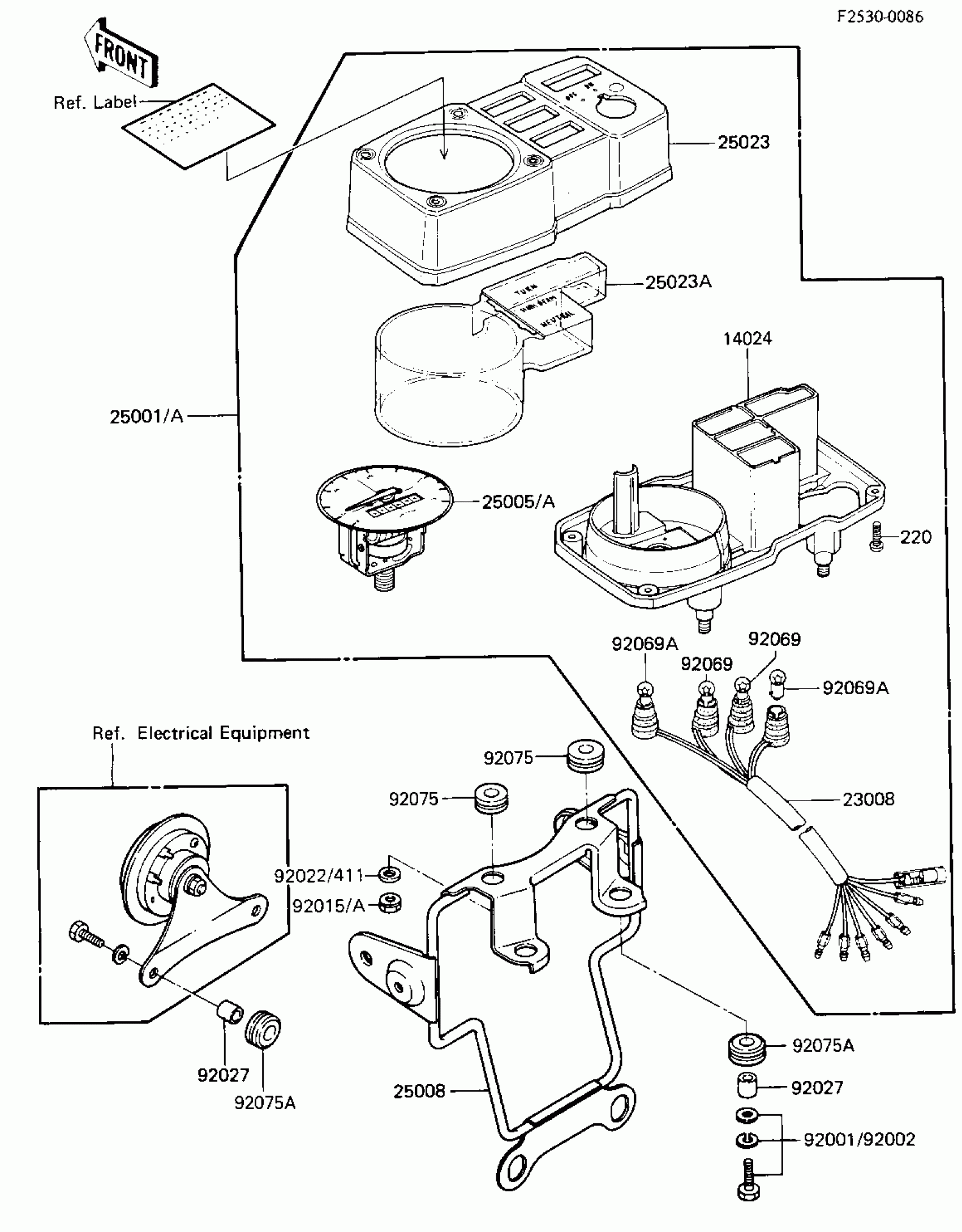

1986 Kawasaki KE100 Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER,LWR

14025-1870

1

$90.72

In stock

23008

SOCKET-ASSY,METER

23008-1110

1

$54.62

In stock

25001

METER-ASSY,KPH (Canada)

25001-1247

1
Out of stock

25001A

METER-ASSY,MPH

25001-1267

1

$590.94

In stock

25005

SPEEDOMETER,MPH

25005-1134

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1136

1
Out of stock

25008

BRACKET-METER

25008-1042

1
Out of stock

25023

1

$62.12

In stock

25023A

1

$60.87

In stock

92002

BOLT,6X25

92002-1137

1

$3.49

In stock

92015

NUT,6MM

92015-1393

1

$5.98

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,6V 1.7W

92069-024

1

$3.80

In stock

92069A

BULB,6V 3W,CLEAR

92069-053

1

$3.33

In stock

92075

DAMPER

92075-1337

1

$3.25

In stock

92075A

1

$3.72

In stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock
