1986 Kawasaki KE100 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

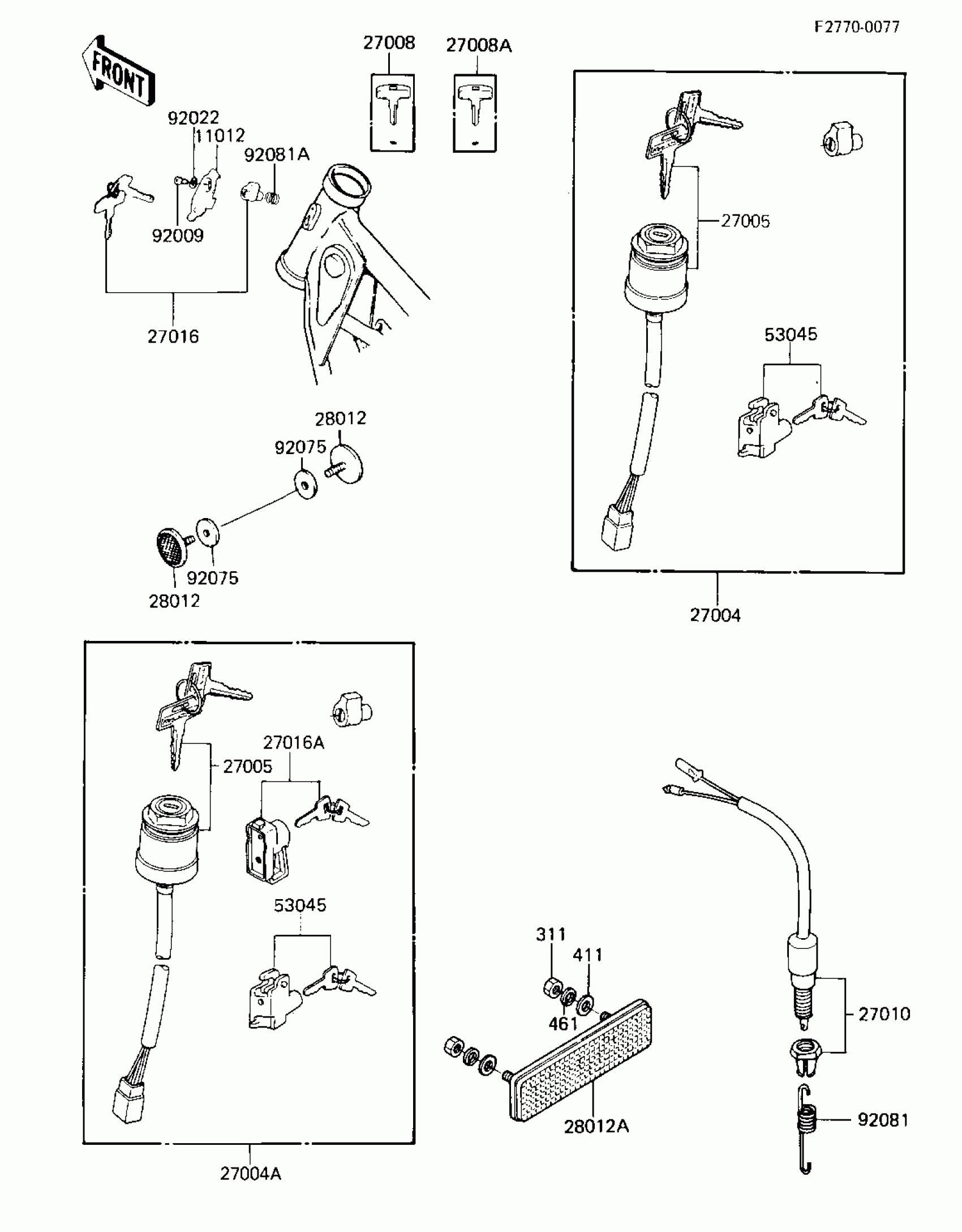

1986 Kawasaki KE100 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING LOCK

11012-1134

1

$5.95

In stock

27004A

SWITCH-ASSY

27004-5276

1
Out of stock

27005

1

$74.90

In stock

27008

KEY-LOCK,BLANK

27008-1024

1

$20.31

In stock

27008A

KEY-LOCK,BLANK

27008-1025

1

$20.31

In stock

27010

SWITCH,BRAKE LAMP

27010-025

1

$27.60

In stock

27016

LOCK-ASSY,STEERING

27016-042

1

$46.56

In stock

27016A

LOCK-ASSY,HELMET

27016-5098

1
Out of stock

28012

1

$21.56

In stock

28012A

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

53045

HOOK-ASSY,SEAT

53045-014

1
Out of stock

92009

SCREW,3.51MM

92008-007

1
Out of stock

92022

WASHER,WAVE

92097-003

1

$3.57

In stock

92075

DAMPER,REFLECTOR

92094-011

1

$4.08

In stock

92081

1

$6.75

In stock

92081A

SPRING,STEERING LOCK

27032-001

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock

411

WASHER-PLAIN,5MM

411B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
