1981 Kawasaki KE100 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1981 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

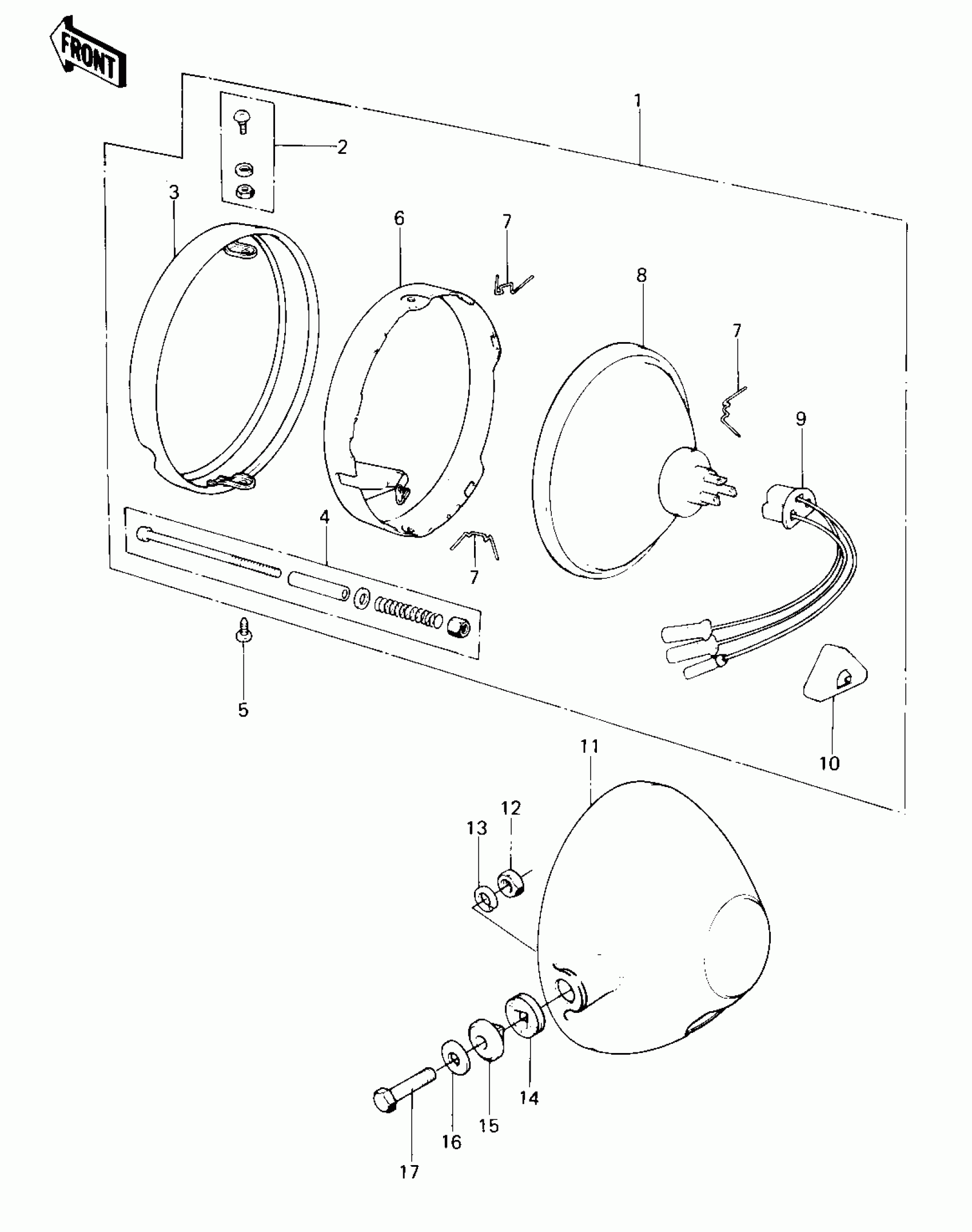

1981 Kawasaki KE100 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP UNIT,HEAD

23003-024

1
Out of stock

2

1

$5.46

In stock

3

RIM,HEAD LAMP

23006-042

1

$62.24

In stock

4

SCREW ASSY,FOCUS AJST

23013-5001

1
Out of stock

4

SCREW ASSY,FOCUS AJST

23013-5001

1
Out of stock

5

1

$0.51

In stock

6

1

$39.81

In stock

7

1

$4.78

In stock

8

LENS-COMP,"4020" MARK

23007-055

1
Out of stock

9

1

$20.90

In stock

9

1

$20.90

In stock

10

1

$7.92

In stock

11

BODY,HEAD LAMP,BLACK

23005-049-21

1

$80.51

In stock

12

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

13

WASHER SPRING 10MM

461F1000

1
Out of stock

14

DAMPER RUBBER

23066-011

1
Out of stock

15

COLLAR

23052-005

1

$14.36

In stock

16

1

$4.25

In stock

17

BOLT,HEX HEAD,10X30

92007-041

1
Out of stock

17

BOLT HEX HEAD 10X28

113N1028

1
Out of stock
