1986 Kawasaki KE100 Ignition Coil Diagram

← All diagrams

Find the part on the Ignition Coil diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

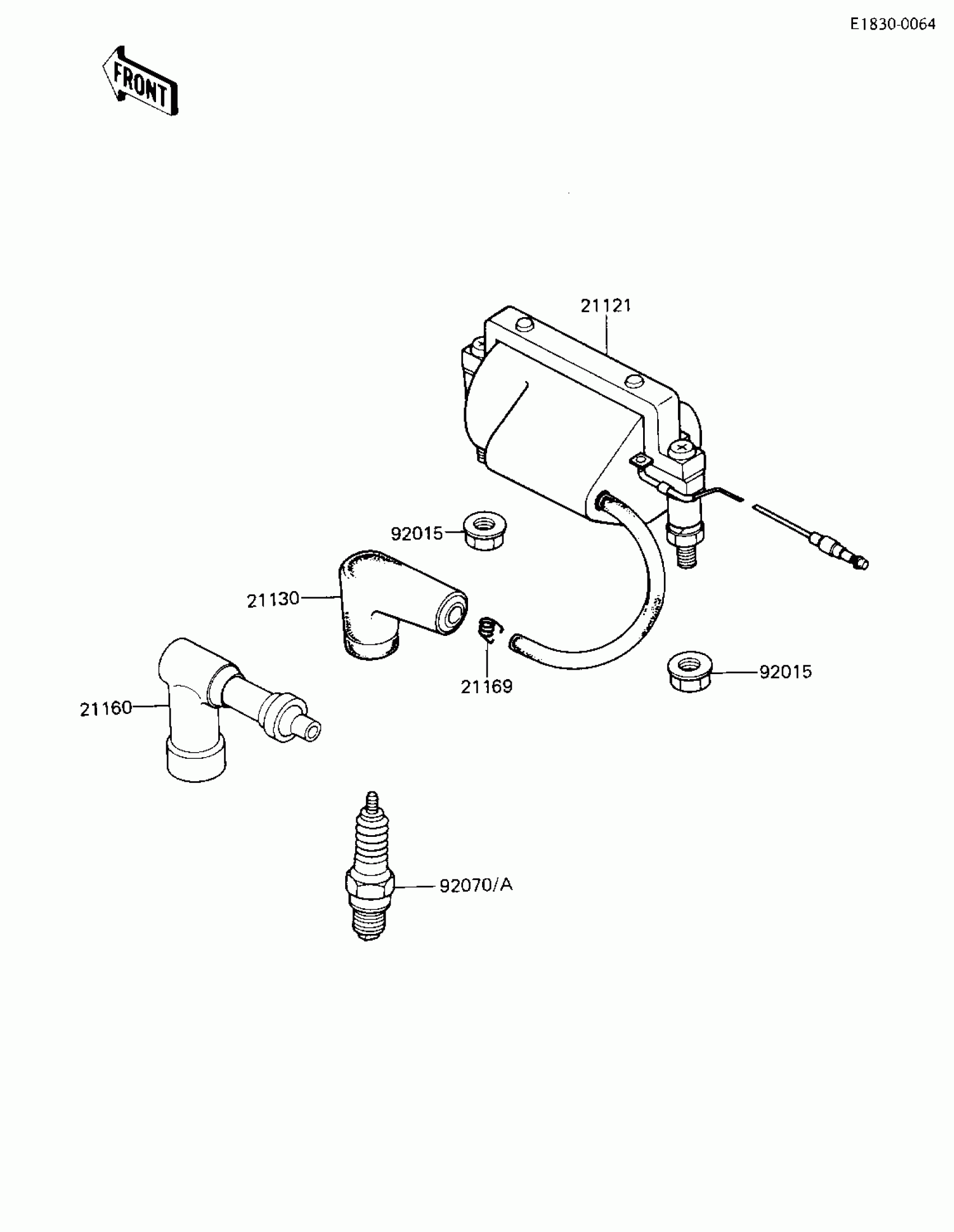

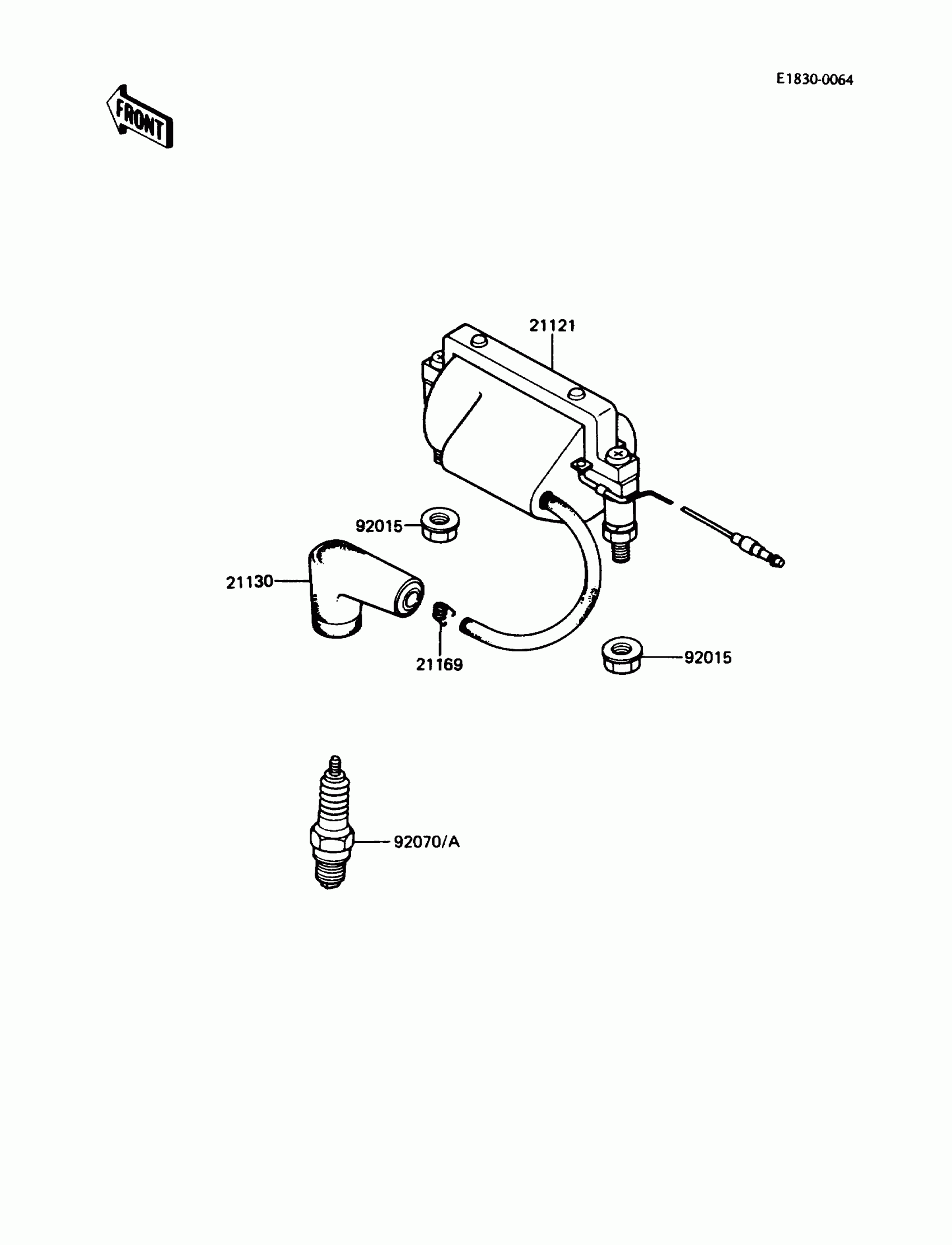

1986 Kawasaki KE100 Ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL,IGNITION

21121-1047

1
Out of stock

21130

CAP-SPARK PLUG

21130-009

1

$20.48

In stock

21160

CAP-ASSY-PLUG

21160-005

1

$52.69

In stock

21169

1

$1.44

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92070

1

$2.92

In stock

92070S

SPARK PLUG B9ES

B9ES

1
Out of stock
