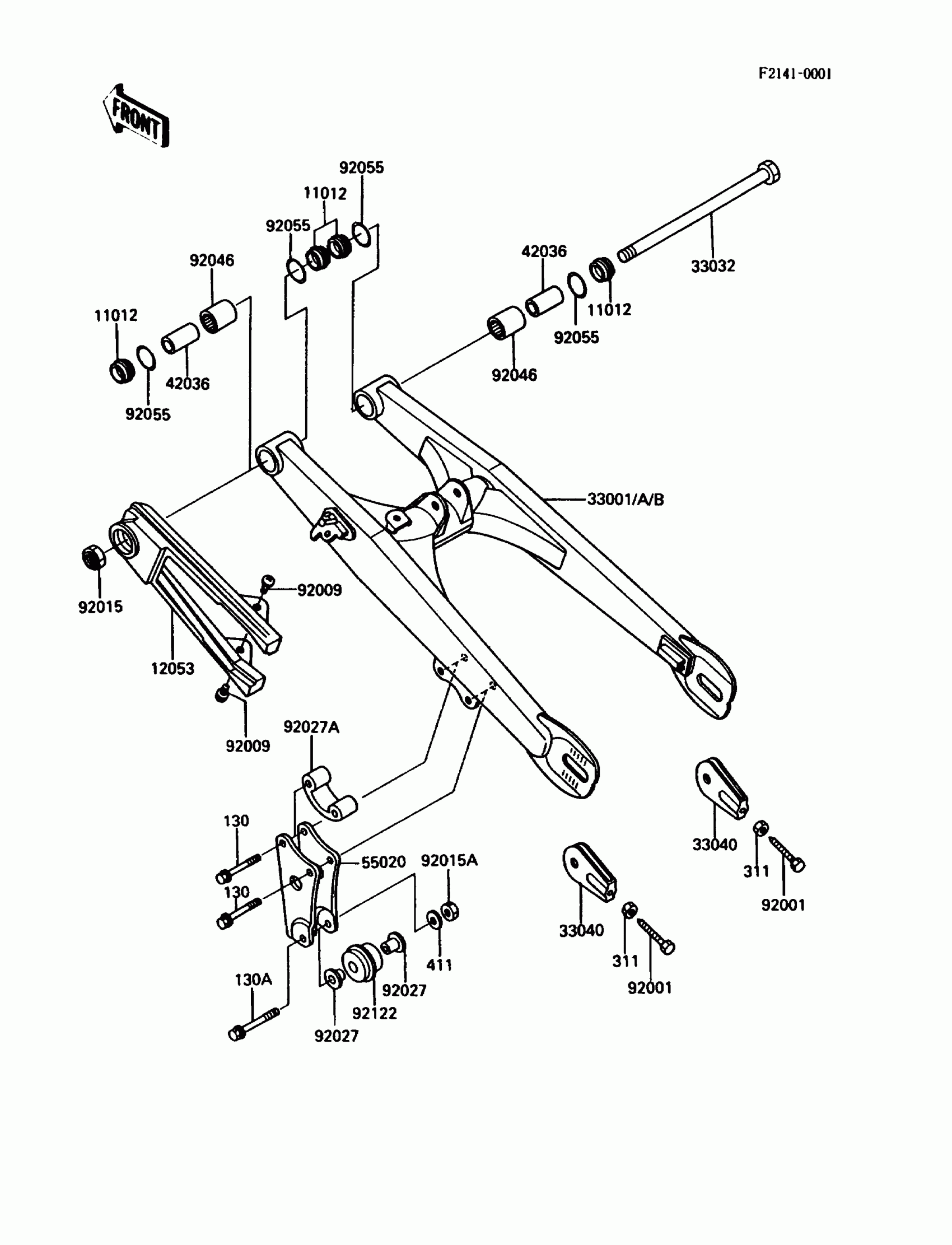

Find the part on the Swingarm diagram for your 1988 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX80 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1263

1

$13.08

In stock

12053

GUIDE-CHAIN,FR

12053-1074

1
Out of stock

33001B

1

$138.52

In stock

33032

SHAFT-SWING ARM,PIVOT

33032-1031

1
Out of stock

33040

ADJUSTER-CHAIN

33040-1055

1
Out of stock

42036

1

$10.25

In stock

55020

GUARD,CHAIN,RR

55020-1163

1

$34.24

In stock

92001

BOLT,6X39

92001-1463

1

$3.72

In stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,LOCK,12MM

92015-1063

1
Out of stock

92015A

NUT,LOCK 6MM

92017-014

1

$5.98

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92027A

COLLAR,CHAIN GUIDE

92027-1495

1
Out of stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92055

RING-O,SWING ARM

92055-1240

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1030

1

$35.15

In stock

130

BOLT-FLANGED,6X45

130G0645

1
Out of stock

130A

BOLT-FLANGED,6X50

130G0650

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock
