1983 Kawasaki KDX80 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1983 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

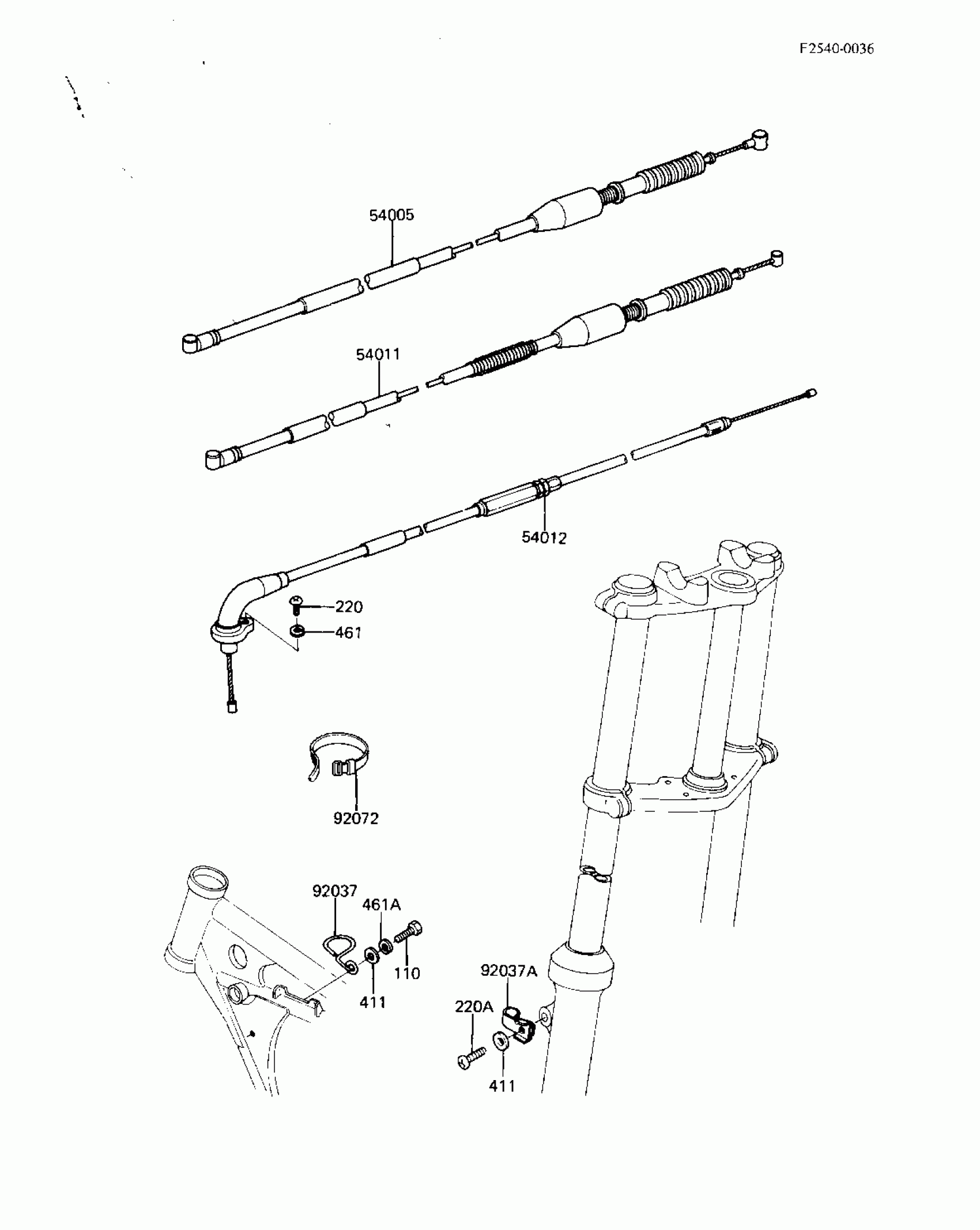

1983 Kawasaki KDX80 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54005

CABLE,BRAKE,FRONT

54005-1013

1
Out of stock

54011

CABLE-CLUTCH

54011-1035

1
Out of stock

54012

CABLE,THROTTLE

54012-1022

1
Out of stock

92037

CLAMP,CABLE

92037-092

1

$7.72

In stock

92037A

CLAMP,CABLE

92037-1257

1
Out of stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

220A

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
