1981 Kawasaki KDX80 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1981 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

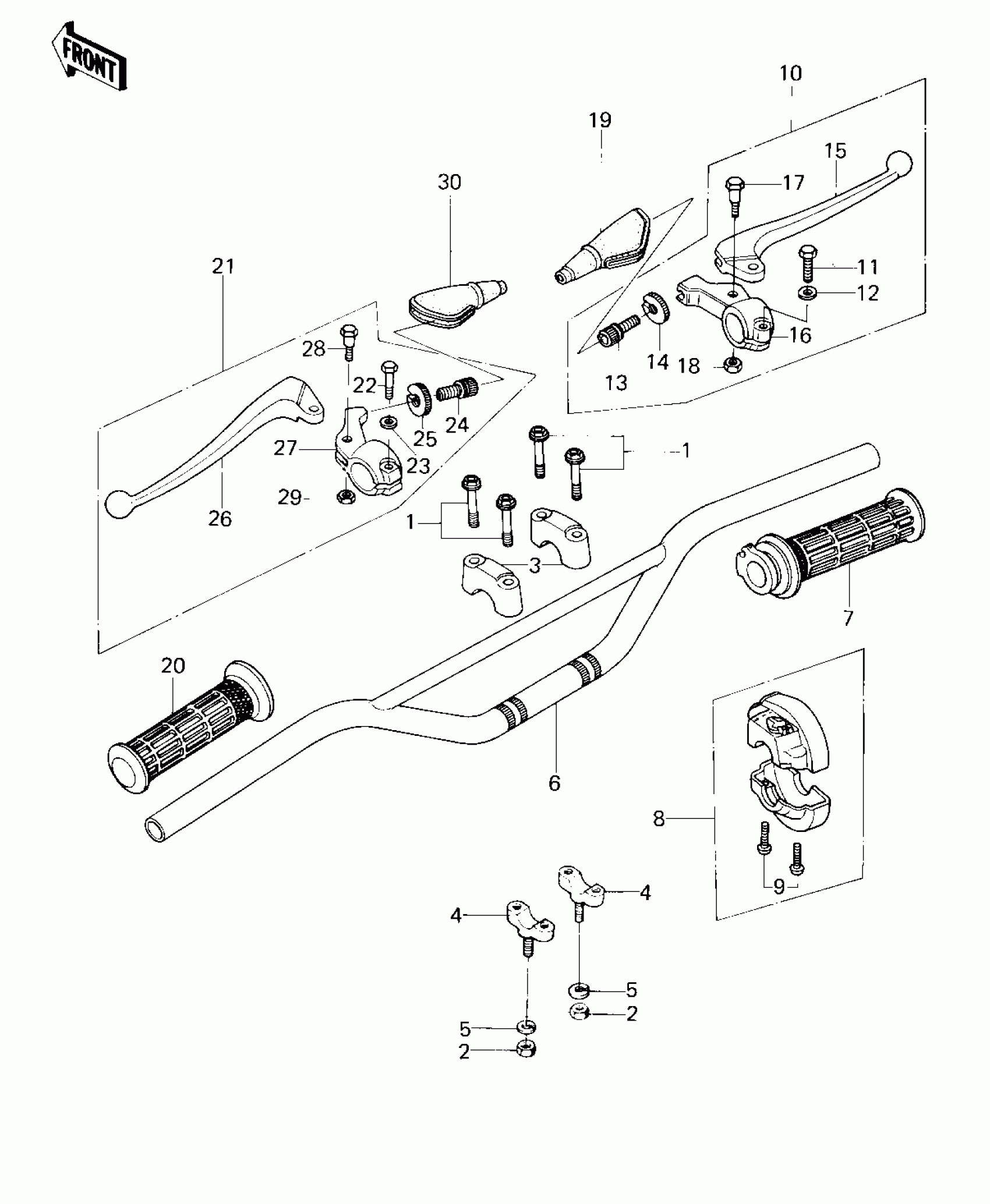

1981 Kawasaki KDX80 Handlebar Diagram

#

Description
Price
Status
Order Qty

1

BOLT-FLANGED,8X35

130G0835

Out of stock

2

NUT-HEX-FINE,10MM

314B1000

Out of stock

3

HOLDER-HANDLE,UPP

46012-008

$34.49

In stock

4

HOLDER,HANDLEBAR

46012-1002

$16.53

In stock

5

WASHER SPRING 10MM

461F1000

Out of stock

6

$91.59

In stock

7

GRIP-ASSY,THROTTLE

46019-1005

$34.15

In stock

8

HOUSING-ASSY-CONTROL,RH

46091-1041

Out of stock

9

SCREW-PAN-CROS

220B0518

Out of stock

10

LEVER ASSY,FRNT BRAKE

46021-025

Out of stock

11

BOLT HEX HEAD 6X25

110N0625

Out of stock

12

WASHER,PLAIN,6MM

410D0600

Out of stock

13

$12.92

In stock

14

$7.04

In stock

15

$22.90

In stock

16

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-011-21

Out of stock

17

BOLT,5X22

92007-046

Out of stock

18

NUT,LOCK,5MM

92019-014

$4.00

In stock

19

BOOT,LEVER HOLDER

49006-1017

$14.71

In stock

20

GRIP,LH

46075-1004

$16.22

In stock

21

LEVER ASSY,CLUTCH

46076-045

$42.46

In stock

22

BOLT HEX HEAD 6X25

110N0625

Out of stock

23

WASHER,PLAIN,6MM

410D0600

Out of stock

24

$12.92

In stock

25

$7.04

In stock

26

LEVER-GRIP,CLUTCH

46092-015

$19.69

In stock

27

$38.47

In stock

28

BOLT,5X22

92007-046

Out of stock

29

NUT,LOCK,5MM

92019-014

$4.00

In stock

30

BOOT,LEVER HOLDER

49006-1017

$14.71

In stock
