1981 Kawasaki KDX80 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

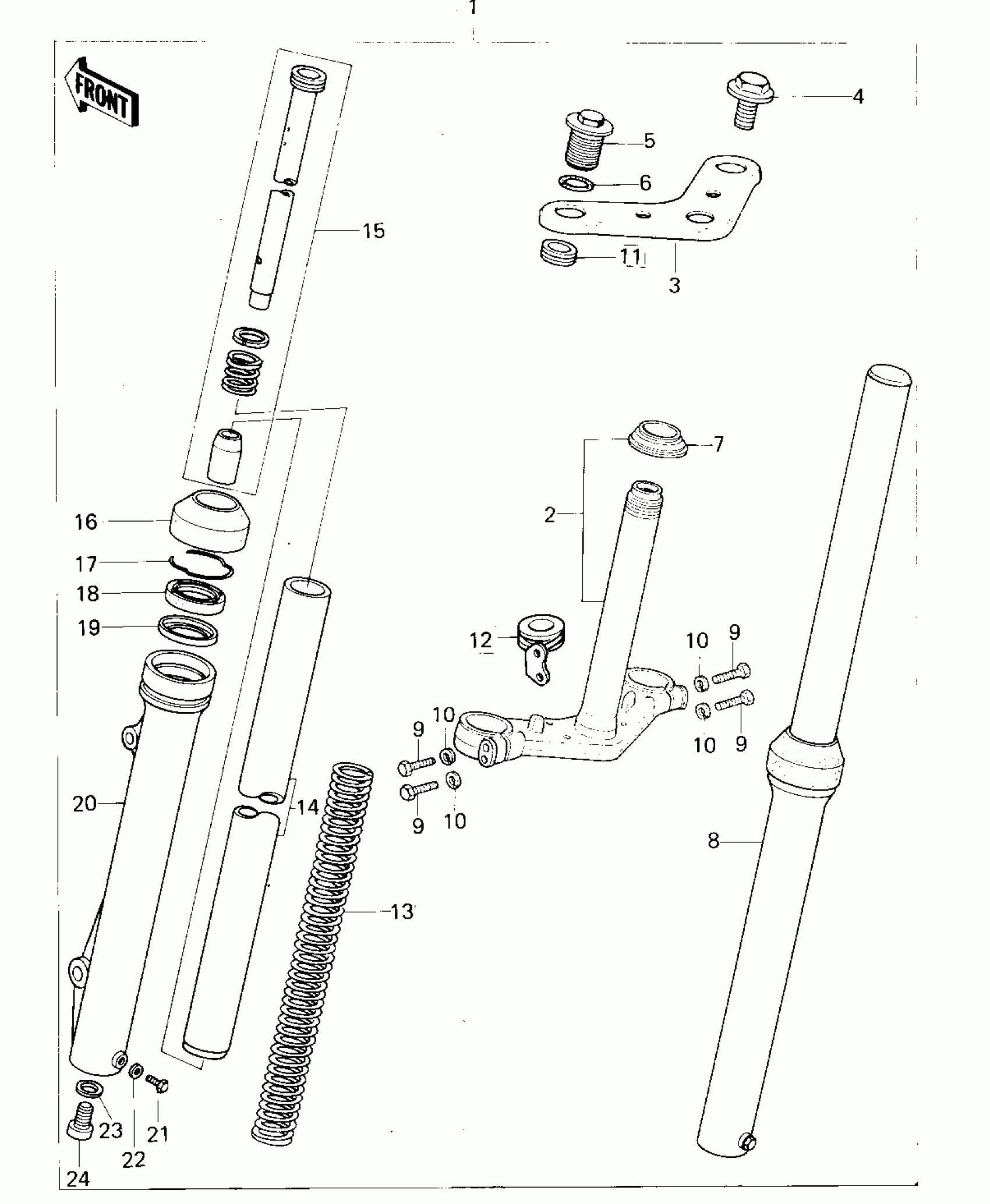

1981 Kawasaki KDX80 Front Fork Diagram

#

Description
Price
Status
Order Qty

1

FORK-FRONT

44001-1124

$662.11

In stock

2

STEM,STEERING

44037-1046

$97.27

In stock

3

HEAD,STEERING STEM

44039-1008

$116.38

In stock

4

BOLT,STEERING STEM

92001-1318

$22.71

In stock

5

BOLT,FORK TOP

44029-1017

$16.53

In stock

6

RING-O,22.1X2.4

92055-1081

$3.72

In stock

7

RACE,STEERING STEM BEARING

92047-010

Out of stock

8

TUBE,RH,FORK OUTER

44006-1040

$103.85

In stock

9

BOLT,8X40

92001-1063

$7.64

In stock

10

WASHER SPRING 8MM

461F0800

Out of stock

11

BOLT,FORK INNER,TOP

44029-1018

$13.05

In stock

12

CLAMP,CABLE

92072-1039

Out of stock

13

$22.15

In stock

14

TUBE,FORK INNER

44013-1032

$122.20

In stock

15

CYLINDER-FORK

44022-1017

$32.64

In stock

16

$13.70

In stock

17

$4.14

In stock

18

SEAL-OIL,FORK OUTER TUBE

92049-1069

Out of stock

19

SPACER,FORK OUTER

92026-1041

$4.76

In stock

20

TUBE,LH,FORK OUTER

44005-1040

$108.73

In stock

21

BOLT HEX HEAD 6X8

110B0608

Out of stock

22

GASKET,DRAIN PLUG

44045-047

$7.42

In stock

23

$4.88

In stock

24

BOLT,FORK CYLINDER

44041-078

$9.56

In stock
