1988 Kawasaki KDX80 Rear Suspension Diagram

← All diagrams

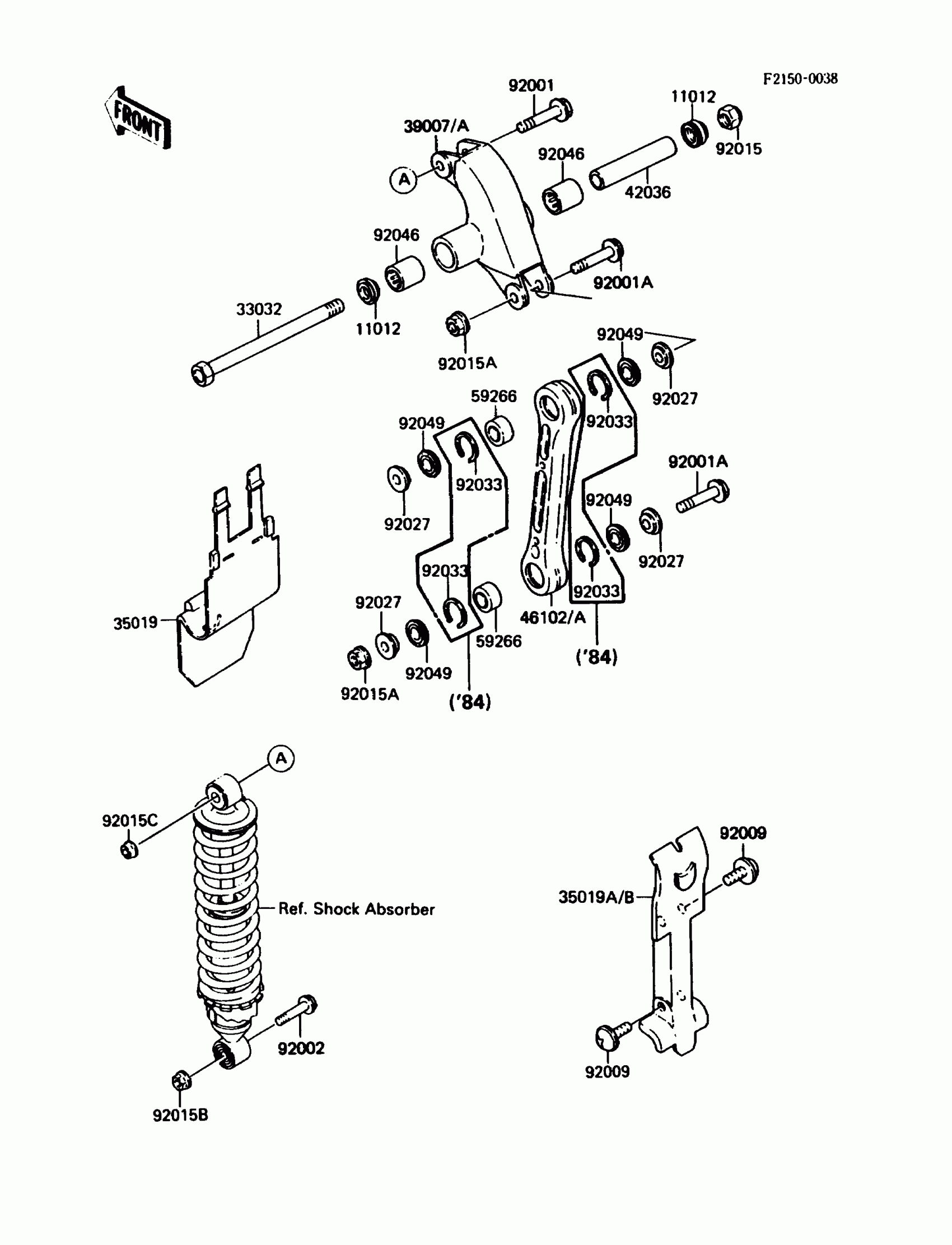

Find the part on the Rear Suspension diagram for your 1988 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX80 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1263

1

$13.08

In stock

33032

1

$23.92

In stock

35019

FLAP,ARM-SUSP

35019-1054

1
Out of stock

35019B

FLAP,ROD

35019-1139

1
Out of stock

39007A

ARM-SUSP,UNI-TRAK

39007-1063

1

$110.29

In stock

42036

1

$24.44

In stock

46102A

ROD,SUSPENSION

46102-1124

1

$131.97

In stock

59266

JOINT-BALL,ROD

59266-1012

1

$118.33

In stock

92001

BOLT,FLANGED,10X42

92001-1711

1

$5.58

In stock

92001A

BOLT,FLANGED,12X48

92001-1736

1
Out of stock

92002

BOLT,FLANGED,10X41

92002-1385

1

$9.10

In stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,LOCK,12MM

92015-1063

1
Out of stock

92015A

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92015B

1

$8.16

In stock

92015C

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92027

COLLAR,ROD

92027-1523

1
Out of stock

92046

BEARING-NEEDLE,ARM-SUSP

92046-1050

1
Out of stock

92049

SEAL-OIL,ROD

92049-1099

1
Out of stock
