1988 Kawasaki KDX80 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1988 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

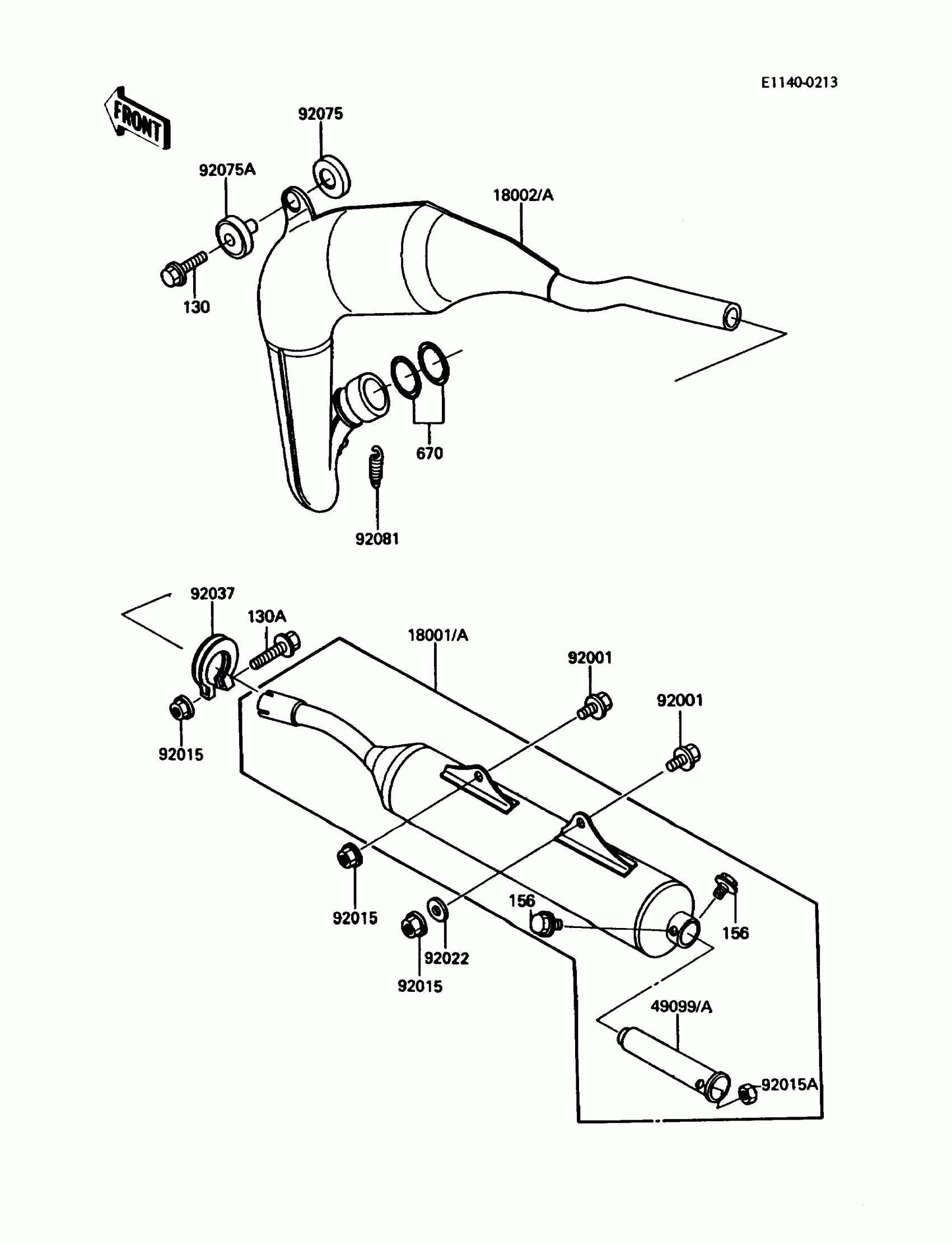

1988 Kawasaki KDX80 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

18001A

MUFFLER

18001-1636

1
Out of stock

18002A

BODY-COMP-MUFFLER

18002-1700

1

$166.54

In stock

49099A

BAFFLE-PIPE MUFFLER

49099-1226

1
Out of stock

92001

BOLT,6X14

92001-1926

1

$3.66

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92037

CLAMP,MUFFLER

92037-1466

1

$8.71

In stock

92075

DAMPER,9.3X28X7

92075-1571

1

$5.97

In stock

92075A

DAMPER,MUFFLER

92075-1572

1
Out of stock

92081

SPRING-CONNECTOR

18071-003

1

$9.11

In stock

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock

130A

BOLT-FLANGED,6X30

130G0630

1
Out of stock

156

BOLT-WP

156B0610

1
Out of stock

670

O RING,36MM

670E3036

1

$16.19

In stock
