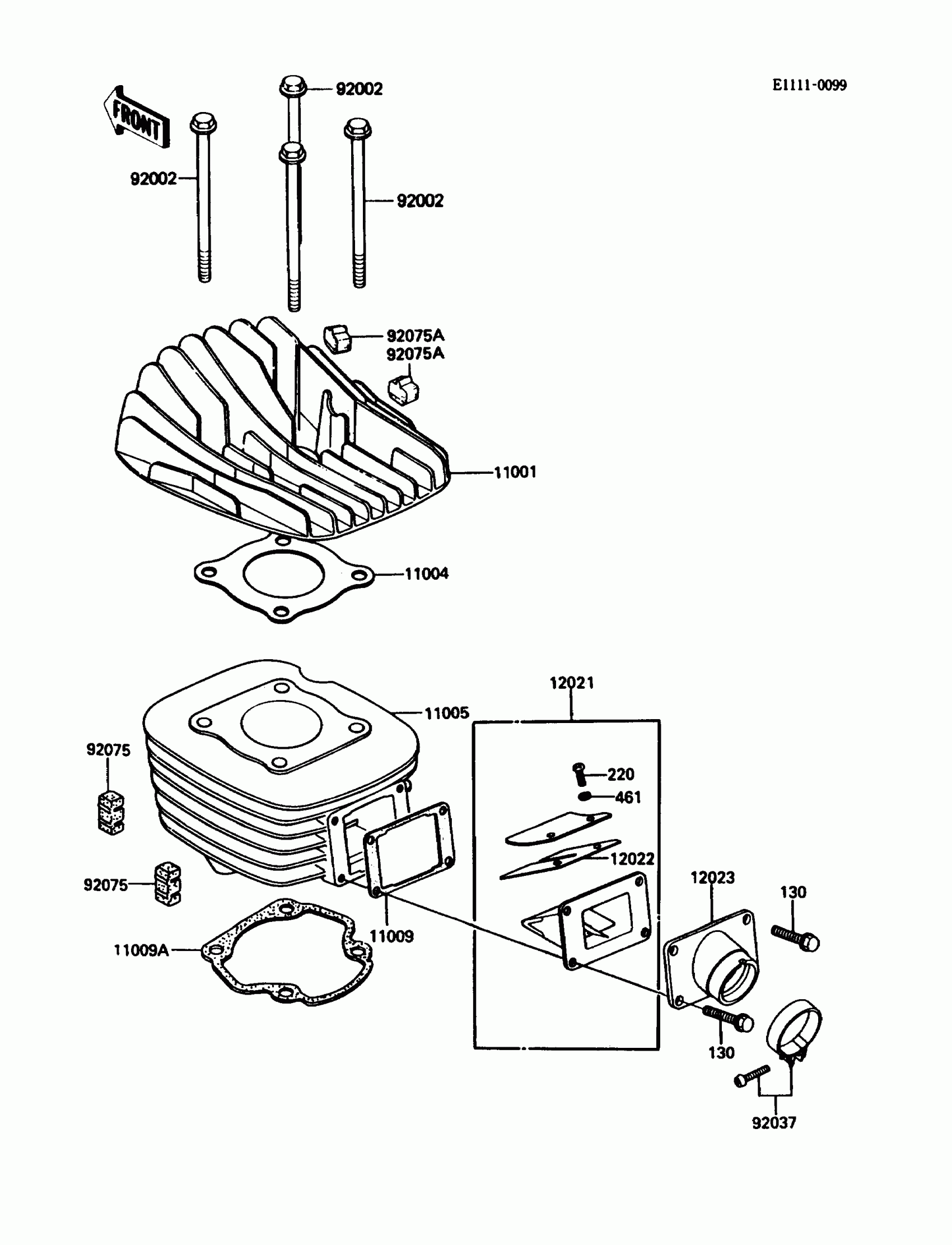

Kawasaki KDX80 Cylinder Head/Cylinder Diagram

#

Description

Price

11001

HEAD-CYLINDER

11001-1242

Unavailable

11004

GASKET-HEAD,CYLINDER

11004-1031

Unavailable

11005

CYLINDER-ENGINE,ELECTRO-FUSE

11005-1229

Unavailable

11009

GASKET,REED VALVE

11009-1109

Unavailable

11009A

GASKET,CYLINDER BASE

11009-1310

Unavailable

12021

VALVE-ASSY-REED

12021-1020

Unavailable

12022

VALVE-REED

12022-1011

Unavailable

12023

HOLDER-VALVE

12023-1014

Unavailable

92002

BOLT,8X120

92002-1332

$5.51

92037

CLAMP

92037-1305

$6.89

92075

DAMPER,CYLINDER

92075-1229

Unavailable

92075A

DAMPER

92075-304

Unavailable

130

BOLT-FLANGED,6X20

130G0620

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

461

WASHER SPRING 3MM

461F0300

Unavailable
