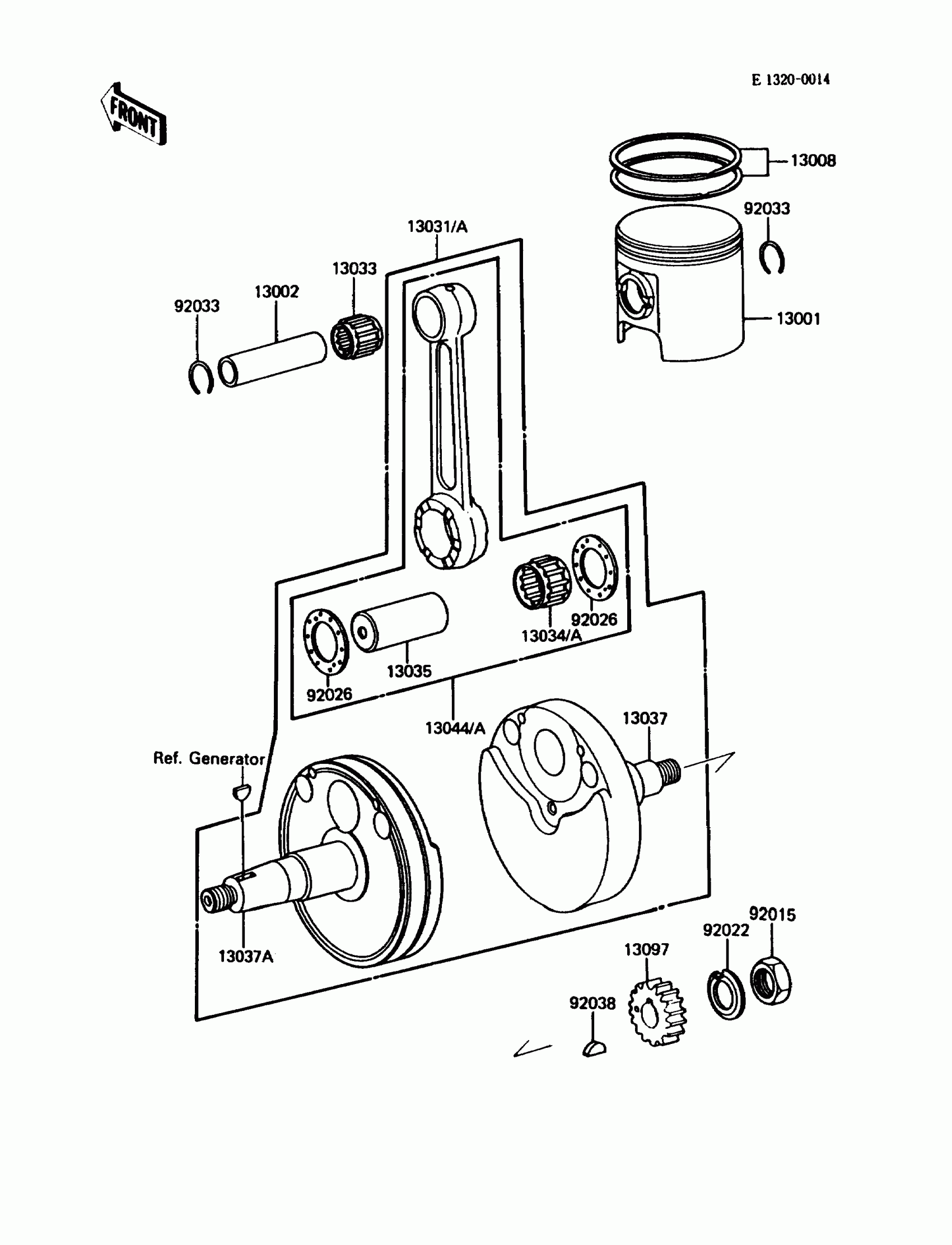

Find the part on the Crankshaft/piston diagram for your 1988 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX80 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-1184

1
Out of stock

13002

PIN-PISTON

13002-1024

1
Out of stock

13008

RING-SET-PISTON

13008-5052

1
Out of stock

13031A

CRANKSHAFT-COMP

13031-1206

1
Out of stock

13033

1

$37.53

In stock

13034A

BEARING-BIG END,H22X29X13.8

13034-1072

1
Out of stock

13035

PIN-CRANK

13035-1054

1
Out of stock

13037

CRANKSHAFT,RH

13037-1120

1
Out of stock

13037A

CRANKSHAFT,LH

13037-1205

1
Out of stock

13044A

SET-CONNECTING ROD

13044-5053

1
Out of stock

13097

1

$69.57

In stock

92015

NUT,12MM

92015-006

1
Out of stock

92022

WASHER,CLAW,12.5X25X0.8

92024-003

1
Out of stock

92026

SPACER,22.5X37X1.0

92026-011

1
Out of stock

92033

1

$0.64

In stock

92038

KEY,WOODRUFF

92038-003

1

$4.23

In stock
