1981 Kawasaki KDX80 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1981 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

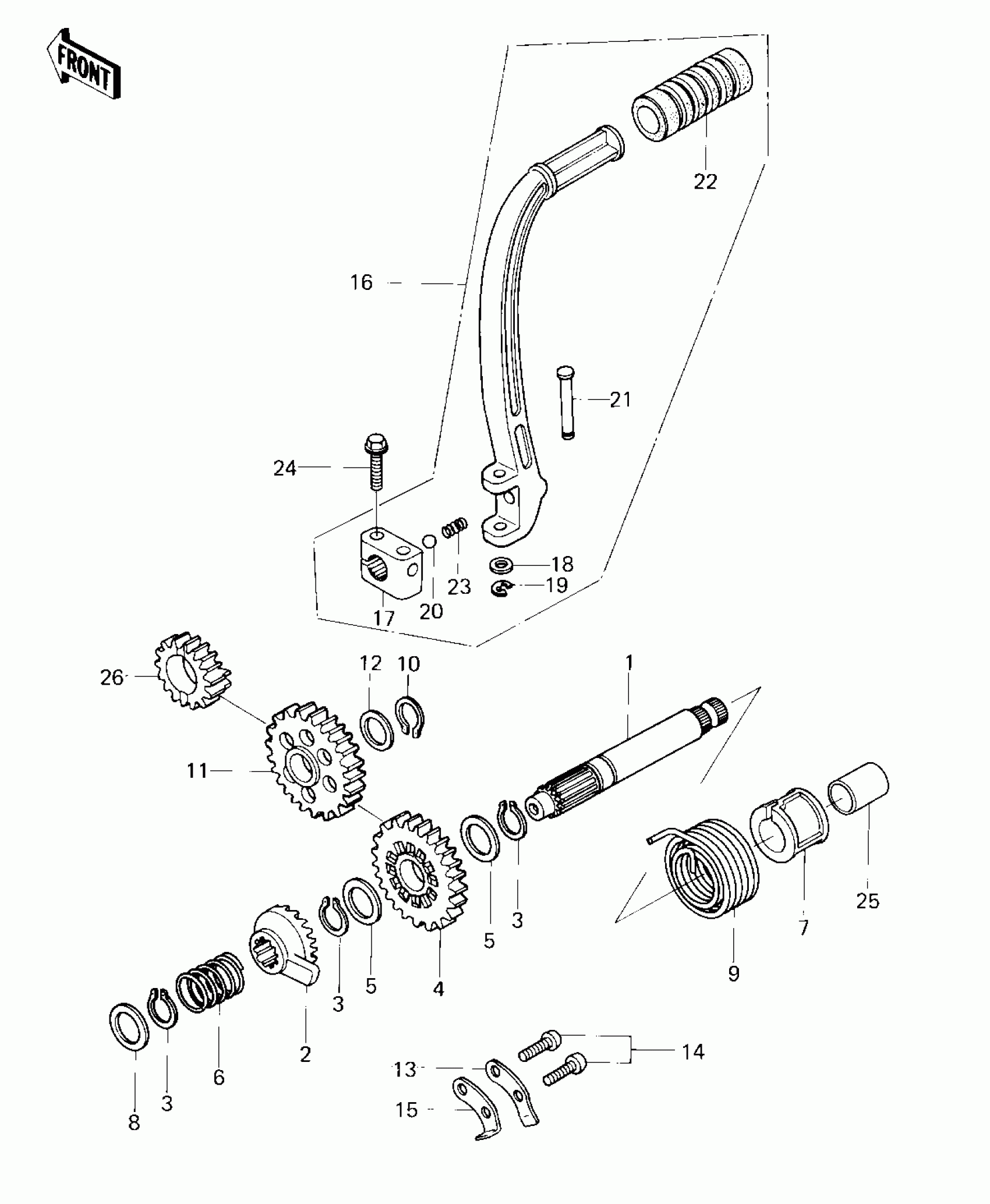

1981 Kawasaki KDX80 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

SHAFT,KICK

13066-1008

Out of stock

2

RATCHET

13078-1001

$60.70

In stock

3

$3.43

In stock

4

GEAR,KICK,31T

59051-1015

$36.90

In stock

5

WASHER,16.8X22X0.5

92022-315

Out of stock

6

SPRING,RATCHET

92081-122

$6.98

In stock

7

GUIDE,KICK

13070-1018

Out of stock

8

WASHER,12.3X20X0.5

92022-269

Out of stock

9

SPRING,KICK

92081-1108

$12.88

In stock

10

$1.85

In stock

11

GEAR,IDLE,31T

59051-1014

$47.10

In stock

12

SPACER,15X21X0.5

92026-1035

$2.78

In stock

13

GUIDE-KICK

13206-1002

Out of stock

14

SCREW-PAN-CROS,6X16

220B0616

Out of stock

15

STOPPER,KICKSTARTER

32085-1027

$8.80

In stock

16

PEDAL ASSY,KICK

13064-1010

Out of stock

17

BOSS,KICK PEDAL

13061-1021

Out of stock

18

$1.19

In stock

19

CIRCLIP 5MM

482K5000

Out of stock

20

BALL-STEEL,1/4

600A0800

$0.67

In stock

21

PIN,KICK PEDAL

92043-1050

Out of stock

22

DAMPER RUBB,GEAR CHNG

92075-1021

Out of stock

23

SPRING,KICK PEDAL

92081-020

$3.39

In stock

24

BOLT,FLANGED,6X22

92001-1352

$3.43

In stock

25

BOOT,KICK SHAFT

49006-1023

$2.56

In stock

26

$36.90

In stock
