1981 Kawasaki KDX80 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1981 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

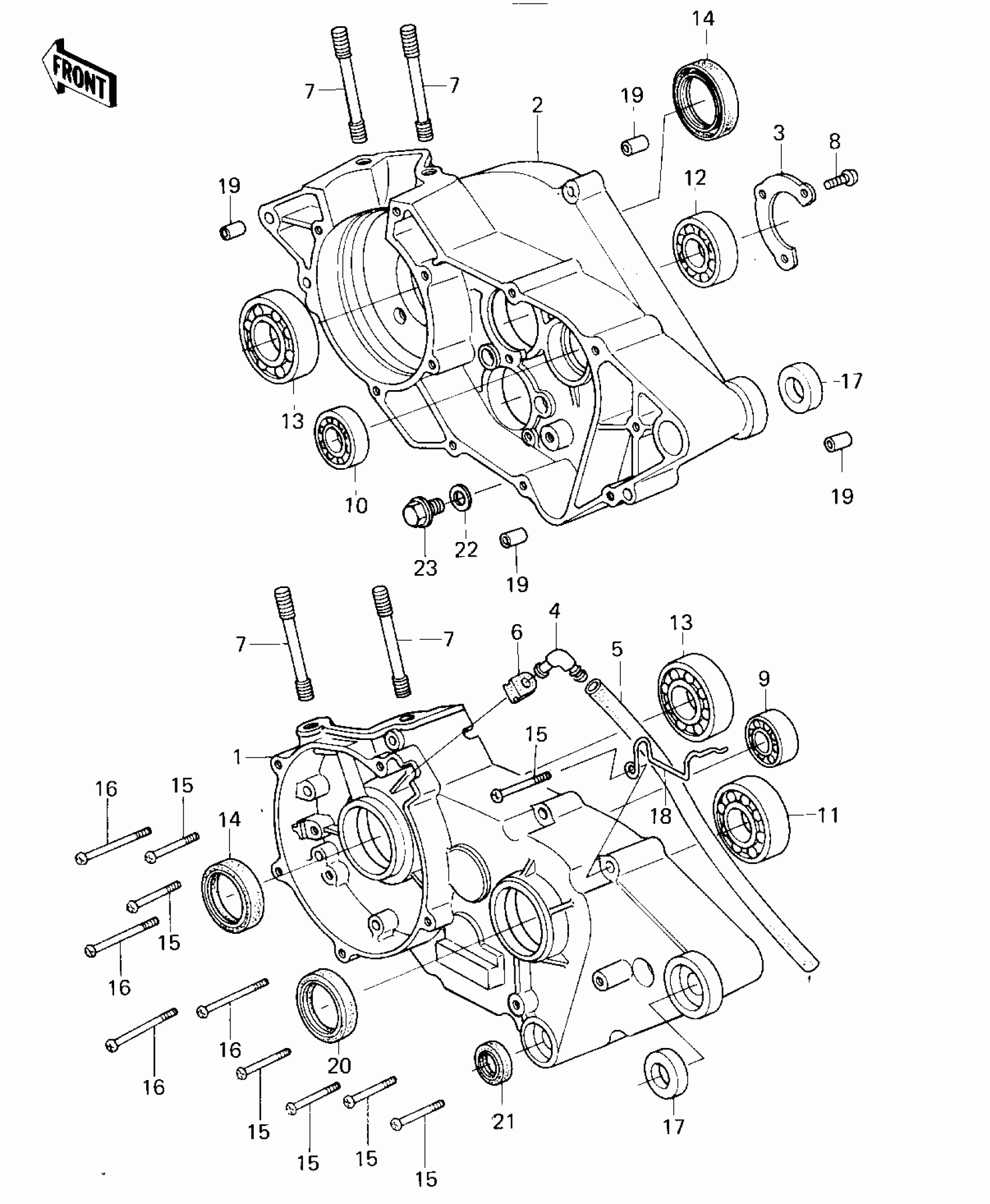

1981 Kawasaki KDX80 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

CRANKCASE,L.H

14002-1089

Out of stock

2

CRANKCASE,R.H

14002-1090

Out of stock

3

PLATE,POSITION,DRIVE

14014-1010

Out of stock

4

BREATHER ASSY

14069-1001

$22.77

In stock

5

TUBE,6X9X750

92059-1372

$14.65

In stock

6

GROMMET,BREATHER

92071-042

$3.39

In stock

7

STUD-8X110

172G08110

Out of stock

8

$1.32

In stock

9

$12.85

In stock

10

BEARING BALL #6002

601B6002

Out of stock

11

$9.84

In stock

12

$11.12

In stock

13

$15.38

In stock

14

SEAL-OIL

92049-1250

Out of stock

15

$1.44

In stock

16

$1.54

In stock

17

COLLAR,12.6X26X7

92027-1147

$8.25

In stock

18

CLAMP,TUBE

92037-1128

$7.08

In stock

19

PIN,DOWEL,6.3X8X14

92042-007

$4.51

In stock

20

SEAL-OIL,SC25376

92050-013

Out of stock

21

SEAL-OIL,TB13225.5

92051-005

Out of stock

22

GASKET,10.5X16X1

92065-058

$3.16

In stock

23

PLUG,DRAIN

92066-1241

$5.39

In stock
