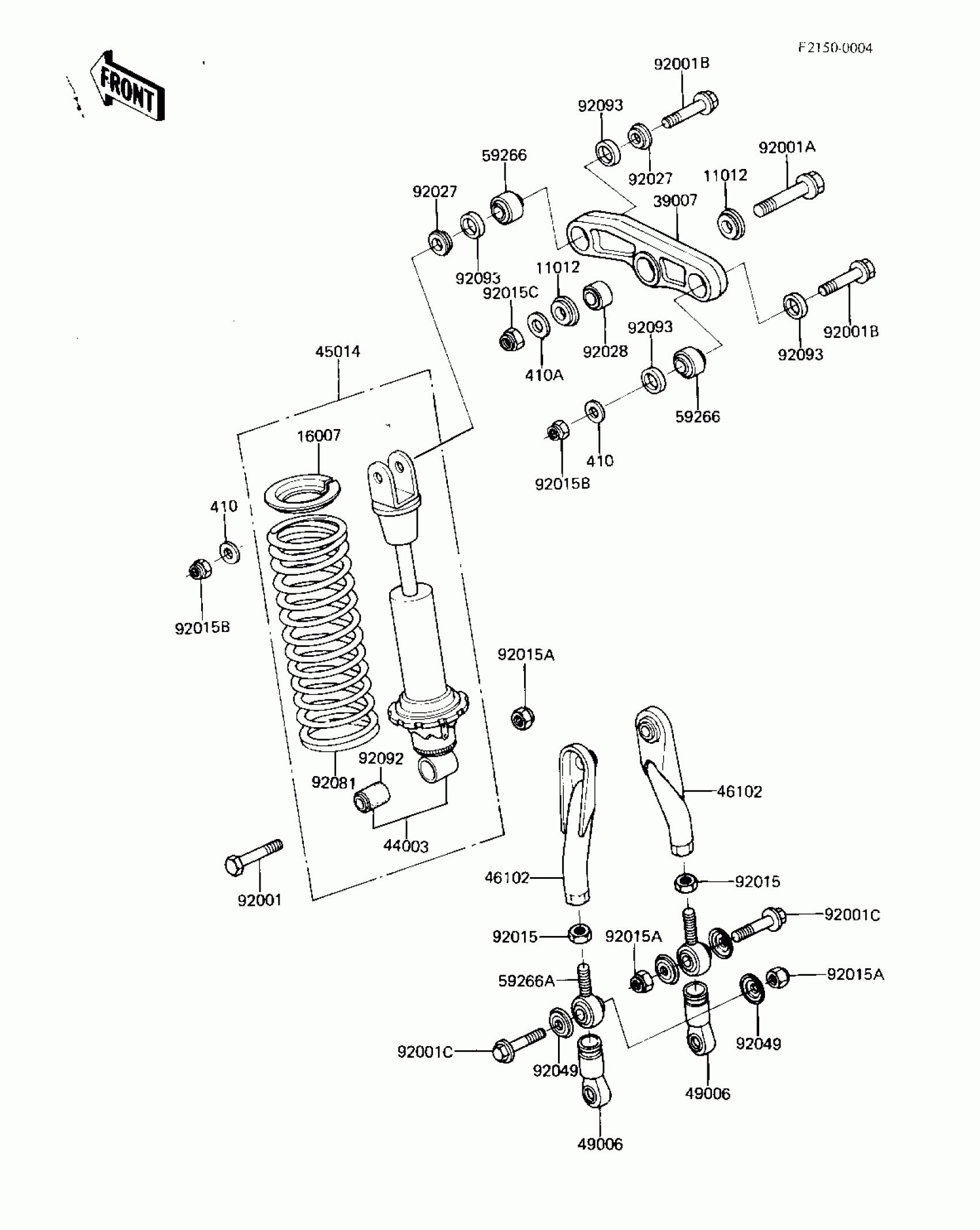

Kawasaki KDX80 REAR SUSPENSION/SHOCK ABSORBER Diagram

Description

Price

11012

CAP,SUSPENSION ARM

11012-1117

Unavailable

16007

SEAT-SPRING,REAR SHOC

16007-1040

$7.80

39007

ARM,SUSPENSION

39007-1004

$65.42

44003

DAMPER-ASSY,REAR SHOC

44003-1144

$207.48

45014

SHOCK ABSBR RR

45014-1134

$337.31

46102

ROD,UNI TRAK

46102-1023

$57.31

49006

BOOT,UNITRAK

49006-1049

Unavailable

59266

JOINT-BALL

59266-1051

Unavailable

59266A

JOINT,BALL

59266-1005

$89.38

92001

BOLT,FLANGED,10X44

92001-1299

Unavailable

92001A

BOLT,14X56

92001-1363

Unavailable

92001B

BOLT,12X48

92001-1364

$6.25

92001C

BOLT,10X34

92001-1366

$2.90

92015

NUT 10MM

92016-027

Unavailable

92015A

NUT,10MM

92015-1429

$5.45

92015B

NUT-LOCK,12MM

92019-009

$7.20

92015C

NUT-LOCK,14MM

92019-011

Unavailable

92027

COLLAR

92027-1304

$11.61

92028

BUSHING

92028-1118

$146.87

92049

OIL SEAL,BALL JOINT

92049-1072

Unavailable

92081

SPRING,REAR SHOCK

92081-1396

$95.51

92092

BUSHING-RUBBER,REAR S

92092-1015

$13.59

92093

SEAL

92093-1045

$15.39

410

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

410A

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable
