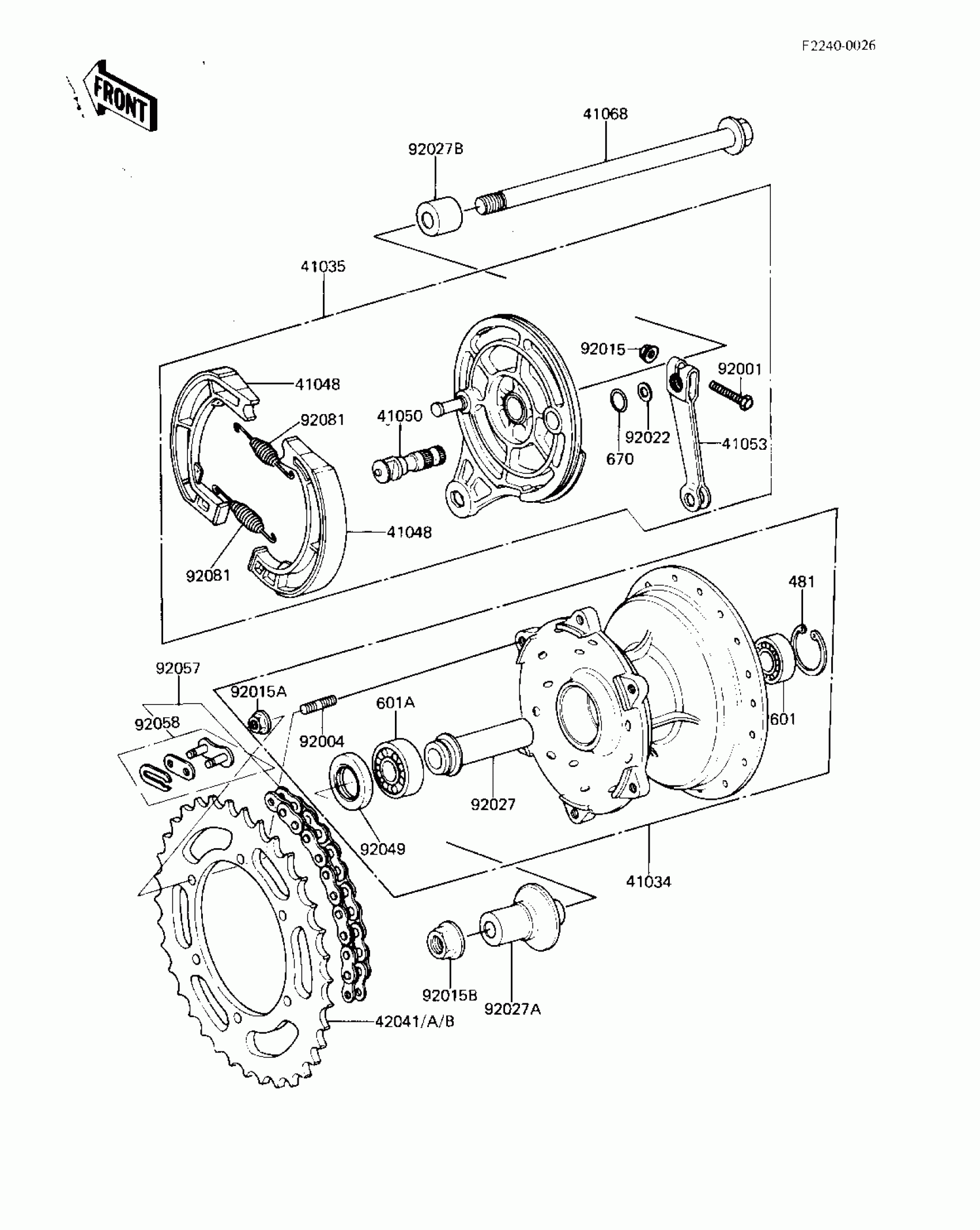

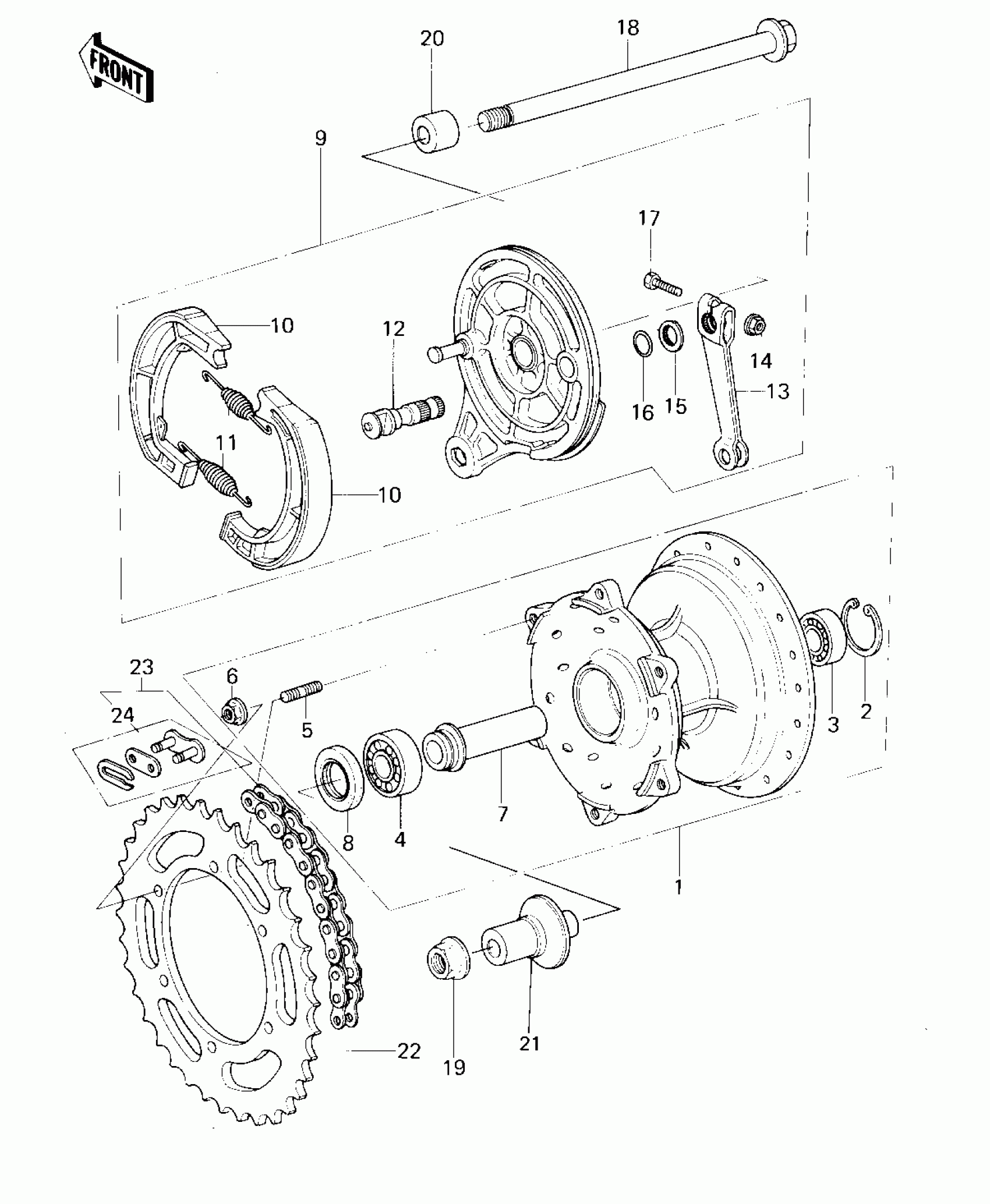

Kawasaki KDX80 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

DRUM-ASSY,REAR BRAKE

41034-5004

$315.81

2

CIRCLIP-TYPE-C,32MM

481J3200

$2.12

3

BEARING-BALL,#6201LUC3/2A

601B6201U

$18.14

4

BEARING-BALL,#6203C3

601B6203

$11.12

5

STUD,8X17

92004-1015

Unavailable

6

NUT,FLANGED,8MM

92015-1022

$0.53

7

COLLAR,REAR BRAKE DRM

92027-1089

$41.30

8

OIL SEAL,24X40X8

92049-1012

Unavailable

9

PANEL-ASY,RR BRK

41035-1034

$158.42

10

SHOE,BRAKE

41048-1021

Unavailable

11

SPRING,BRAKE SHOE

92081-1766

$6.39

12

CAM,BRAKE,REAR

41050-1012

Unavailable

13

LEVER,BRAKE CAM,REAR

41053-1010

$43.56

14

NUT,6MM

41072-007

$3.12

15

WASHER

92022-257

Unavailable

16

O RING,12MM

670B2012

$2.58

17

BOLT,HEX HEAD,6X30

92001-1135

Unavailable

18

AXLE,REAR

41068-1037

$72.88

19

NUT,FLANGED,12MM

92015-1156

Unavailable

20

COLLAR

92027-1251

Unavailable

21

COLLAR

92027-1250

Unavailable

22

REAR SPROCKET,50T

42041-1034

$95.63

22

REAR SPROCKET,48T

42041-1016

Unavailable

22

REAR SPROCKET,52T

42041-1035

$95.63

23

CHAIN ASSY,EK420SHG

92057-1098

$92.27

24

JOINT,CHAIN

92058-1016

$7.68
