1980 Kawasaki KDX250 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

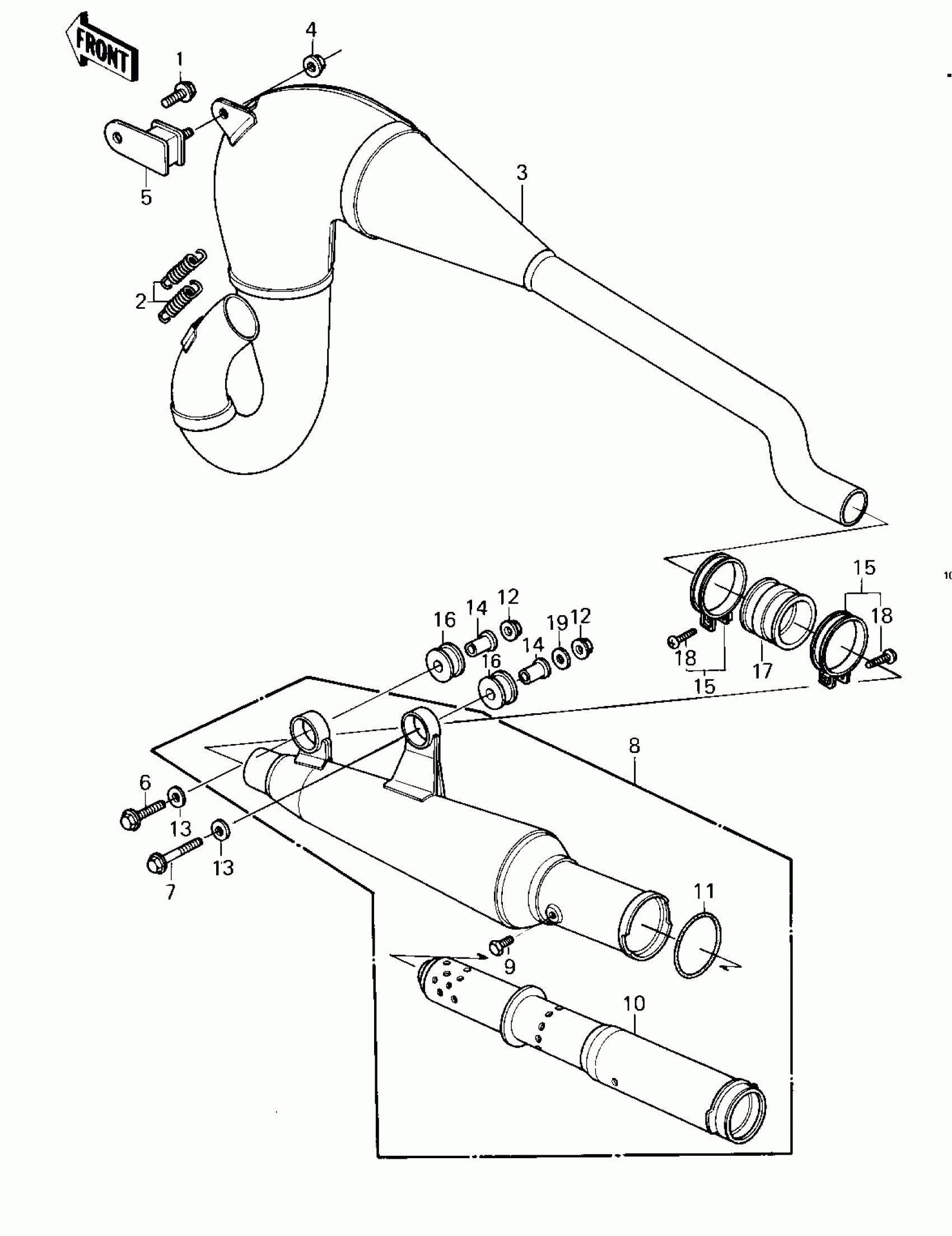

1980 Kawasaki KDX250 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-FLANGED,8X14

130G0814

1
Out of stock

2

SPRING-CONNECTOR

18071-003

1

$9.11

In stock

3

BODY,MUFFLER

49070-1026

1
Out of stock

4

NUT,FLANGED,8MM

92015-1014

1
Out of stock

5

DAMPER,MUFFLER FITING

92075-1060

1
Out of stock

6

BOLT-FLANGED,8X35

130G0835

1
Out of stock

7

BOLT-FLANGED,8X55

130G0855

1
Out of stock

8

1

$223.53

In stock

9

BOLT-FLANGED,6X8

130B0608

1
Out of stock

10

BAFFLE PIPE,MUFFLER

49099-1011

1

$111.81

In stock

11

"0" RING,50.8MM,MUFL

92055-1077

1
Out of stock

12

NUT,LOCK,8MM

92015-1124

1
Out of stock

13

WASHER,8.5X35X2.3

92022-298

1
Out of stock

14

1

$8.16

In stock

15

CLAMP

92037-177

1
Out of stock

16

DAMPER,MUFFLER

92075-1196

1
Out of stock

17

SEAL,MUFFLER

92093-1014

1
Out of stock

18

1

$3.24

In stock

19

WASHER,8X26X2.3

92022-1564

1

$3.43

In stock
