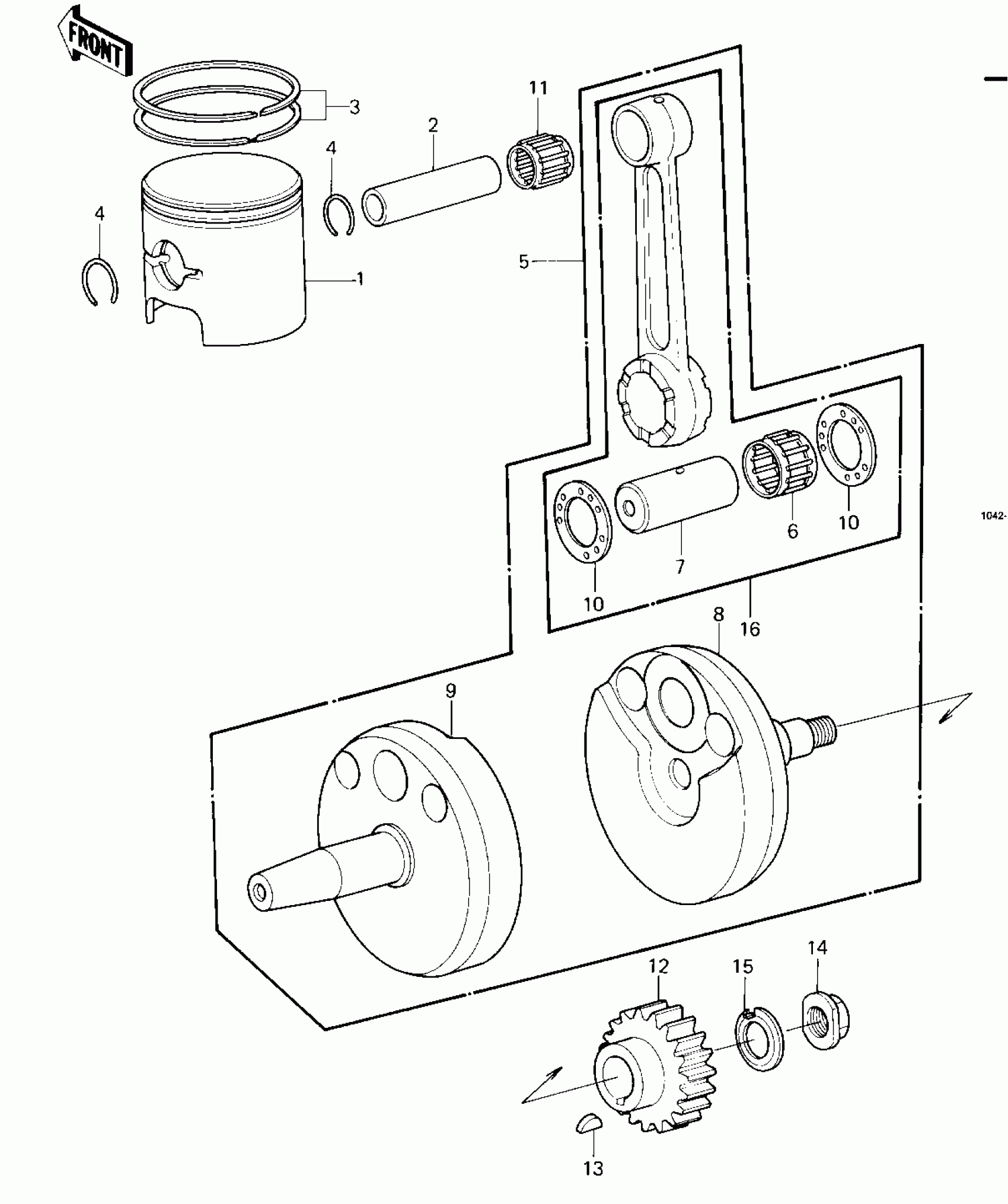

Find the part on the Crankshaft/piston diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

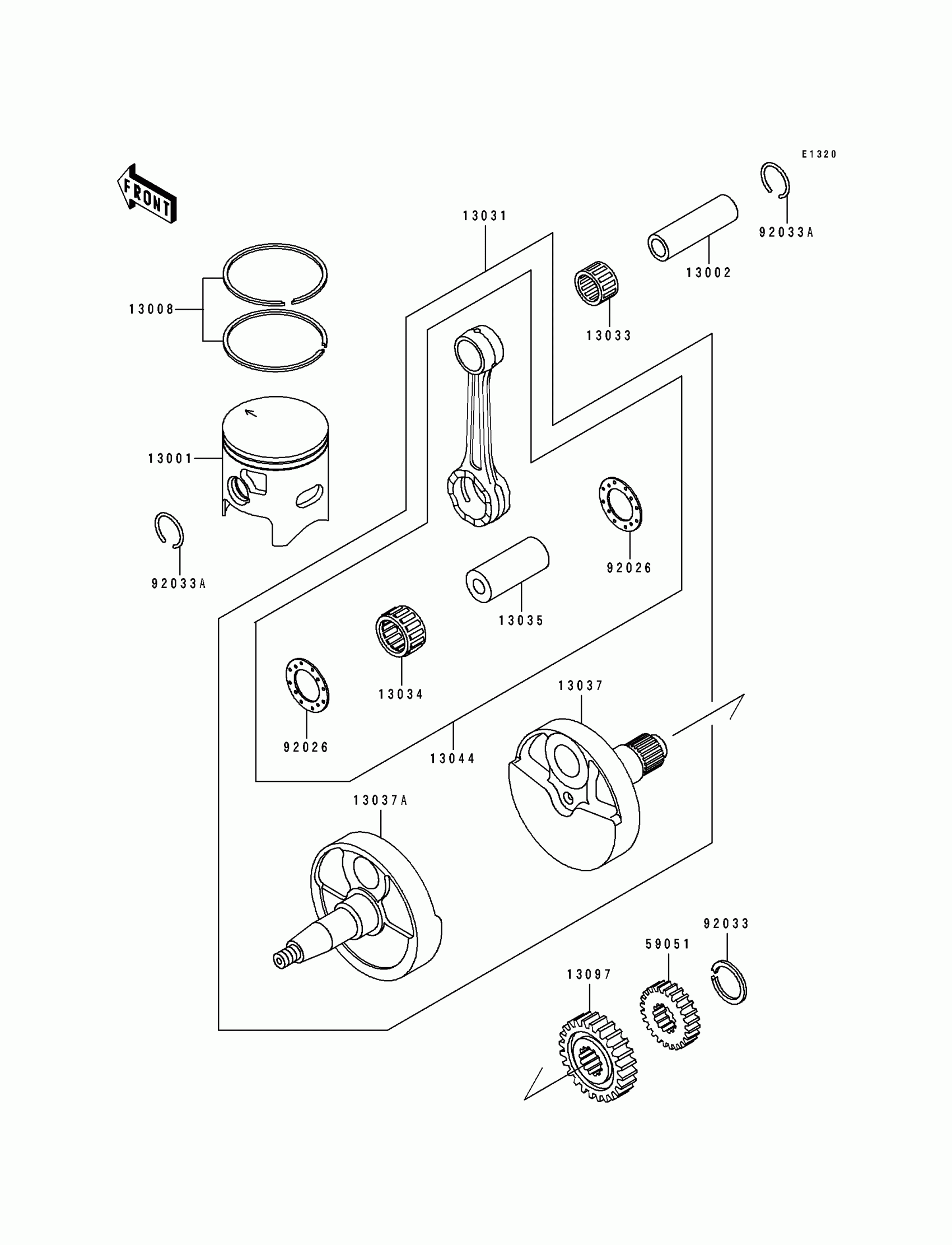

1980 Kawasaki KDX250 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON,STD

13001-1039

1
Out of stock

2

PIN-PISTON

13002-017

1
Out of stock

3

RING SET,STD

13008-5026

1
Out of stock

4

CIRCLIP-PISTON PIN

92036-015

1

$3.93

In stock

5

CRANKSHAFT ASSY

13031-1039

1
Out of stock

6

BEARING,BIG END NEEDL

13034-049

1
Out of stock

7

PIN,CRANK

13035-034

1

$86.76

In stock

8

CRANKSHAFT,R.H

13037-1069

1
Out of stock

9

CRANKSHAFT,L.H

13037-1070

1
Out of stock

10

SPACER

92026-1241

1

$9.20

In stock

11

BEARING-SMALL END

13033-1010

1

$23.08

In stock

12

GEAR,PRIMARY

13097-1028

1
Out of stock

13

WOODRUFF KEY

510A5100

1

$2.17

In stock

14

NUT,CRANKSHAFT

92015-069

1
Out of stock

15

WASHER,LOCK

92024-061

1
Out of stock

16

CONNECTING ROD SET

13044-5007

1
Out of stock
