1980 Kawasaki KDX250 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

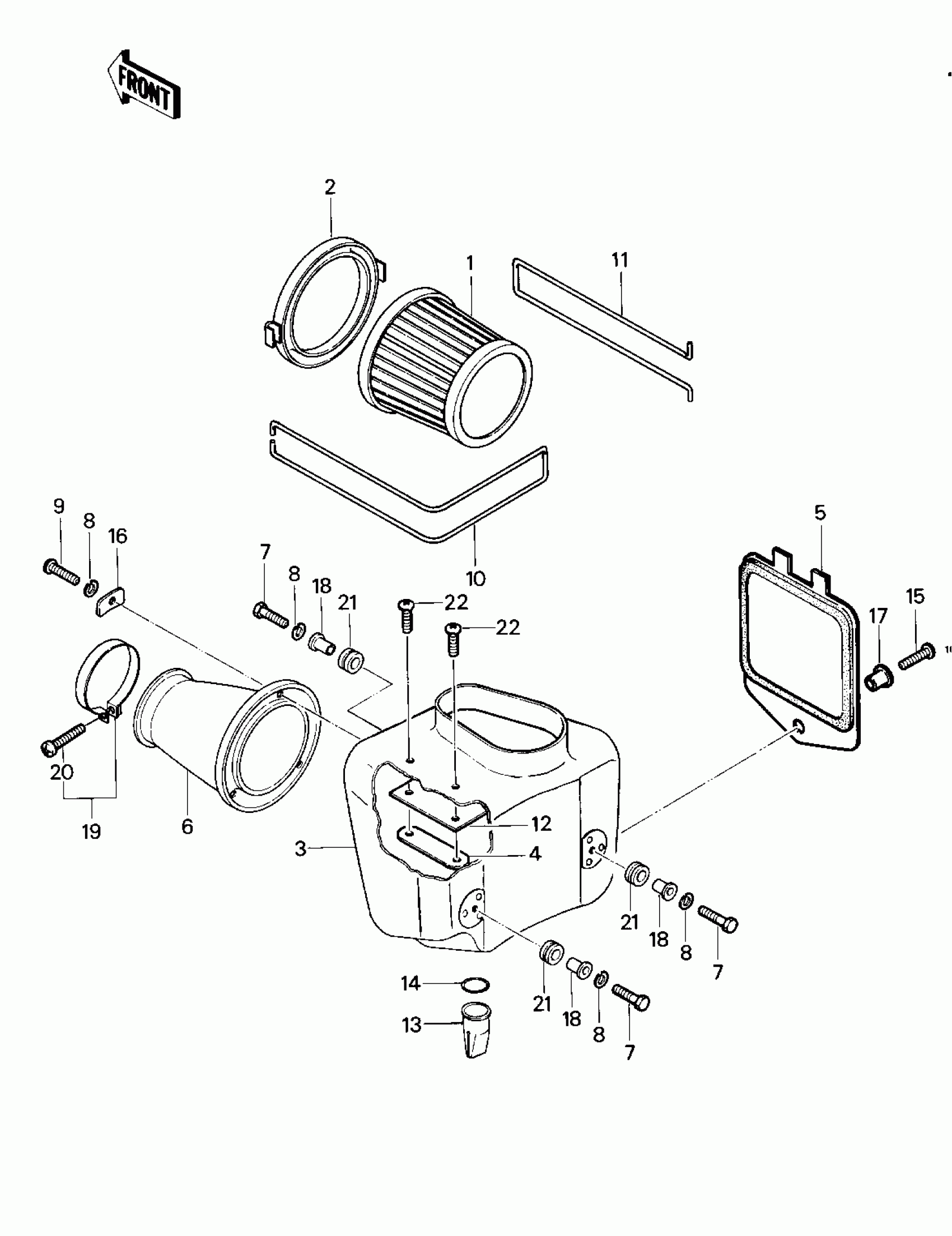

1980 Kawasaki KDX250 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIR FILTER

11010-4001

1
Out of stock

2

CASE,AIR FILTER

11011-4001

1
Out of stock

3

CASE

11011-4002

1
Out of stock

4

PLATE, NUT

13169-4007

1
Out of stock

5

COVER, AIRBOX

14025-4004

1
Out of stock

6

DUCT,AIR CLEANER

14073-1040

1

$14.15

In stock

7

BOLT-UPSET

112G0625

1
Out of stock

8

WASHER SPRING 6MM

461F0600

1
Out of stock

9

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

10

HOOK

27012-4002

1

$4.15

In stock

11

HOOK

27012-4005

1

$1.19

In stock

12

FLAP, AIR BOX SHIELD

35019-4002

1
Out of stock

13

BOOT

49006-1012

1
Out of stock

14

O RING,20MM

670B2020

1

$1.12

In stock

15

SCREW,6X20

92009-1289

1
Out of stock

16

WASHER,PLAIN

92022-1018

1

$3.15

In stock

17

COLLAR

92027-1045

1

$4.37

In stock

18

COLLAR

92027-194

1

$4.37

In stock

19

CLAMP

92037-068

1

$11.86

In stock

20

1

$1.44

In stock

21

DAMPER RUBBER

92075-112

1

$3.57

In stock

22

SCREW,6X14,WHITE

92009-1287

1
Out of stock
