1980 Kawasaki KDX250 Crankcase Diagram

← All diagrams

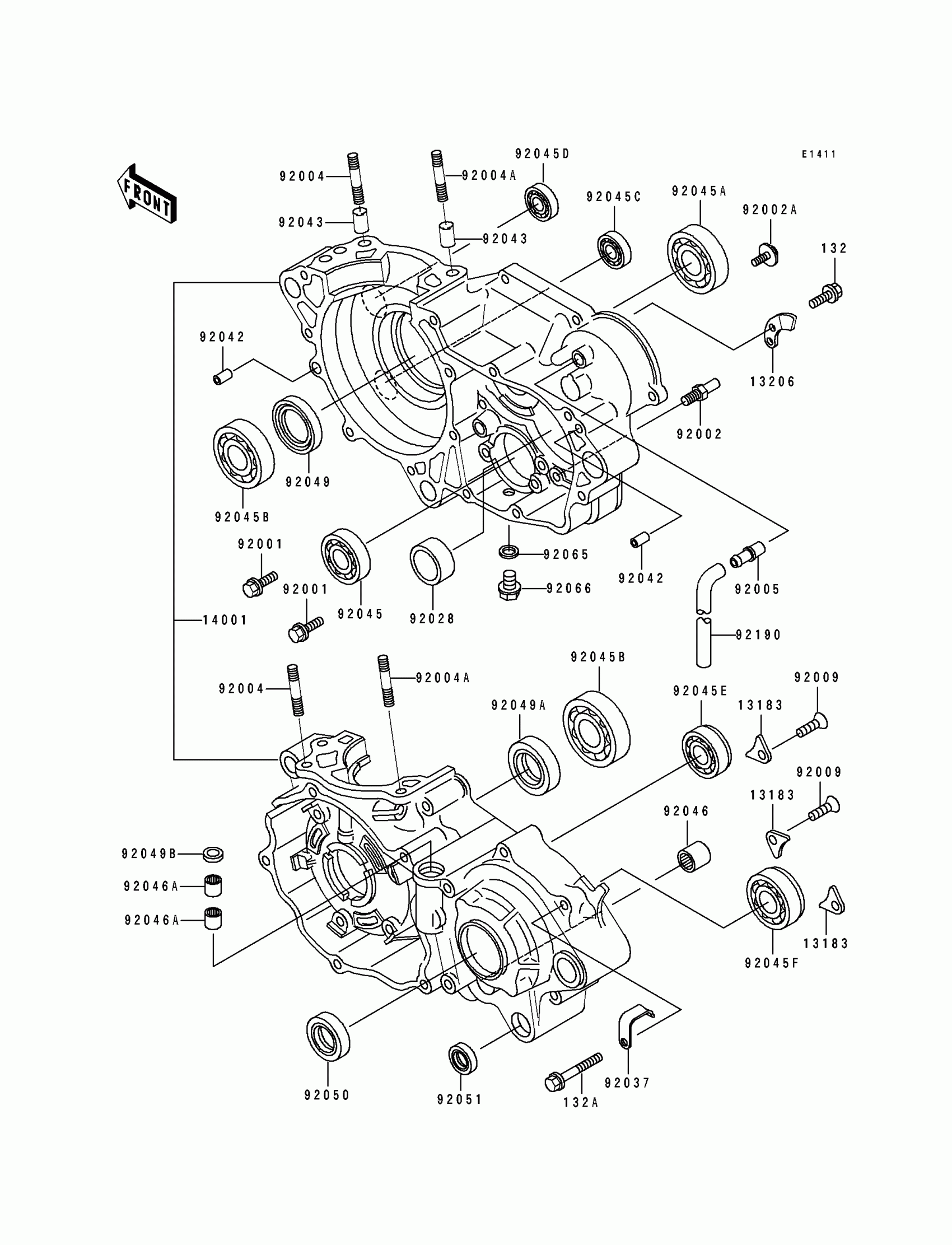

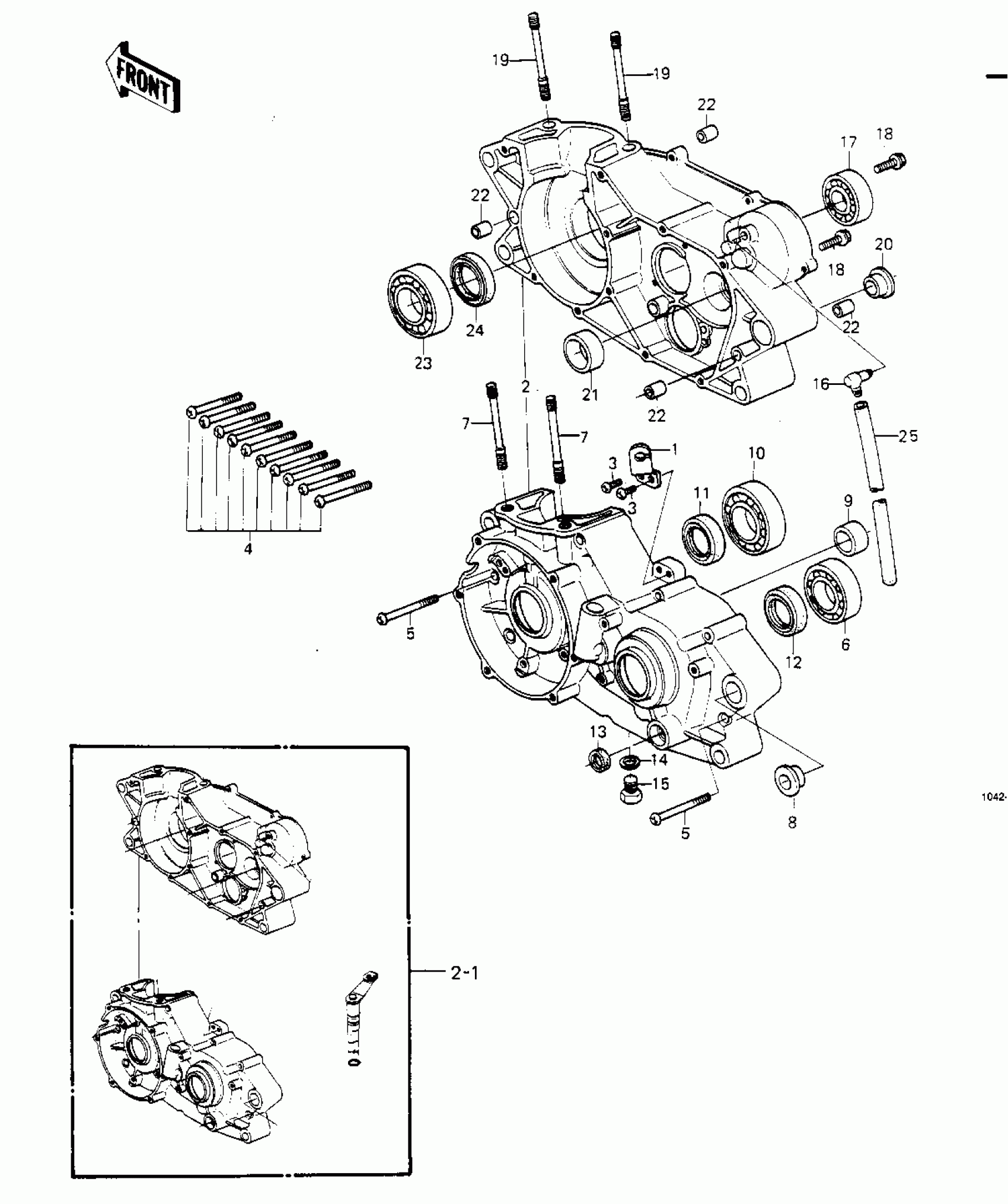

Find the part on the Crankcase diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KDX250 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,CLUTCH CABLE

13091-1068

1
Out of stock

2

SET-CRANKCASE

14001-5068

1
Out of stock

2-1

SET-CRANKCASE

14001-5068

1
Out of stock

3

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

4

1

$1.19

In stock

5

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

6

1

$15.38

In stock

7

STUD,10X65

92004-1032

1
Out of stock

8

BUSHING,PIVOT MOUNT

92028-1074

1
Out of stock

9

BUSHING,23X30X13

92028-132

1

$38.79

In stock

10

1

$16.39

In stock

11

SEAL-OIL

92049-1047

1
Out of stock

12

SEAL-OIL,TB3040

92050-033

1
Out of stock

13

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

14

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

15

PLUG,DRAIN,10X12

92067-001

1

$3.50

In stock

16

BREATHER

14069-003

1

$8.16

In stock

17

1

$10.76

In stock

18

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

19

STUD,10X65

92004-1032

1
Out of stock

20

BUSHING,PIVOT MOUNT

92028-1074

1
Out of stock

21

BUSHING,26X35X14

92028-131

1

$34.76

In stock

22

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

23

BEARING,BALL,#6305SH

92045-1024

1
Out of stock

24

SEAL-OIL,TCJ25457

92049-1051

1
Out of stock

25

TUBE,6X9X500

92059-1125

1

$14.65

In stock
