1980 Kawasaki KDX250 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

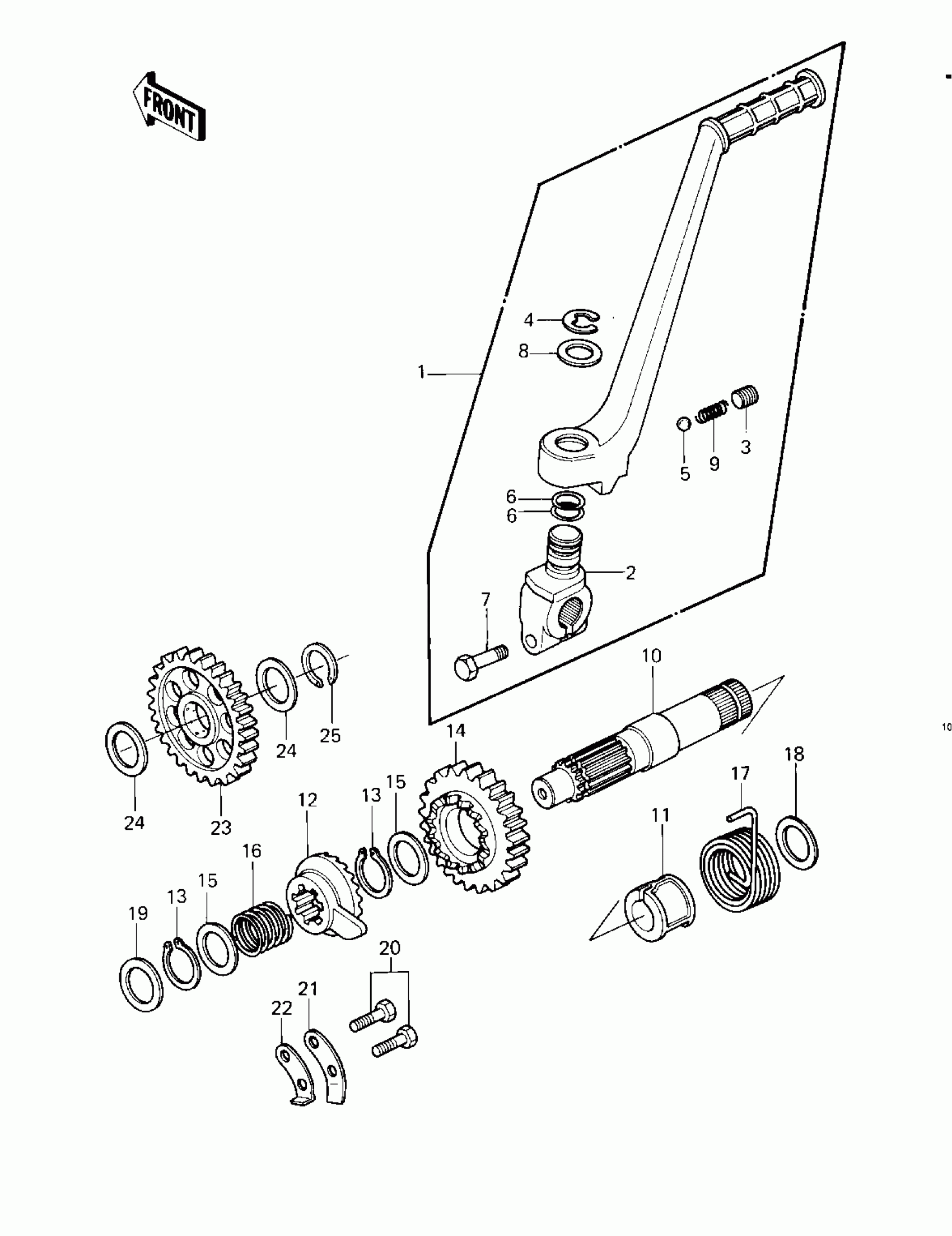

1980 Kawasaki KDX250 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER-ASSY-KICK PEDA

13064-5005

1
Out of stock

2

BOSS,KICK PEDAL

13061-5001

1
Out of stock

3

1

$4.25

In stock

4

CIR CLIP

482K0100

1

$0.69

In stock

5

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

6

O RING,12MM

670B2012

1

$2.58

In stock

7

BOLT,8X28

92001-1042

1
Out of stock

8

WASHER,15.2X20X1

92022-1019

1

$4.61

In stock

9

SPRING,KICK PEDAL

92081-020

1

$3.39

In stock

10

SHAFT,KICKSTARTER

13066-1014

1
Out of stock

11

GUIDE,KICK SPRING

13070-011

1

$9.49

In stock

12

RATCHET

13078-1052

1

$67.80

In stock

13

1

$3.43

In stock

14

1

$74.10

In stock

15

WASHER,16.8X22X0.5

92022-315

1
Out of stock

16

SPRING,RATCHET

92081-122

1

$6.98

In stock

17

SPRING,KICKSTARTER

92081-1253

1
Out of stock

18

SPACER,17.2X23X0.5

92026-1037

1

$3.85

In stock

19

WASHER,12.3X20X0.5

92022-269

1
Out of stock

20

BOLT-UPSET

112G0618

1
Out of stock

21

GUIDE-KICK

13206-1059

1
Out of stock

22

STOPPER,KICKSTARTER

32085-1016

1
Out of stock

23

IDLE GEAR, KICKSTRTE

59051-1022

1
Out of stock

24

WASHER,20.5X25.5X0.5

92022-252

1
Out of stock

25

RING-SNAP,18MM

92033-029

1

$7.79

In stock
