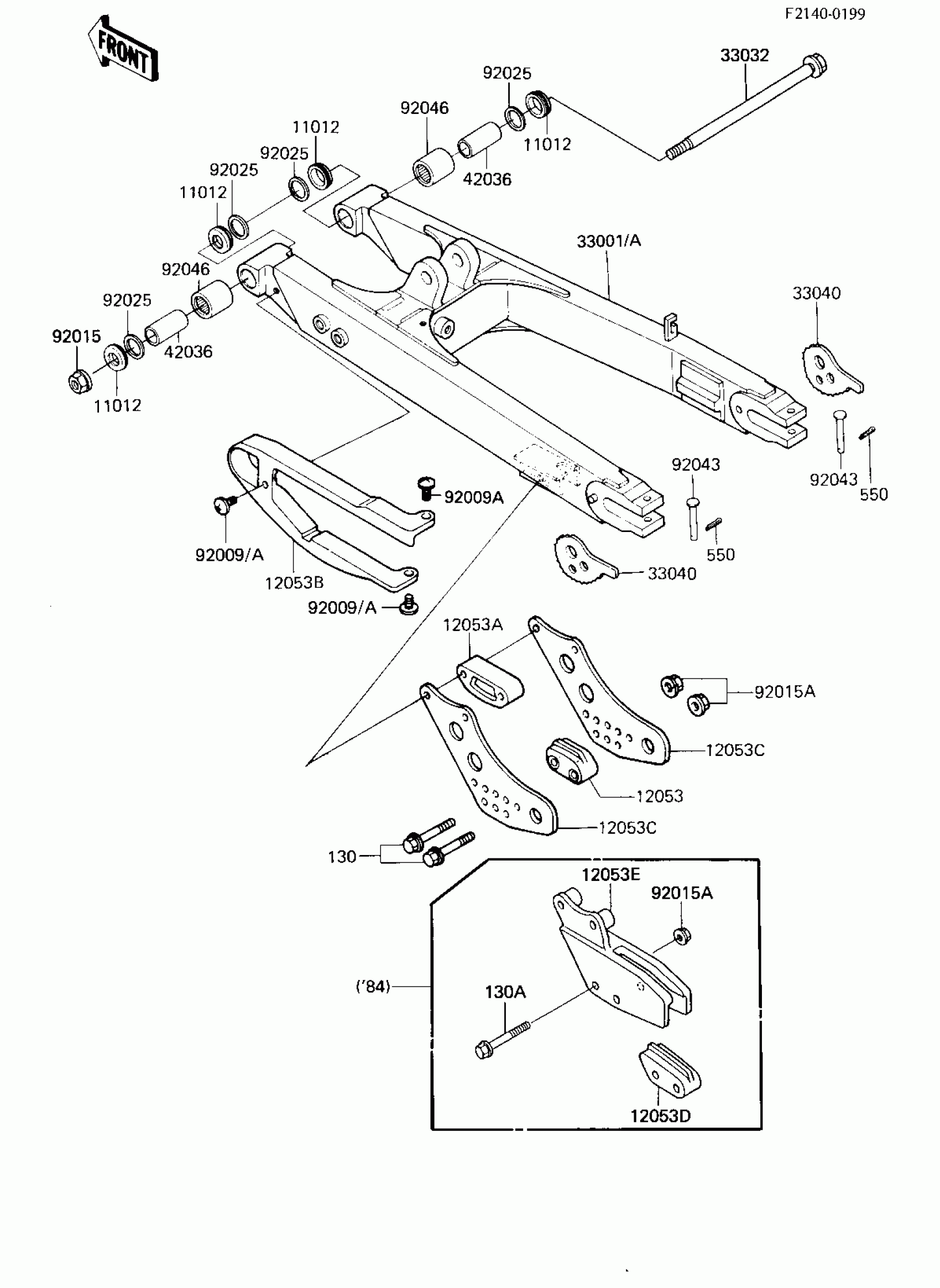

Kawasaki KDX200 SWING ARM (KDX200-A1/A2) Diagram

Description

Price

11012

CAP

11012-1207

Unavailable

12053

GUIDE,CHAIN,REAR

12053-1011

Unavailable

12053A

GUIDE,CHAIN,REAR

12053-1039

Unavailable

12053B

GUIDE-CHAIN,FR

12053-1068

Unavailable

12053C

GUIDE-CHAIN,RR

12053-1073

Unavailable

33001

ARM-COMP-SWING

33001-1175

$742.66

33001A

ARM-COMP-SWING

33001-1208

$588.07

33032

SHAFT-SWING ARM

33032-1042

Unavailable

33040

ADJUSTER-CHAIN

33040-1060

$30.96

42036

SLEEVE,SWING ARM

42036-1056

Unavailable

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92009A

SCREW,6X14,WHITE

92009-1287

$1.81

92015

NUT,14MM

92015-1407

$7.54

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92025

SHIM,SWING ARM

92025-1116

Unavailable

92043

PIN,6X44.5

92043-1110

$4.51

92046

BRG,NEEDLE,HMK2030

92046-1031

Unavailable

130

BOLT,FLANGED,6X35

130H0635

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
