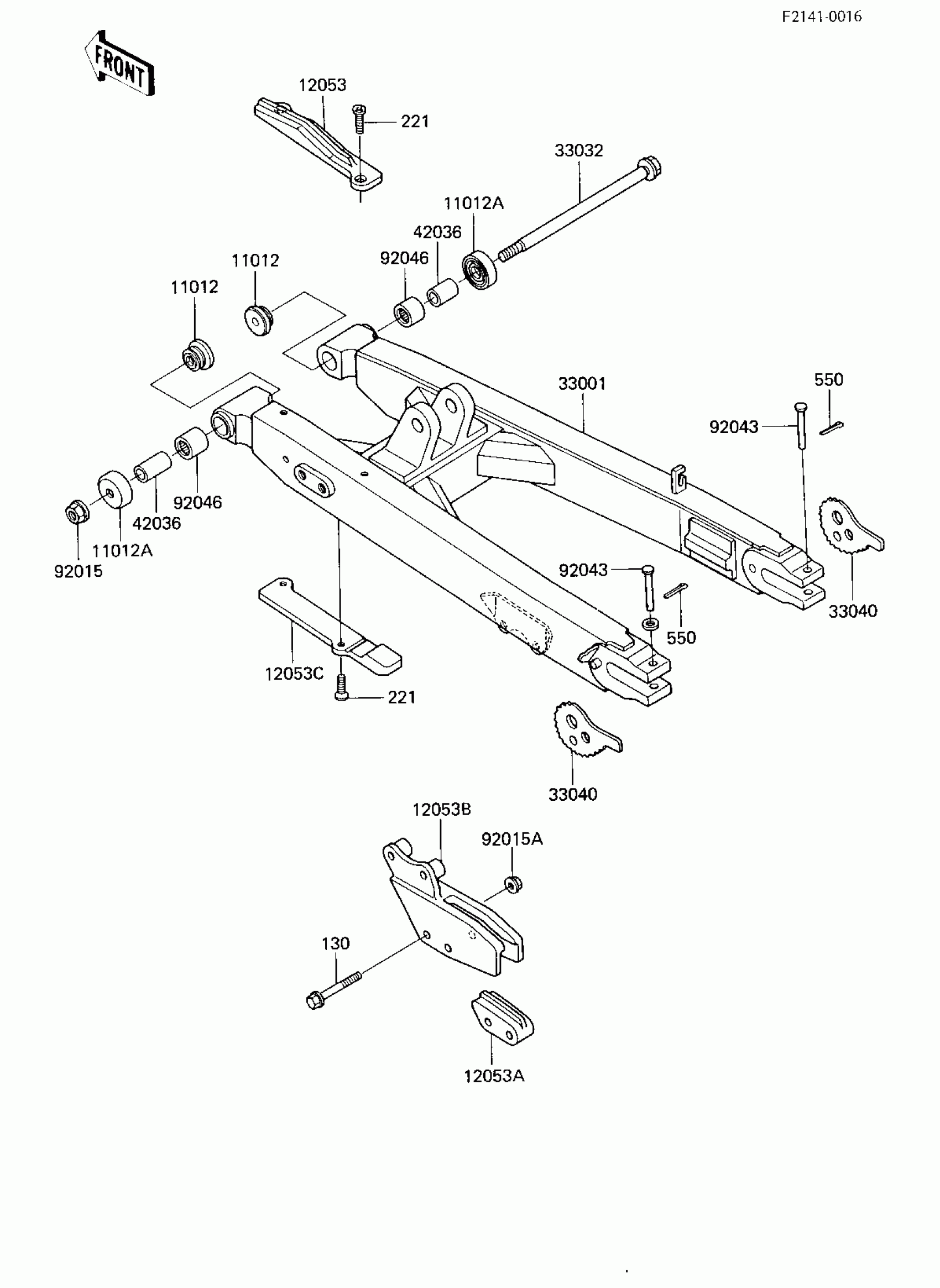

Kawasaki KDX200 SWING ARM (KDX200-A3) Diagram

Description

Price

11012

CAP,SWING ARM

11012-1355

Unavailable

11012A

CAP,SWING ARM

11012-1417

Unavailable

12053

GUIDE-CHAIN,FR,UPP

12053-1101

Unavailable

12053A

GUIDE-CHAIN,RR,INSIDE

12053-1105

Unavailable

12053B

GUIDE-CHAIN,RR

12053-1124

Unavailable

12053C

GUIDE-CHAIN

12053-1144

Unavailable

33001

ARM-COMP-SWING

33001-1232

$587.15

33032

SHAFT-SWING ARM

33032-1042

Unavailable

33040

ADJUSTER-CHAIN

33040-1060

Unavailable

42036

SLEEVE,SWING ARM,L=40

42036-1145

Unavailable

92015

NUT,14MM

92015-1407

$7.86

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92043

PIN,6X44.5

92043-1110

$4.51

92046

BEARING-NEEDLE

92046-1128

$23.58

130

BOLT-FLANGED,6X45

130G0645

Unavailable

221

SCREW-CSK-CROS,6X10

221B0610

$2.92

550

PIN COTTER 2.0X15

550D2015

Unavailable
