1988 Kawasaki KDX200 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

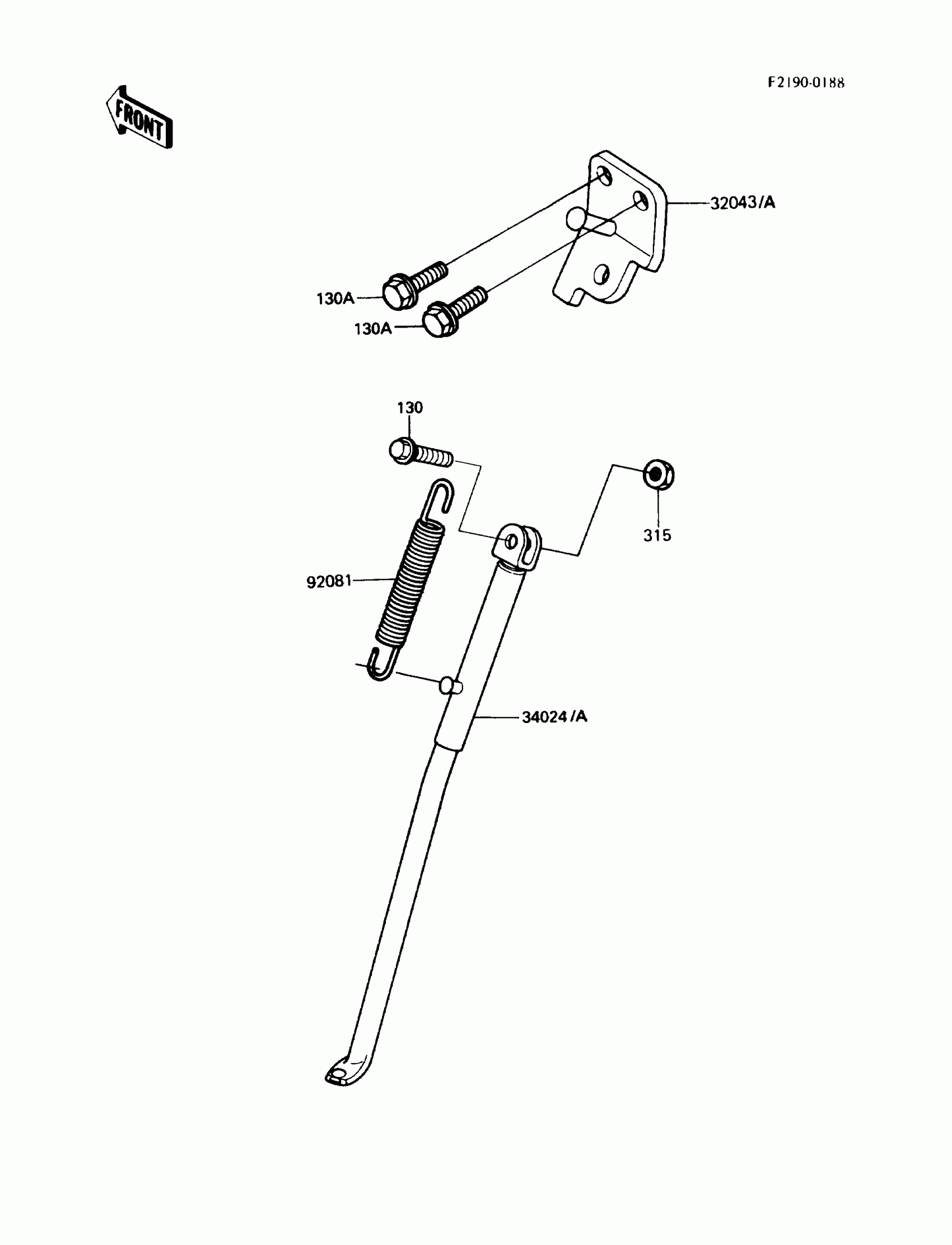

1988 Kawasaki KDX200 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043A

BRACKET-STAND,SIDE

32043-1314

1

$69.32

In stock

34024A

STAND-SIDE

34024-1238

1
Out of stock

92081

SPRING,SIDE STAND

92081-1419

1

$9.53

In stock

130

BOLT-FLANGED,10X30

130G1030

1
Out of stock

130A

BOLT-FLANGED,12X20

130G1220

1
Out of stock

315

NUT-HEX-FINE,10MM

315B1000

1
Out of stock
