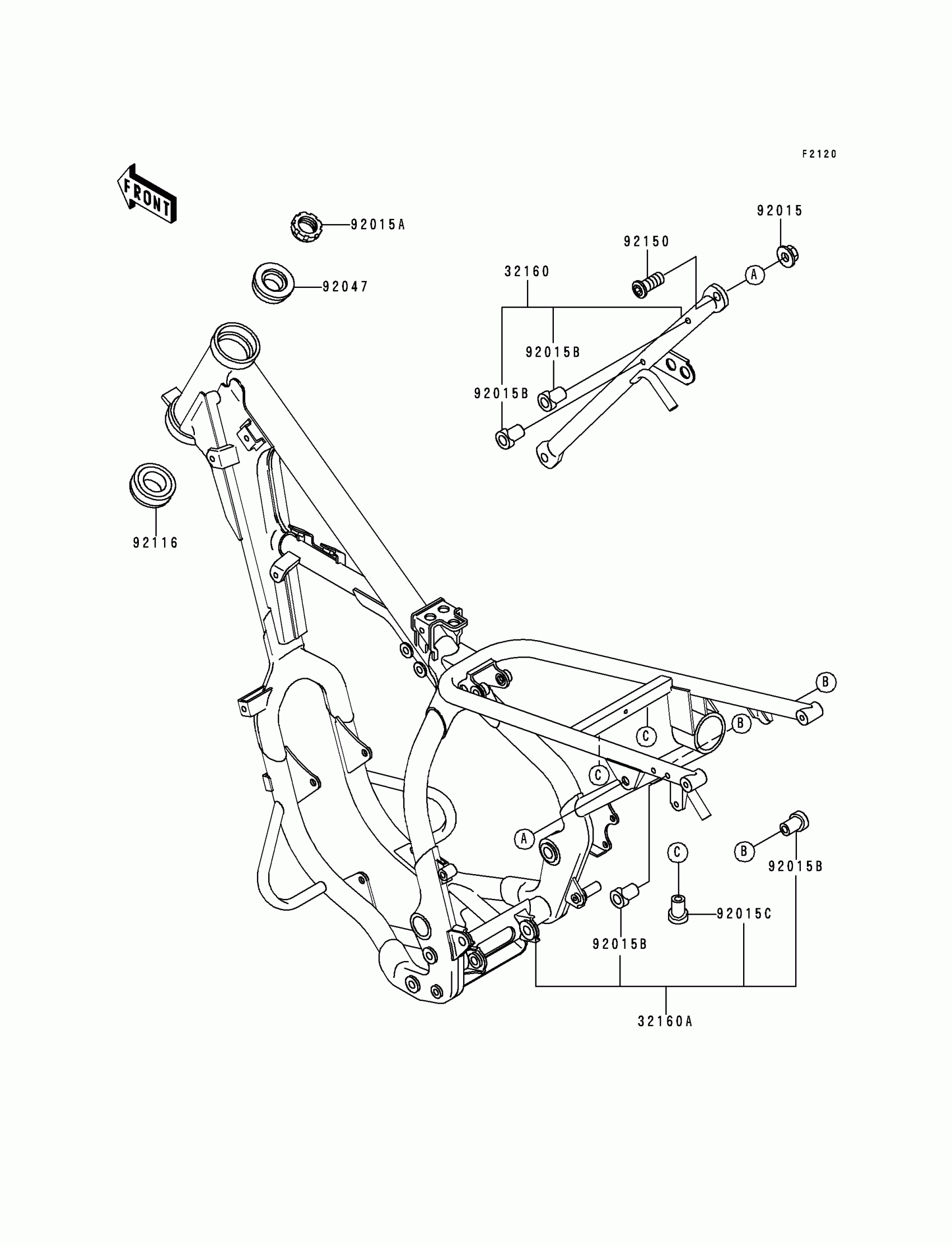

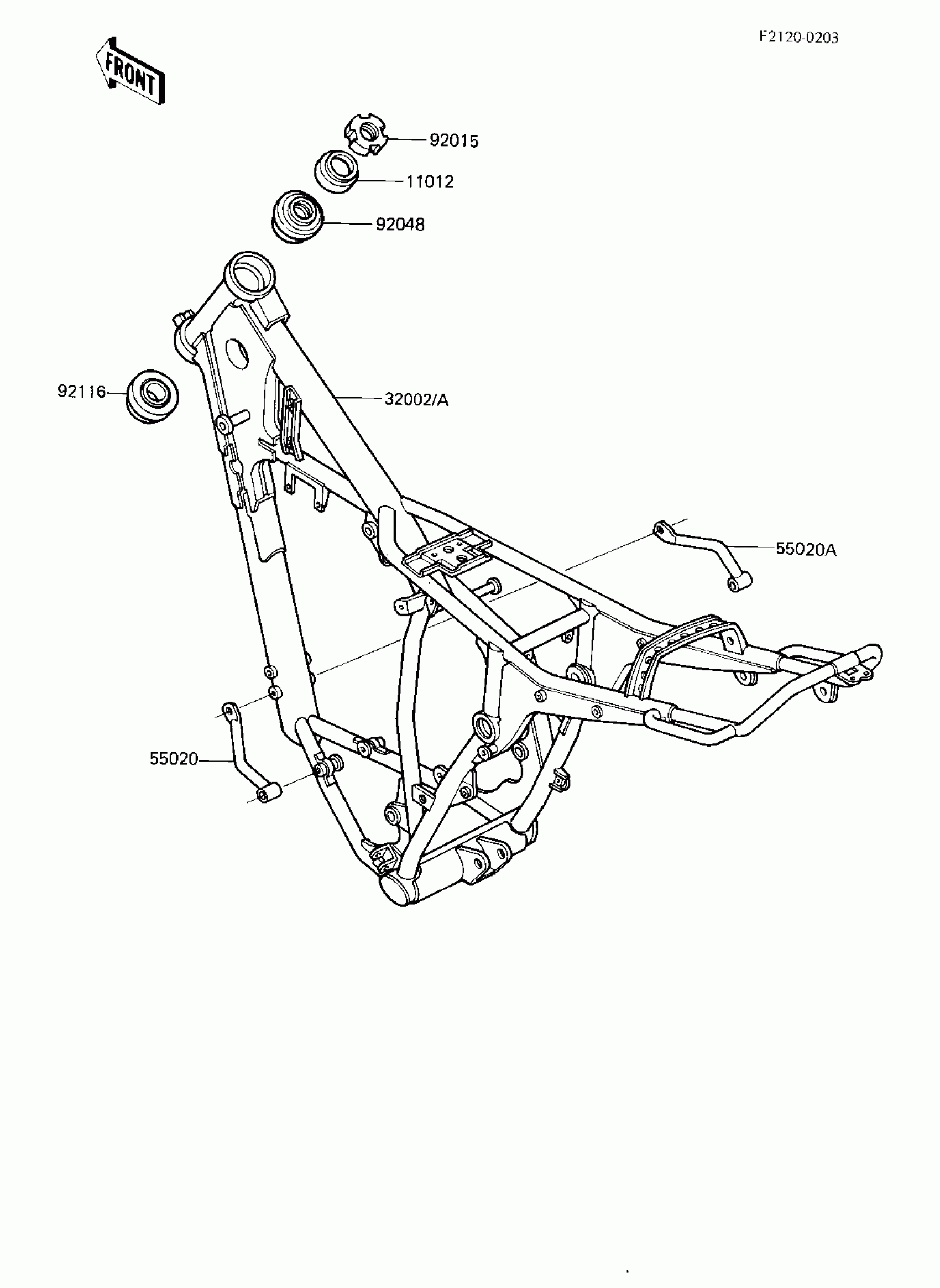

Kawasaki KDX200 FRAME Diagram

#

Description
Price

11012

CAP,STEERING STEM

46098-015

Unavailable

32002A

FRAME-COMP

32002-1654

$801.54

55020

GUARD,ENGINE,LH

55020-1091

$41.77

55020A

GUARD,ENGINE,RH

55020-1092

$41.67

92015

NUT,25MM,T=12

92015-1546

$19.66

92048

RACE,ROLLER,32005JR RS

92047-017

$38.84

92116

BEARING-ROLLER,LWR,32006JR RS

92116-1008

$76.75
