1985 Kawasaki KDX200 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

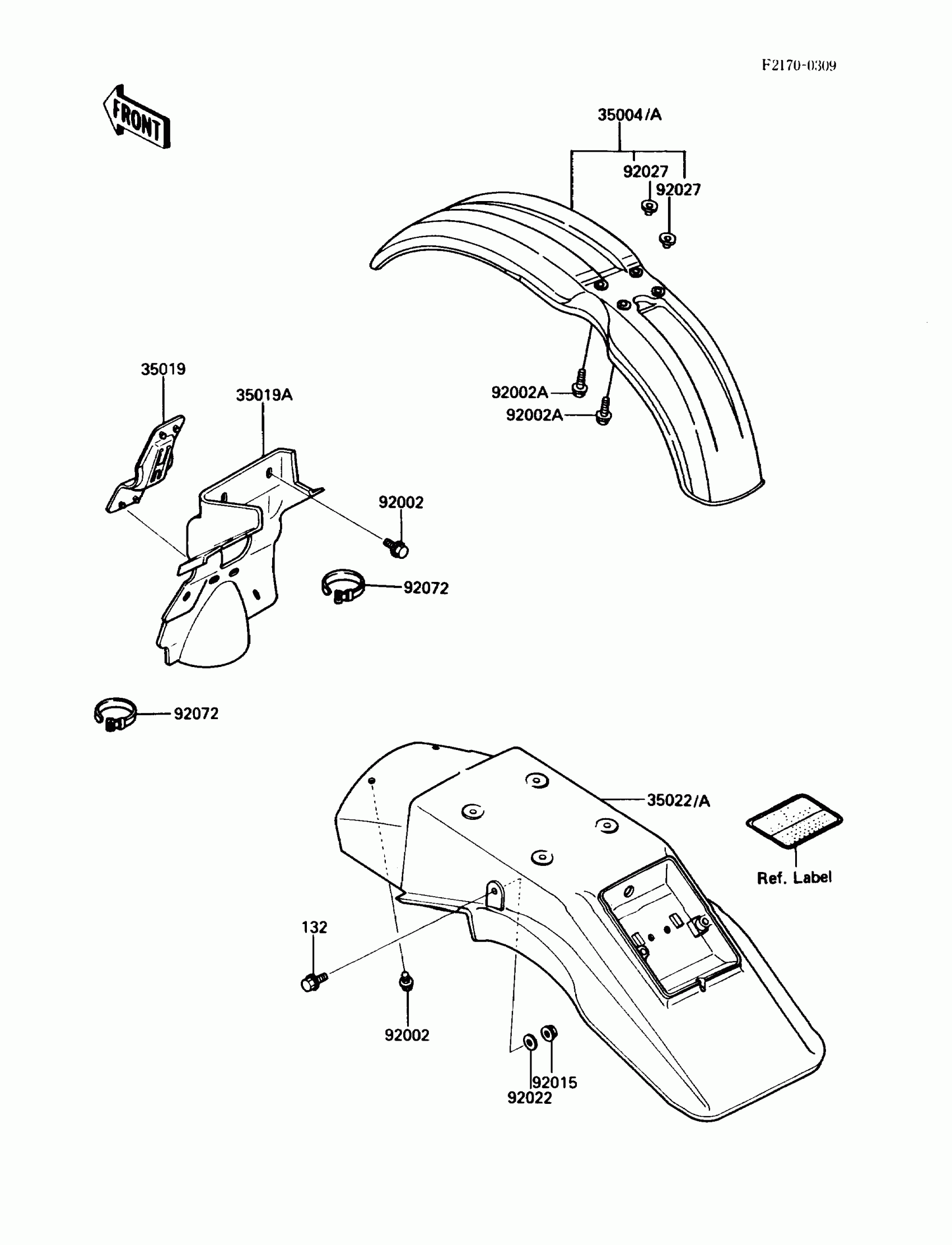

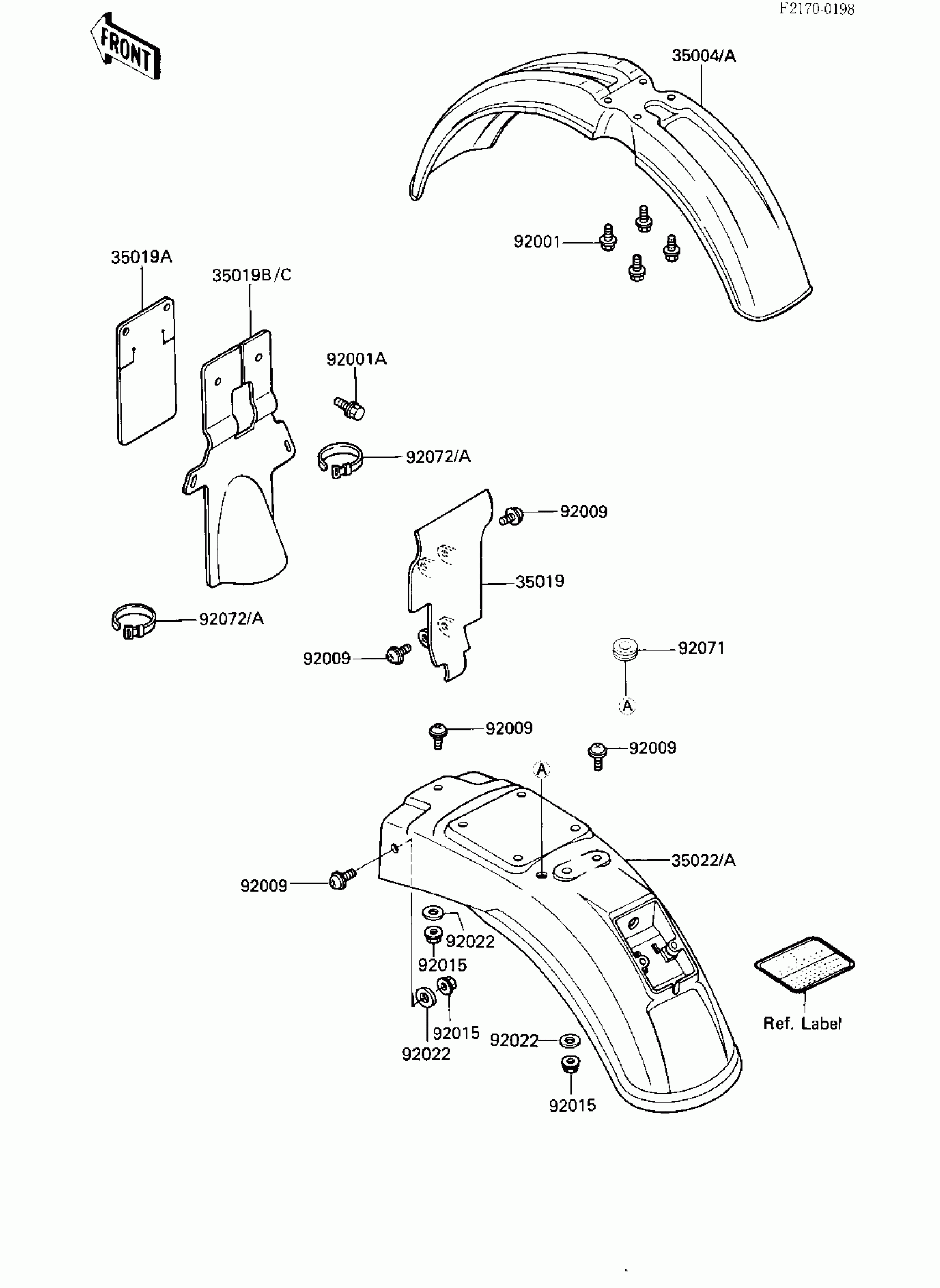

1985 Kawasaki KDX200 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004A

FENDER-FRONT,L.GREEN

35004-1233-6W

1
Out of stock

35019

FLAP,SUSPENSION ROD

35019-1050

1
Out of stock

35019A

FLAP,FENDER,RR

35019-1056

1
Out of stock

35019C

FLAP,REAR FENDER

35019-1130

1

$21.07

In stock

35022A

FENDER-COMP-REAR,L.GR

35022-1113-6W

1
Out of stock

92001

BOLT,6X20

92001-1773

1

$3.58

In stock

92001A

BOLT,6X14

92001-1926

1

$3.66

In stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92071

GROMMET,10MM

92071-019

1

$3.10

In stock

92072A

BAND,L=149

92072-031

1

$3.97

In stock
