1985 Kawasaki KDX200 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

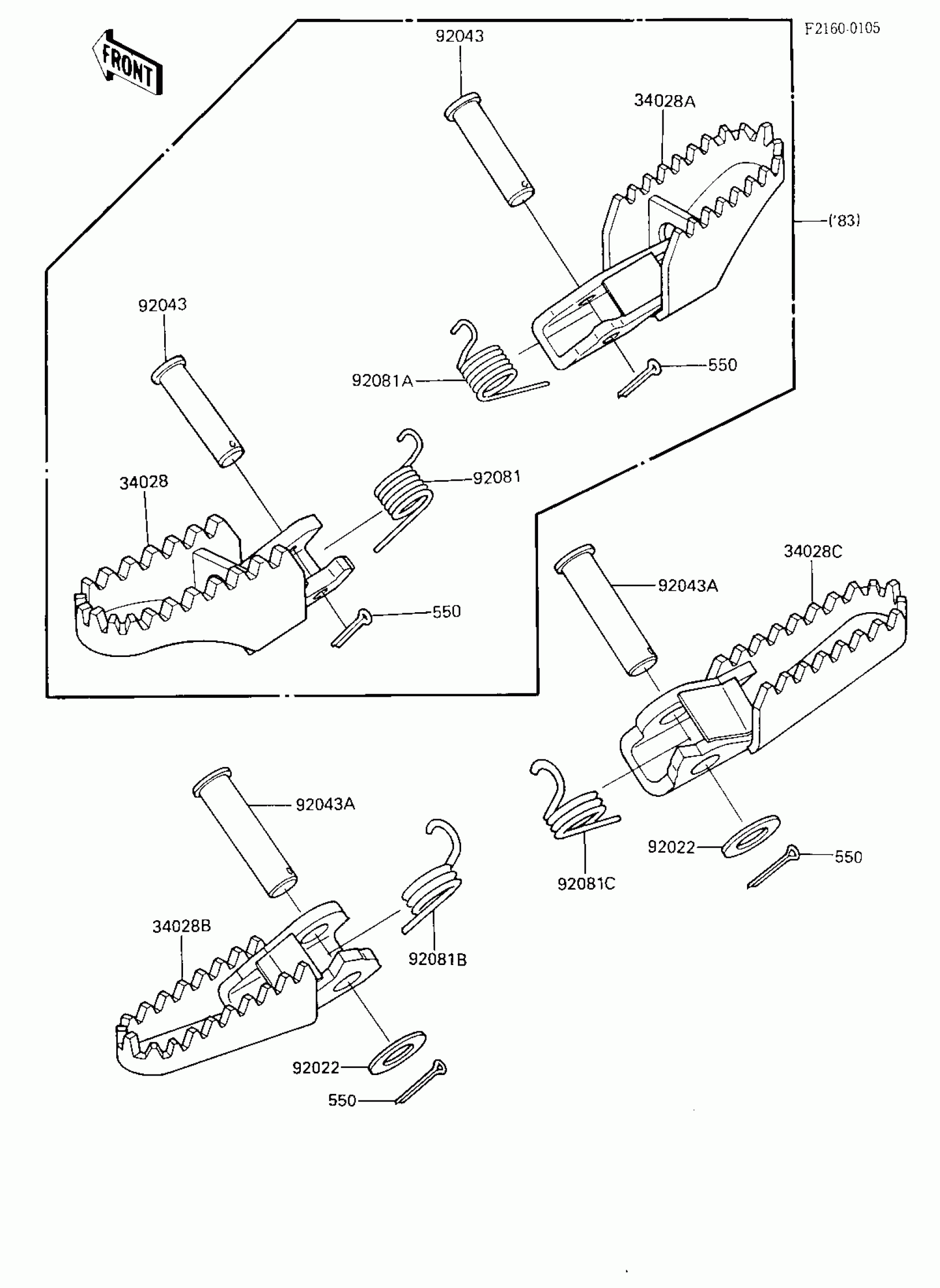

1985 Kawasaki KDX200 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34028B

STEP,LH

34028-1130

1
Out of stock

34028C

STEP,RH

34028-1131

1
Out of stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92043A

PIN,10X35

92043-1217

1

$9.43

In stock

92081B

SPRING,STEP,LH

92081-1606

1

$9.49

In stock

92081C

SPRING,STEP,RH

92081-1607

1

$9.49

In stock

550

1

$2.08

In stock
