1988 Kawasaki KDX200 Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

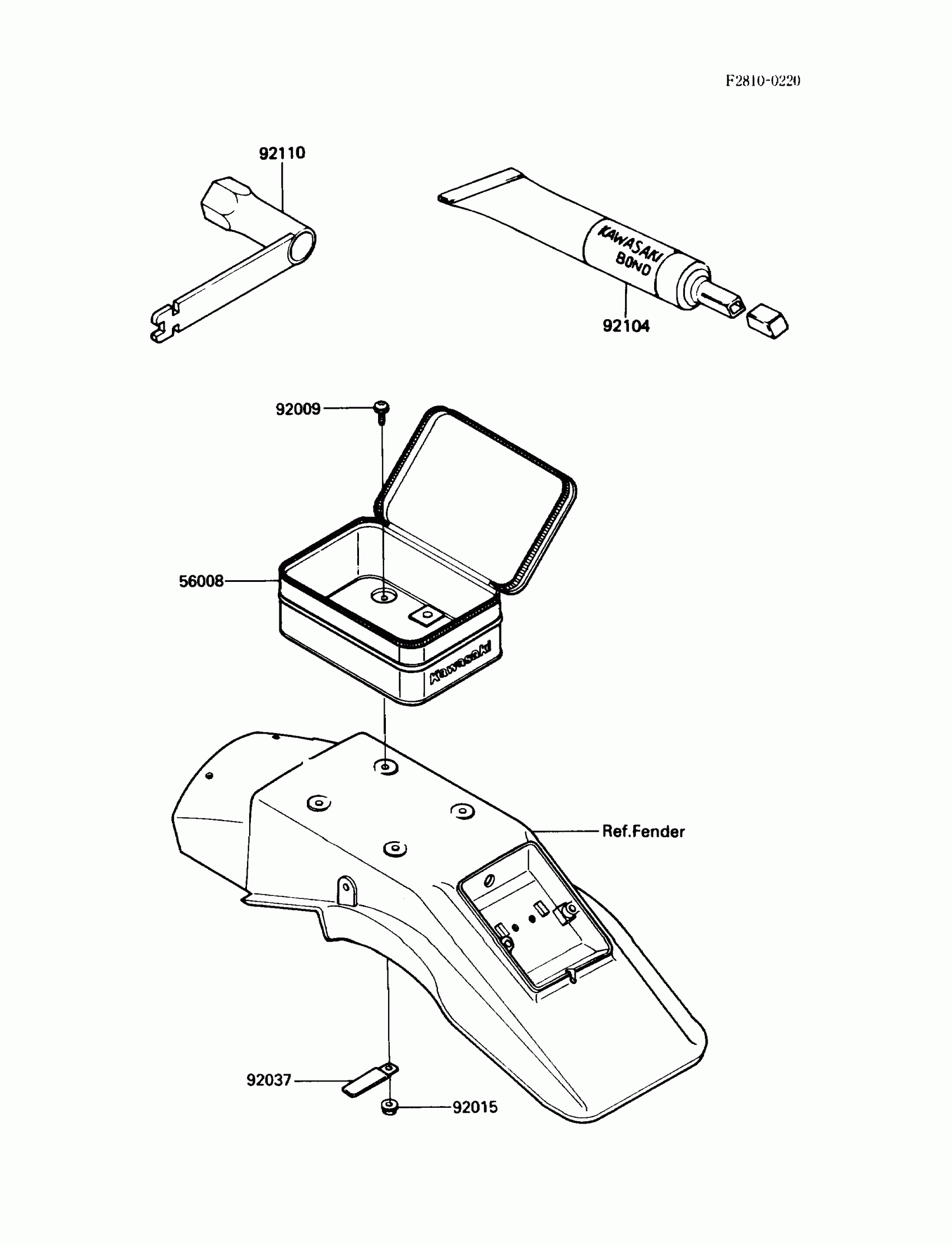

1988 Kawasaki KDX200 Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56008

BAG,TOOL

56008-1053

1
Out of stock

92009

SCREW,6X20

92009-1289

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92104

1

$9.96

In stock

92110

1

$18.02

In stock
