1991 Kawasaki KDX200 Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

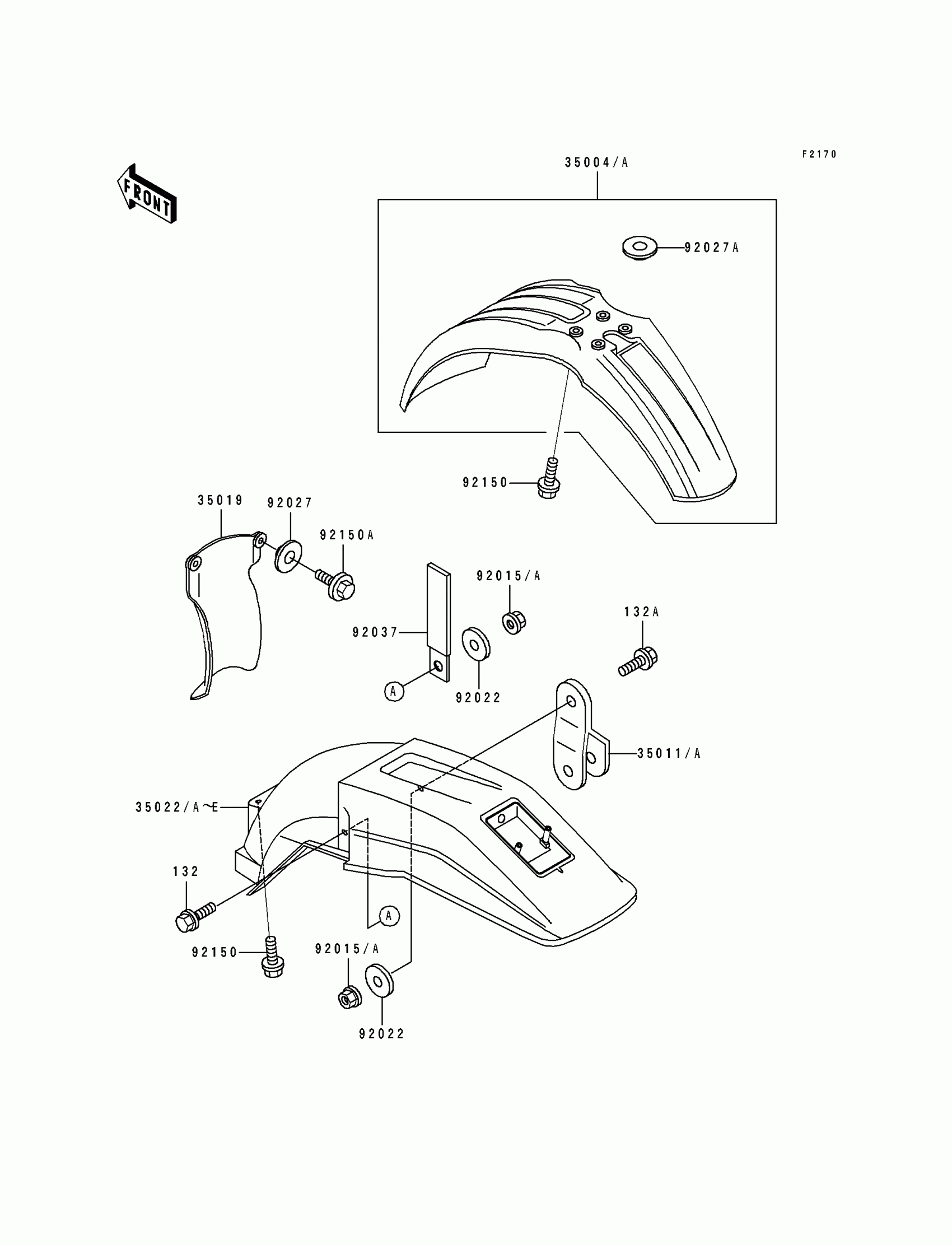

1991 Kawasaki KDX200 Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,P.WHITE

35004-1233-6F

1

$97.33

In stock

35004A

FENDER-FRONT,L.GREEN

35004-1233-6W

1
Out of stock

35011A

STAY,MUFFLER

35011-1534

1
Out of stock

35019

FLAP,AIR FILTER

35019-1159

1

$38.07

In stock

35022B

FENDER-COMP-REAR,P.WHITE

35022-1258-6F

1

$110.24

In stock

35022C

FENDER-COMP-REAR,L.GREEN

35022-1258-6W

1
Out of stock

35022E

FENDER-COMP-REAR,L.GREEN

35022-1259-6W

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1699

1

$4.34

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR

92027-1794

1

$3.43

In stock

92027A

COLLAR

92027-1936

1

$5.15

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

132

BOLT-FLANGED-SMALL,6X45

132G0645

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0650

1
Out of stock
