1991 Kawasaki KDX200 Step Diagram

← All diagrams

Find the part on the Step diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

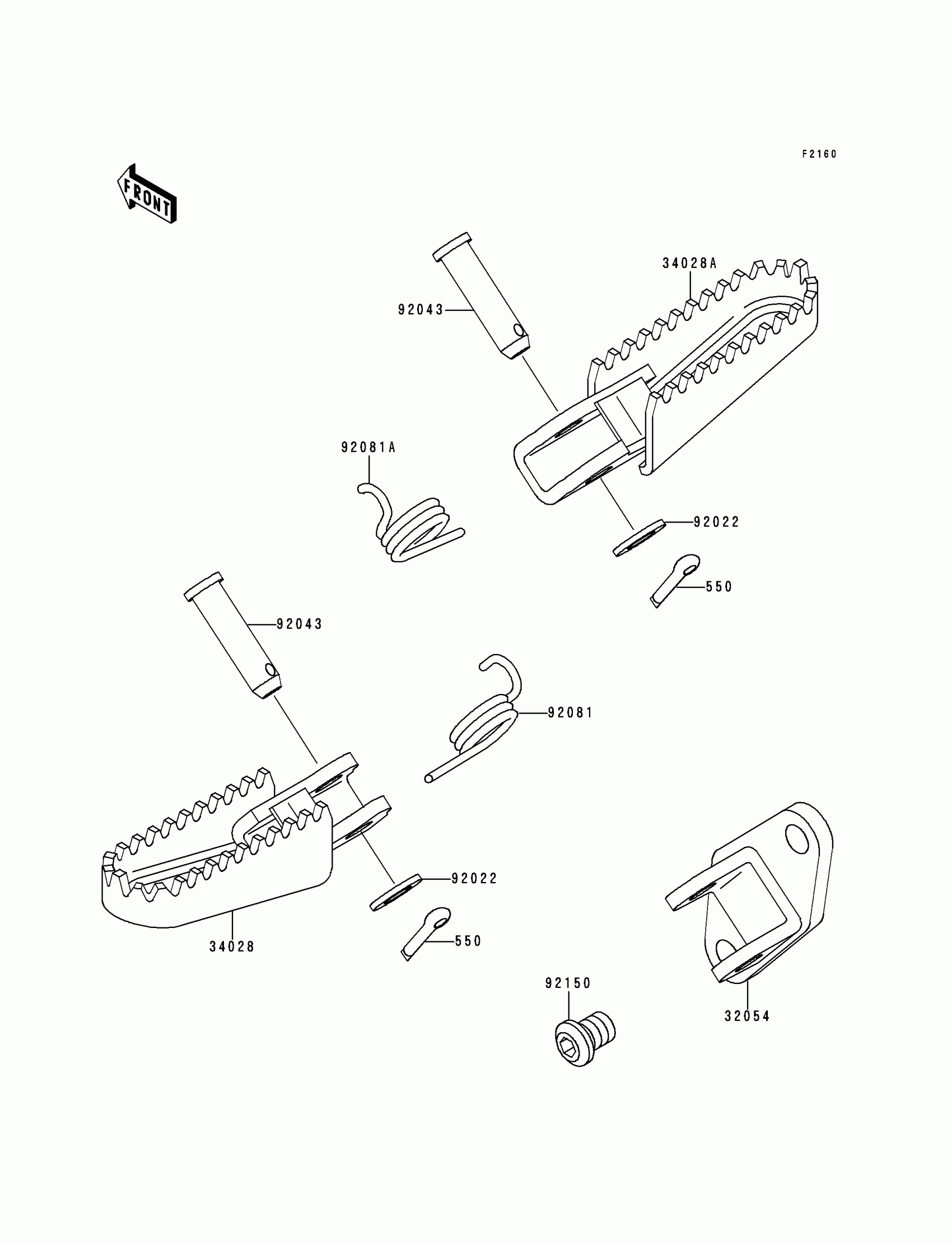

1991 Kawasaki KDX200 Step Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32054

BRACKET-STEP

32054-1173

1

$38.90

In stock

34028

STEP,LH

34028-1302

1
Out of stock

34028A

STEP,RH

34028-1303

1
Out of stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92043

PIN,10X35

92043-1217

1

$9.43

In stock

92081

SPRING,STEP,LH

92081-1606

1

$9.49

In stock

92081A

SPRING,STEP,RH

92081-1607

1

$9.49

In stock

92150

BOLT,SOCKET,10X16

92150-1111

1
Out of stock

550

1

$2.08

In stock
