1991 Kawasaki KDX200 Tail Lamp Diagram

← All diagrams

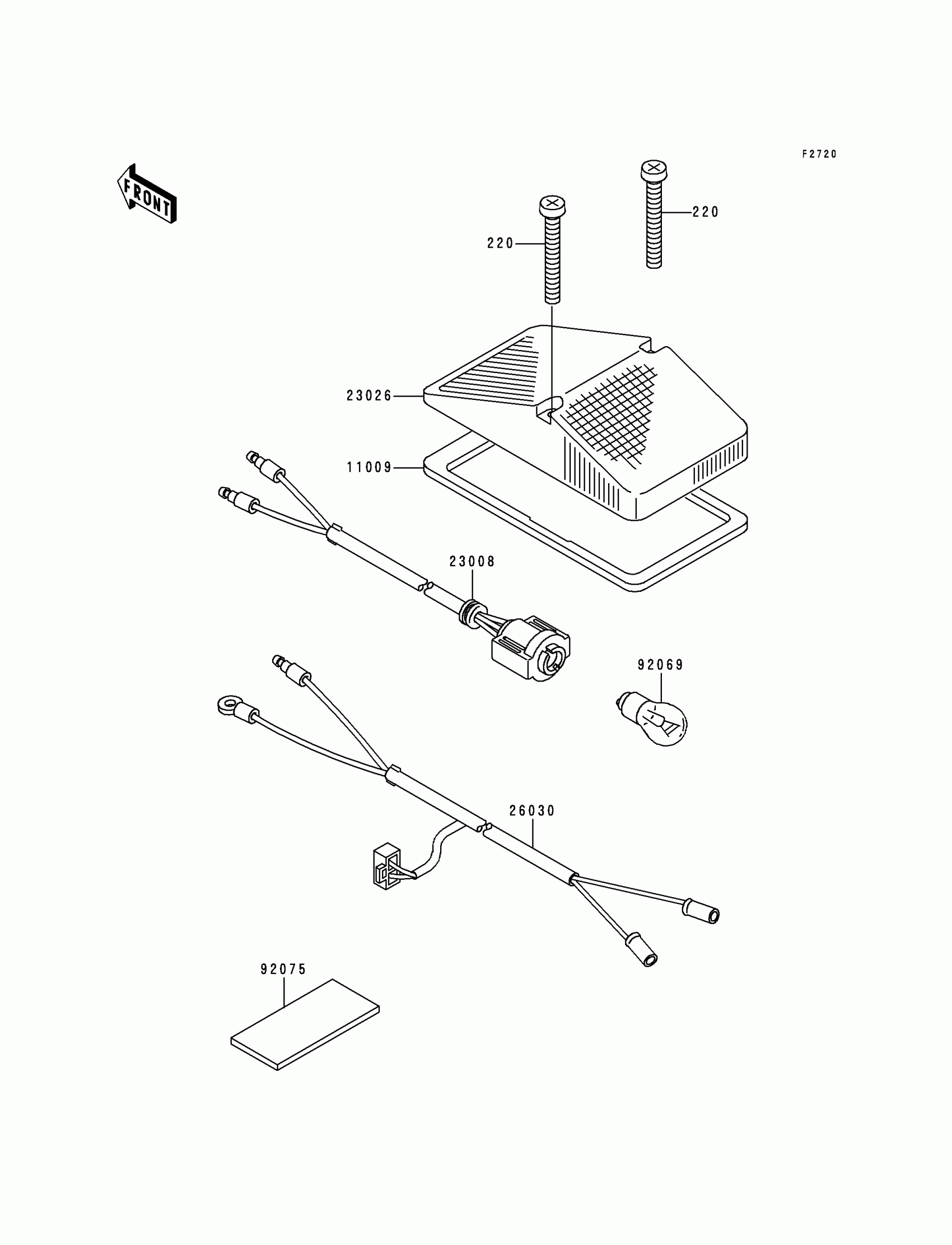

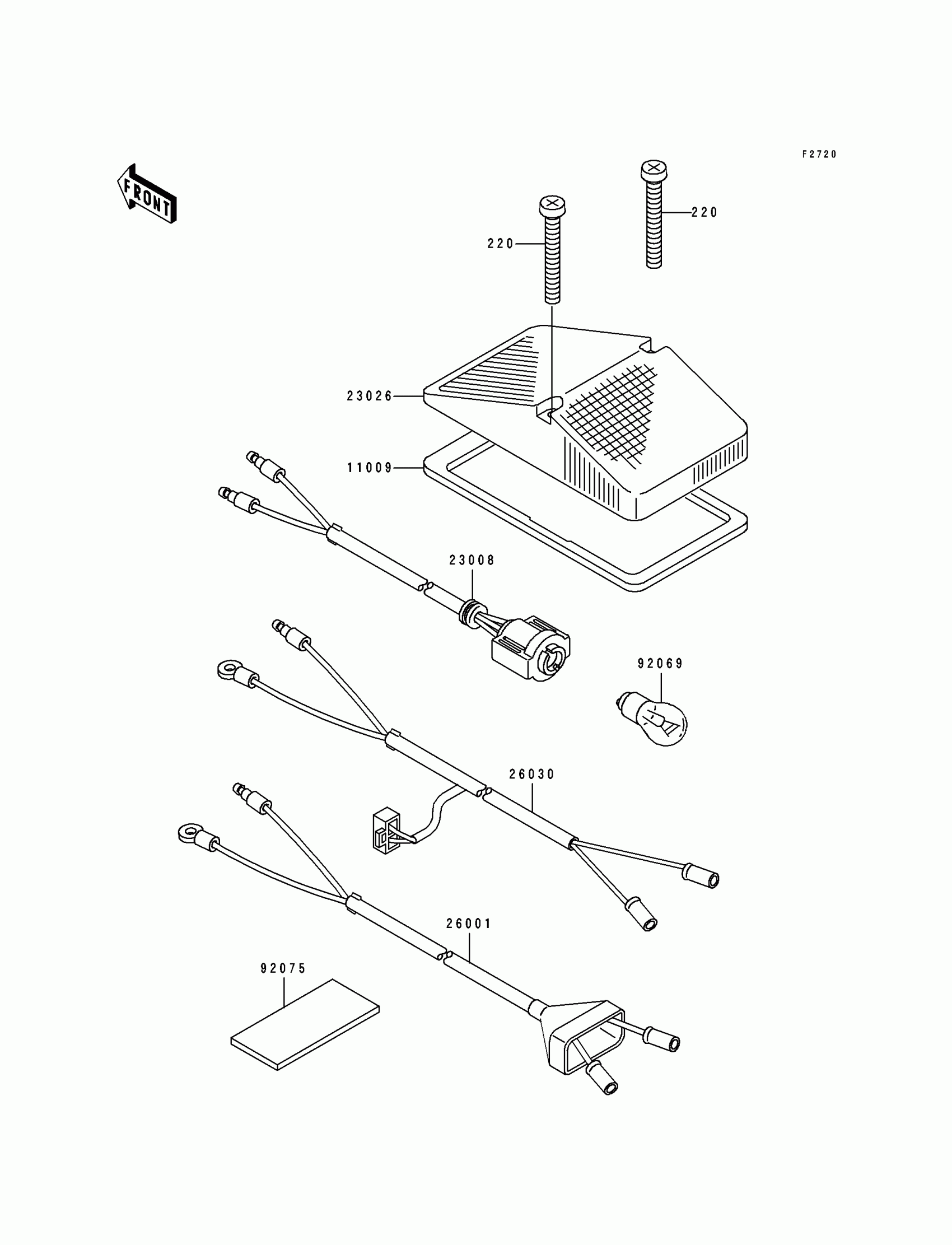

Find the part on the Tail Lamp diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KDX200 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP

11009-1762

1
Out of stock

23008

SOCKET-ASSY,TAIL LAMP

23008-1404

1
Out of stock

23026

LENS,TAIL LAMP

23026-1104

1
Out of stock

26030

HARNESS,TAIL LAMP

26030-1036

1
Out of stock

92069

BULB,12V 10W

92069-1072

1
Out of stock

92075

DAMPER,TAIL LAMP

92075-1625

1
Out of stock

220

SCREW-PAN-CROS

220B0445

1
Out of stock
