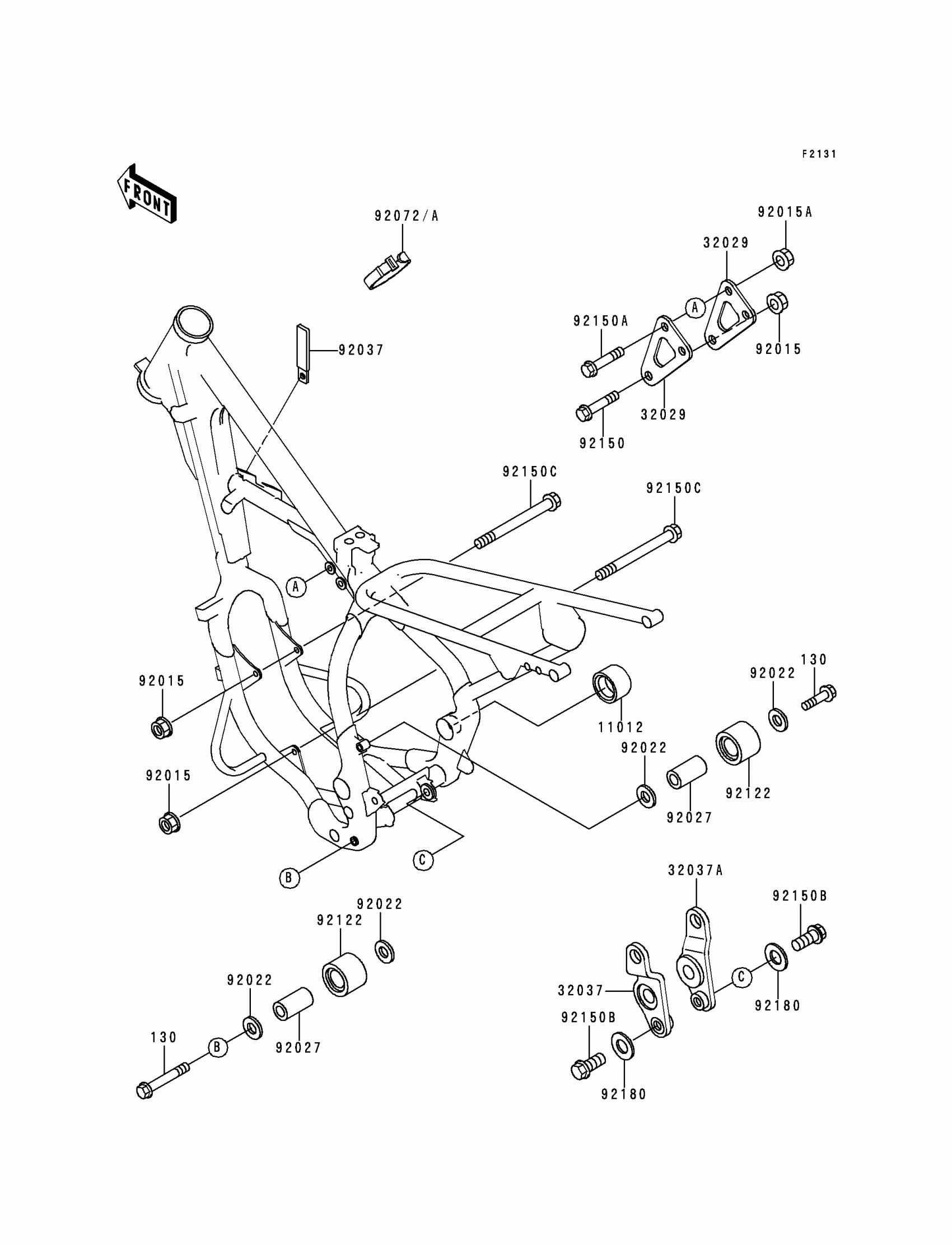

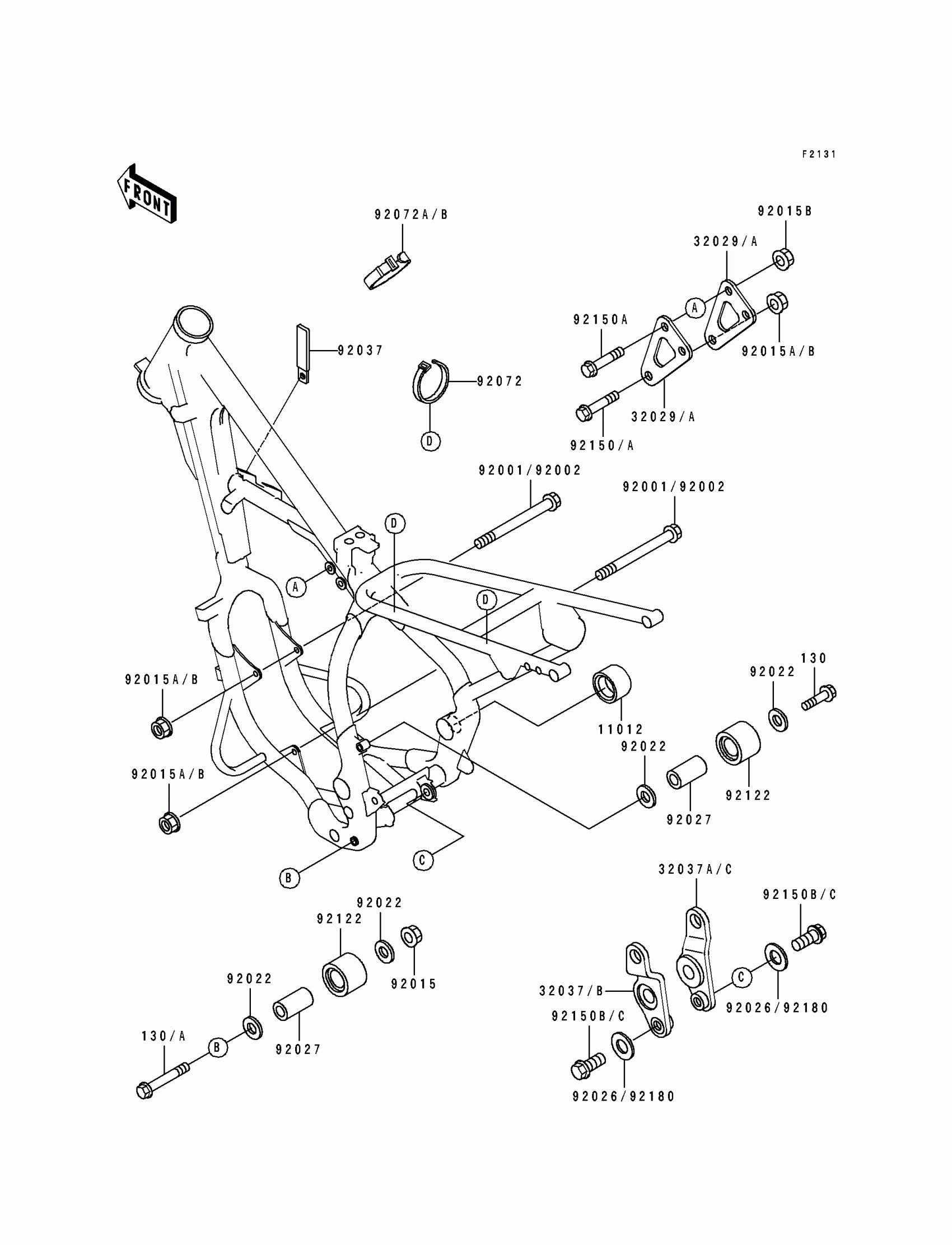

Find the part on the Frame Fitting diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KDX200 Frame Fitting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,AXLE NUT

11012-1591

1

$4.39

In stock

32029A

BRACKET-ENGINE,UPP

32029-1688

1
Out of stock

32037B

1

$48.96

In stock

32037C

1

$48.96

In stock

92002

BOLT,FLANGED,10X105

92002-1491

1

$9.19

In stock

92015A

NUT,FLANGED,10MM

92015-1502

1

$8.16

In stock

92015B

1

$3.38

In stock

92022

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1

$7.25

In stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92072A

BAND,L=149

92072-031

1

$3.97

In stock

92072B

BAND,L=218

92072-032

1

$3.97

In stock

92122

ROLLER,CHAIN GUIDE

92122-1153

1

$8.44

In stock

92150

BOLT,FLANGED,10X50

92150-1125

1

$5.84

In stock

92150A

BOLT,FLANGED,8X50

92150-1214

1

$7.14

In stock

92150C

BOLT,FLANGED,12X27

92150-1359

1

$6.24

In stock

92180

SHIM,12.5X24X0.5

92180-1060

1

$3.53

In stock

130

BOLT-FLANGED,8X40

130G0840

1
Out of stock
