1985 Kawasaki KDX200 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

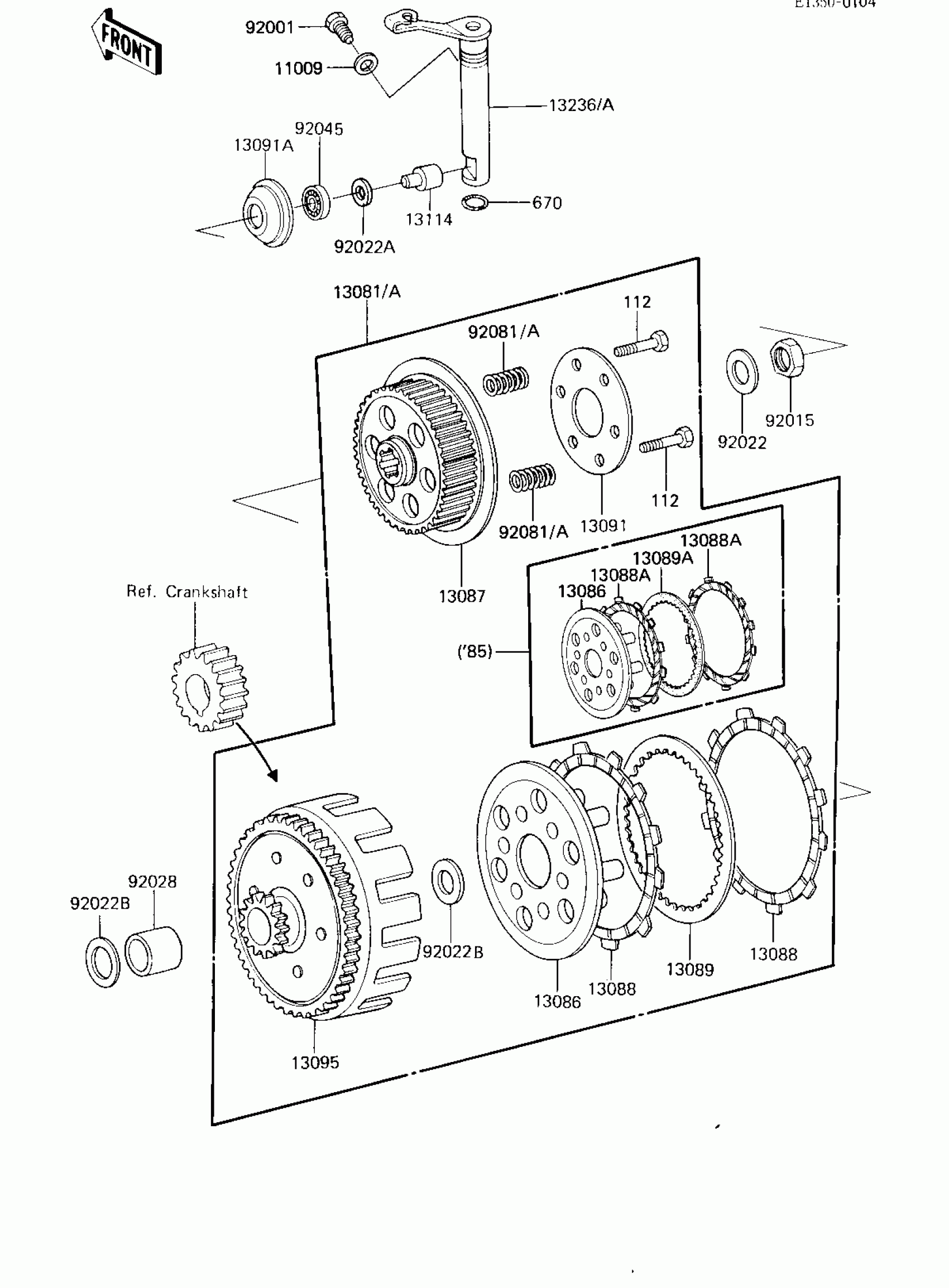

1985 Kawasaki KDX200 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,6X14X0.8

92065-092

1

$3.46

In stock

13081A

CLUTCH-ASSY

13081-1191

1
Out of stock

13086

WHEEL,CLUTCH

13086-1001

1
Out of stock

13087

HUB-CLUTCH

13087-1024

1
Out of stock

13088A

PLATE-FRICTION

13088-1056

1
Out of stock

13089A

PLATE-CLUTCH

13089-1065

1
Out of stock

13091

HOLDER,CLUTCH

13091-015

1
Out of stock

13091A

1

$13.39

In stock

13095

HOUSING-COMP-CLUTCH

13095-1054

1
Out of stock

13114

PUSHER-CLUTCH

13114-1008

1
Out of stock

13236A

LEVER-COMP

13236-1112

1
Out of stock

92001

BOLT,CLUTCH RELEASE

92003-130

1
Out of stock

92015

NUT,16MM

92015-1176

1
Out of stock

92022

WASHER,16.8X32X1.6

92022-1277

1
Out of stock

92022A

WASHER,7X12.5X0.8

92022-1290

1

$3.14

In stock

92022B

WASHER,20.5X30X1.4

92022-223

1
Out of stock

92028

BUSHING,20X25X24.1

92028-1196

1
Out of stock

92045

BEARING-BALL,#627

92045-026

1

$18.51

In stock

92081

SPRING,CLUTCH

92081-123

1
Out of stock

112

BOLT

110G0520

1
Out of stock

670

O RING,9.8X1.9

670B1510

1

$3.43

In stock
