1985 Kawasaki KDX200 Gear Change Drum & Forks Diagram

← All diagrams

Find the part on the Gear Change Drum & Forks diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

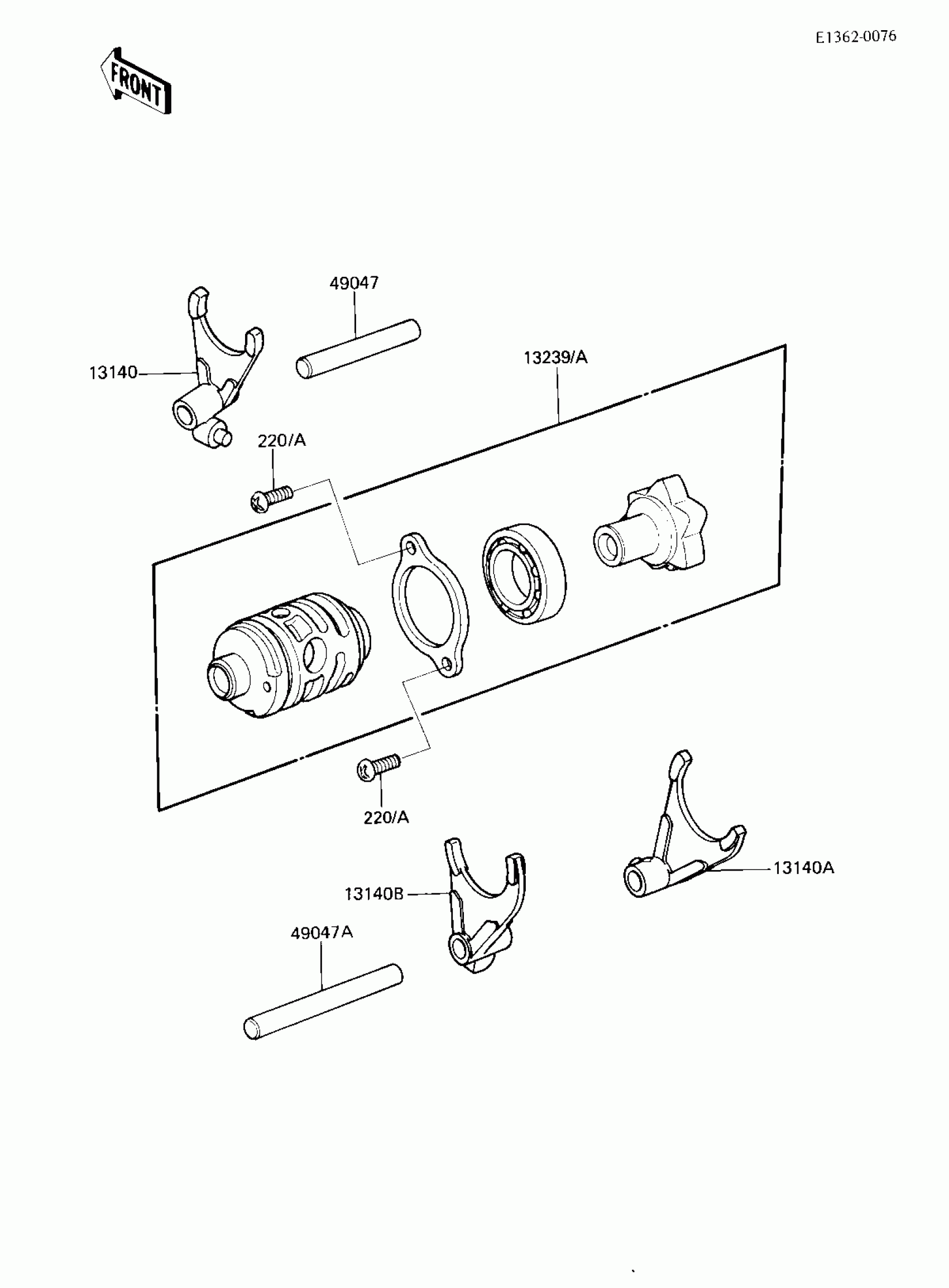

1985 Kawasaki KDX200 Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,5TH&TOP

13140-1074

1

$96.53

In stock

13140A

FORK-SHIFT,LOW&4TH

13140-1075

1
Out of stock

13140B

FORK-SHIFT,2ND&3RD

13140-1076

1
Out of stock

13239A

DRUM-ASSY-CHANGE

13239-1101

1
Out of stock

49047

ROD-SHIFT,8X58

49047-1017

1

$14.88

In stock

49047A

ROD-SHIFT,8X79.5

49047-1018

1

$14.02

In stock

220A

1

$1.32

In stock
