1985 Kawasaki KDX200 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

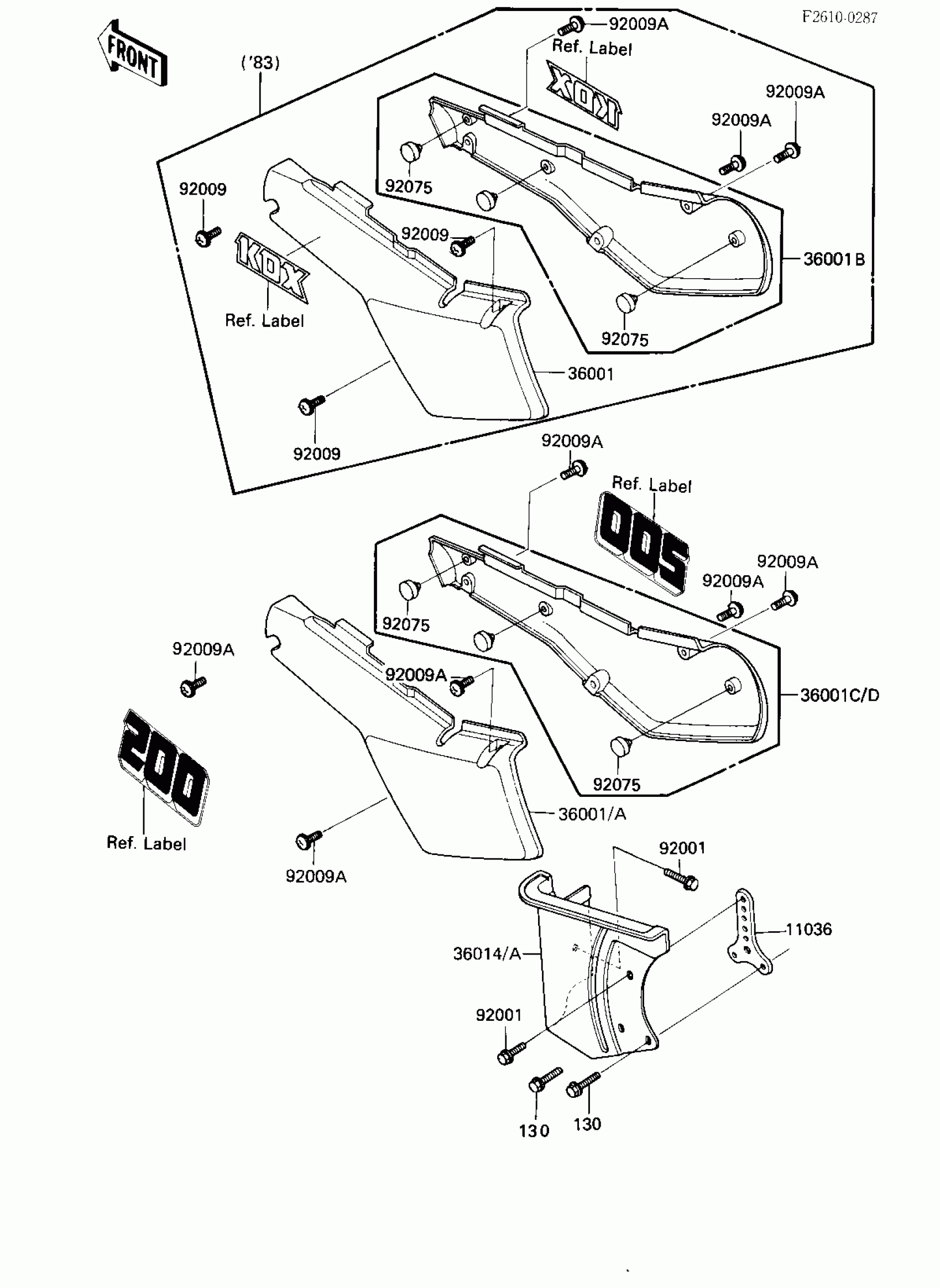

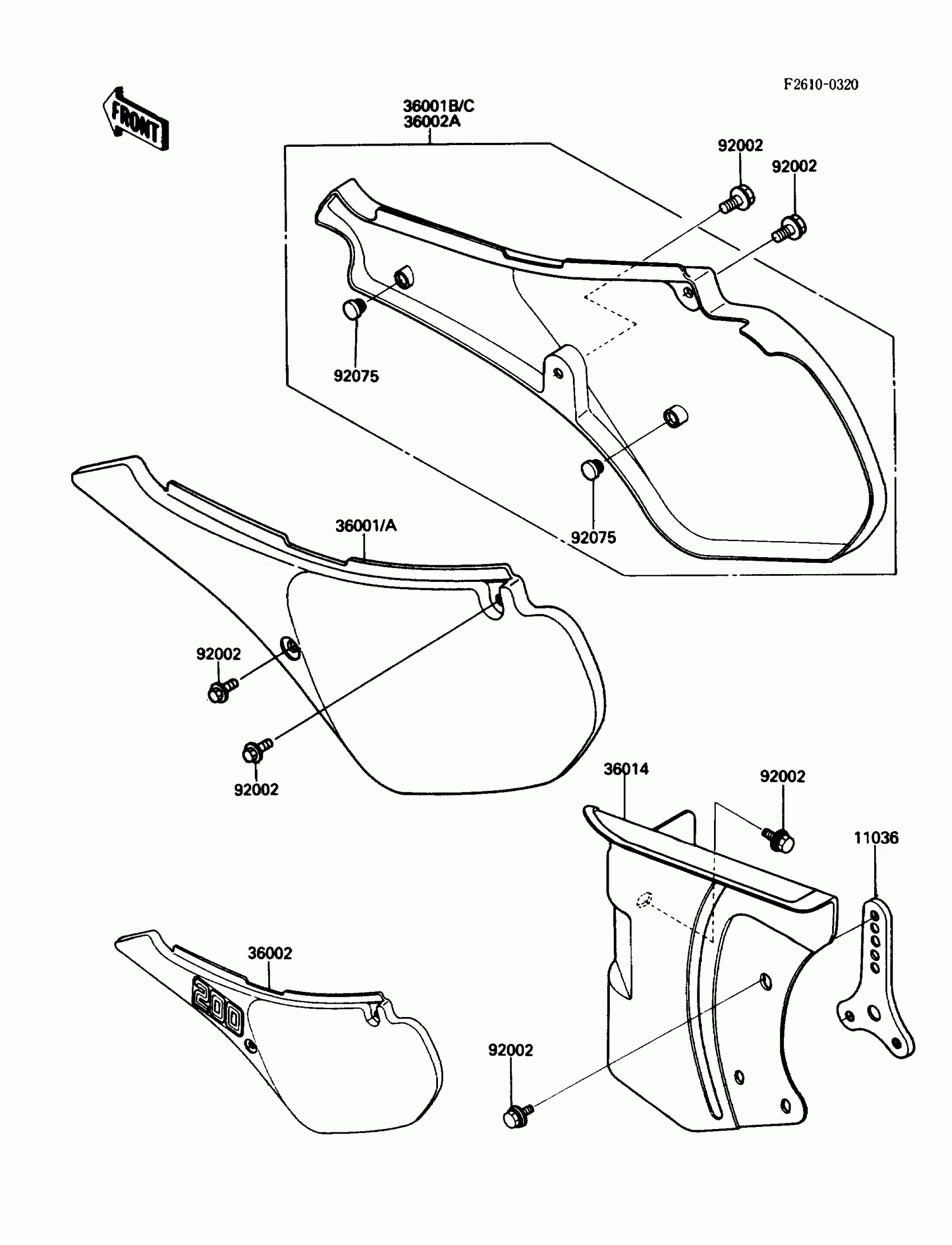

1985 Kawasaki KDX200 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,CHAIN CASE

11036-1743

1
Out of stock

36001

COVER-SIDE,LH,L.GREEN

36001-1177-AC

1
Out of stock

36001C

COVER-SIDE,RH,L.GREEN

36001-1251-AC

1
Out of stock

36014

CASE-CHAIN

36014-1117

1

$74.45

In stock

36014A

CASE-CHAIN

36014-1117

1

$74.45

In stock

92001

BOLT,6X16

92002-1136

1
Out of stock

92009A

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92075

DAMPER

92075-1598

1

$6.82

In stock

130

BOLT-FLANGED,6X45

130G0645

1
Out of stock
