1985 Kawasaki KDX200 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

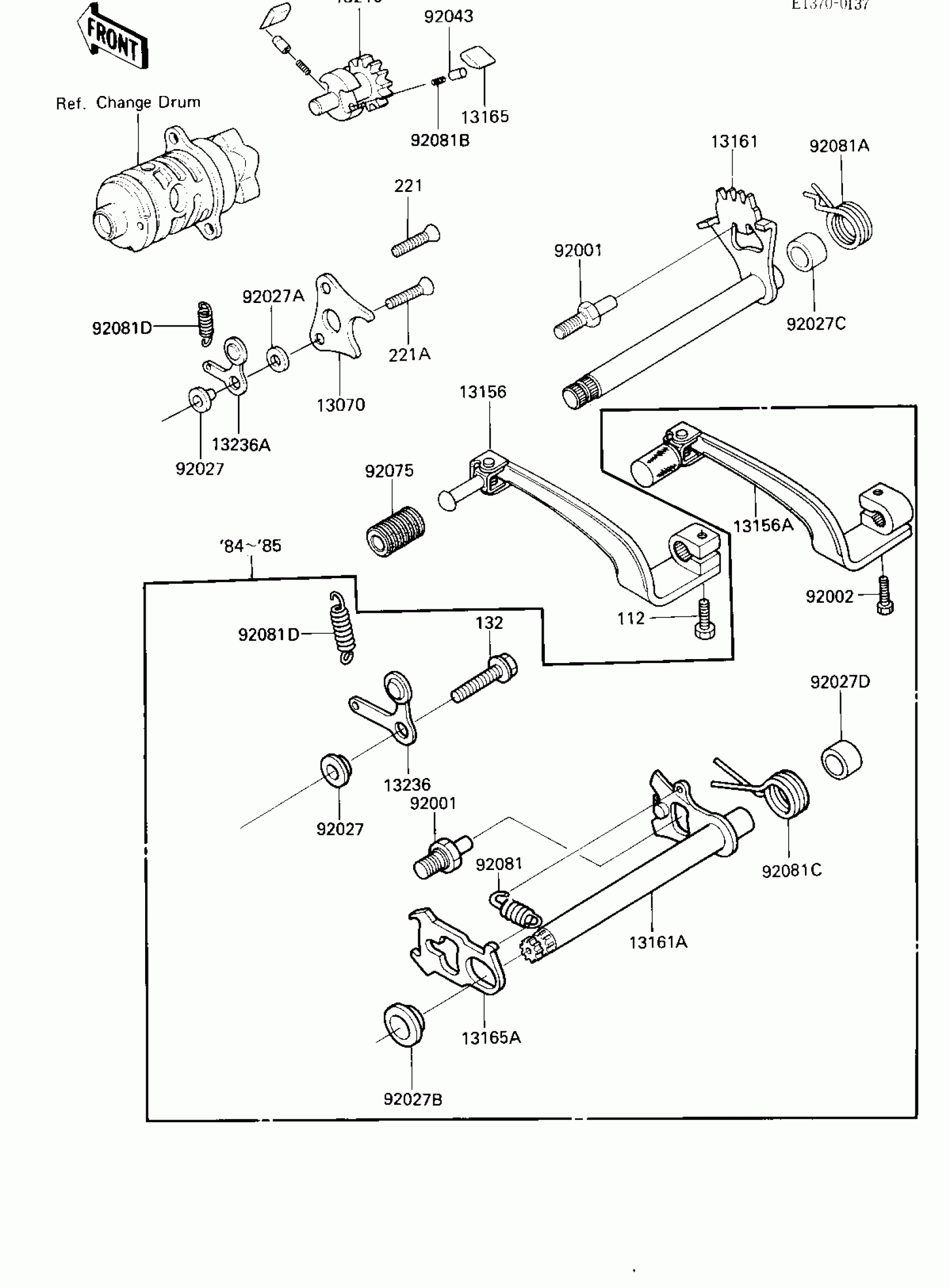

1985 Kawasaki KDX200 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13156A

LEVER-CHANGE,PEDAL

13156-1164

1
Out of stock

13161A

LEVER-COMP-CHANGE SHAFT

13161-1101

1
Out of stock

13165A

PAWL,CHANGE LEVER

13165-1119

1
Out of stock

92001

BOLT,RETURN SPRING

92001-1401

1
Out of stock

92002

BOLT-FLANGED,6X25

130P0625

1
Out of stock

92027

COLLAR

92027-1248

1
Out of stock

92027B

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

1
Out of stock

92027D

COLLAR,L=10.6

92027-1916

1
Out of stock

92081

SPRING,CHANGE LEVER

92081-076

1
Out of stock

92081C

SPRING,CHANGE SHAFT RETURN

92081-1716

1
Out of stock

92081D

SPRING,CHANGE DRUM LEVER

92083-012

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock
