1985 Kawasaki KDX200 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

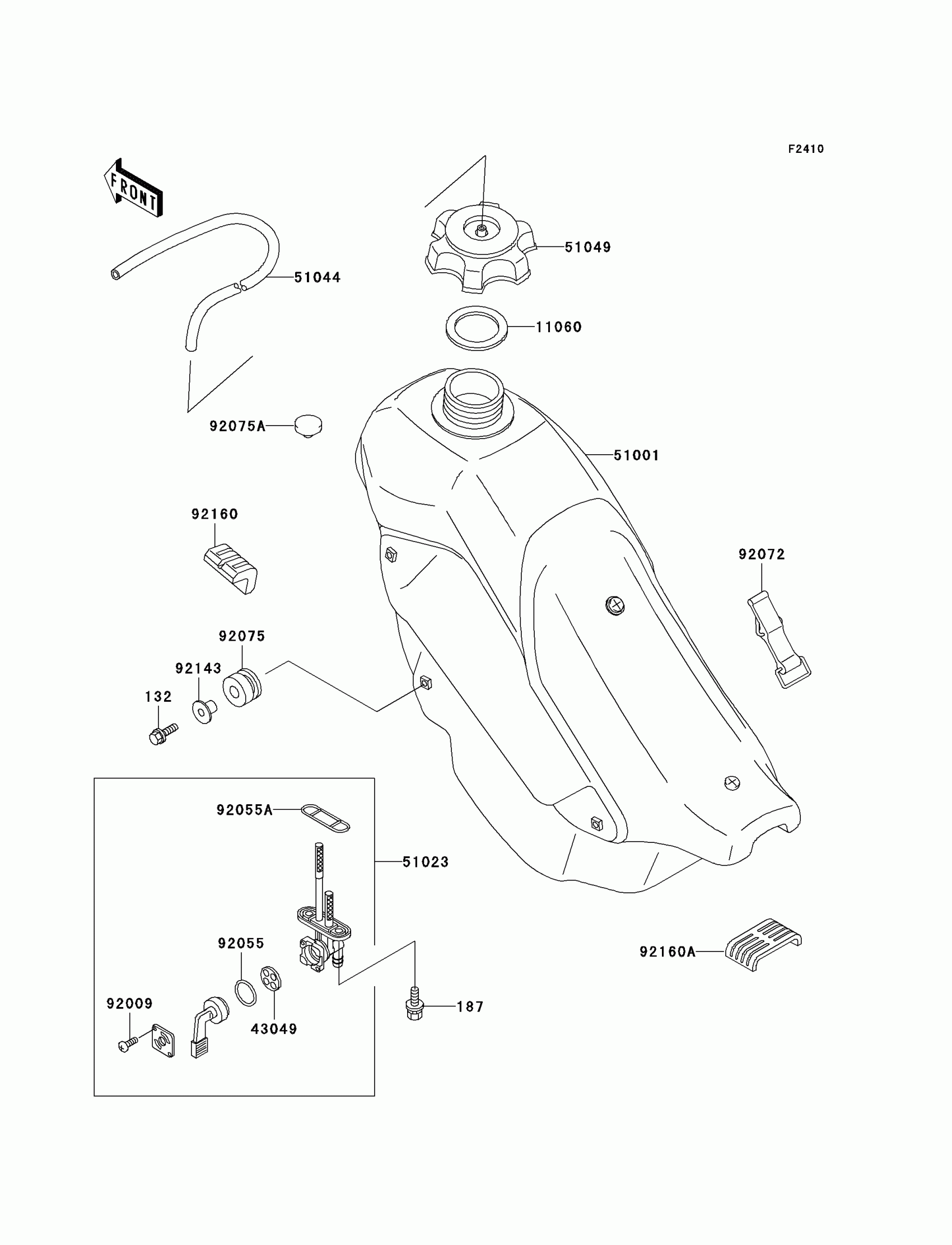

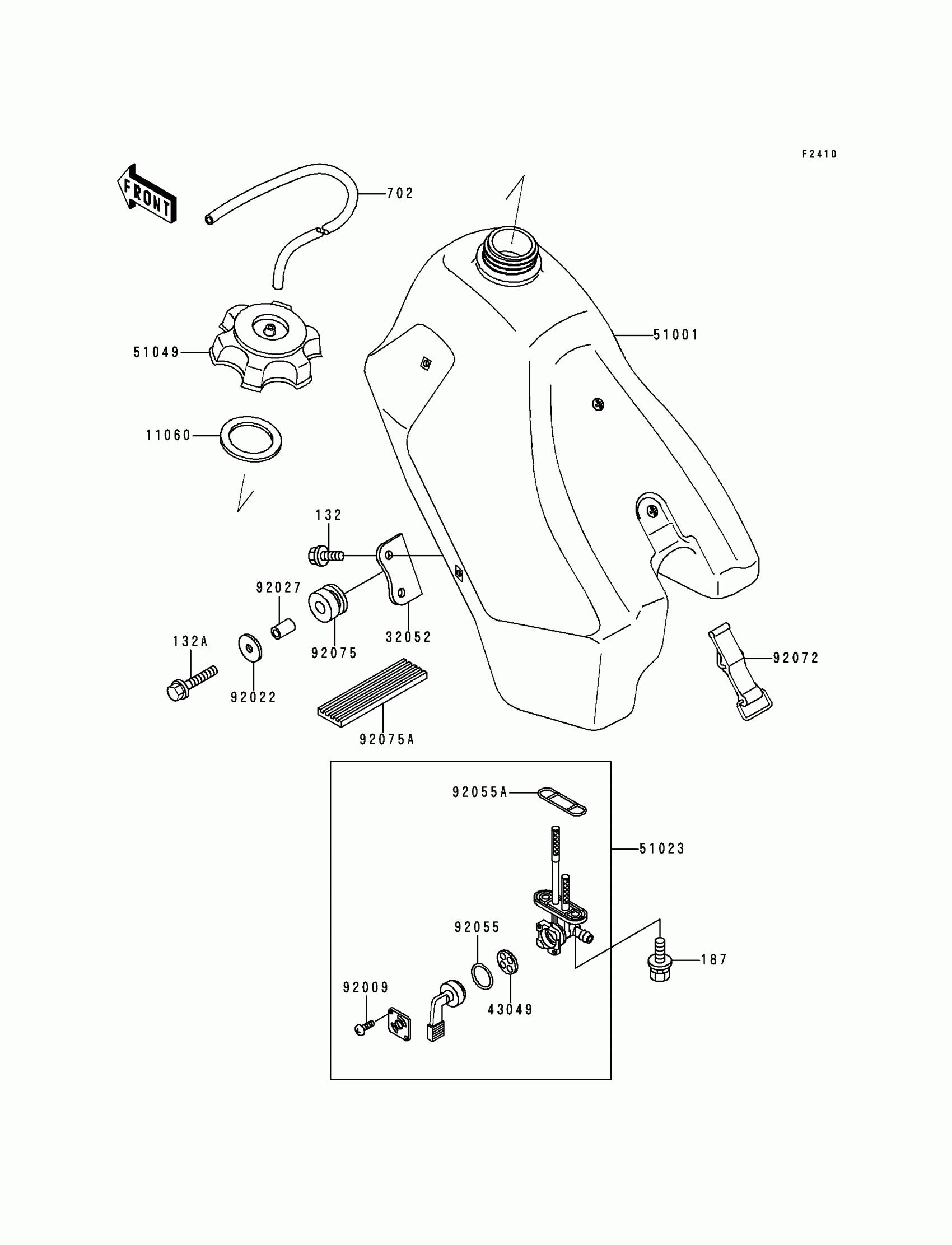

1985 Kawasaki KDX200 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FUEL TANK CAP

11009-1276

1
Out of stock

32052

BRACKET-TANK

32052-1104

1
Out of stock

51002

TANK-COMP-FUEL,L.GREEN

51002-5004-6W

1

$522.98

In stock

51023

TAP-ASSY

51023-1045

1
Out of stock

51049

CAP-TANK,FUEL

51049-1007

1
Out of stock

92001

BOLT,6X162

92001-1501

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92027

COLLAR

92027-1745

1

$6.82

In stock

92037

CLAMP,TUBE

92037-1377

1
Out of stock

92059

TUBE,5X9X250

92059-1258

1

$11.19

In stock

92075

DAMPER

92075-1362

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-1429

1

$71.29

In stock

130

BOLT-FLANGED,6X12

130G0612

1
Out of stock

187

BOLT-UPSET-WSP

187B0616

1
Out of stock
