1991 Kawasaki KDX200 Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Change Drum/shift Fork diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

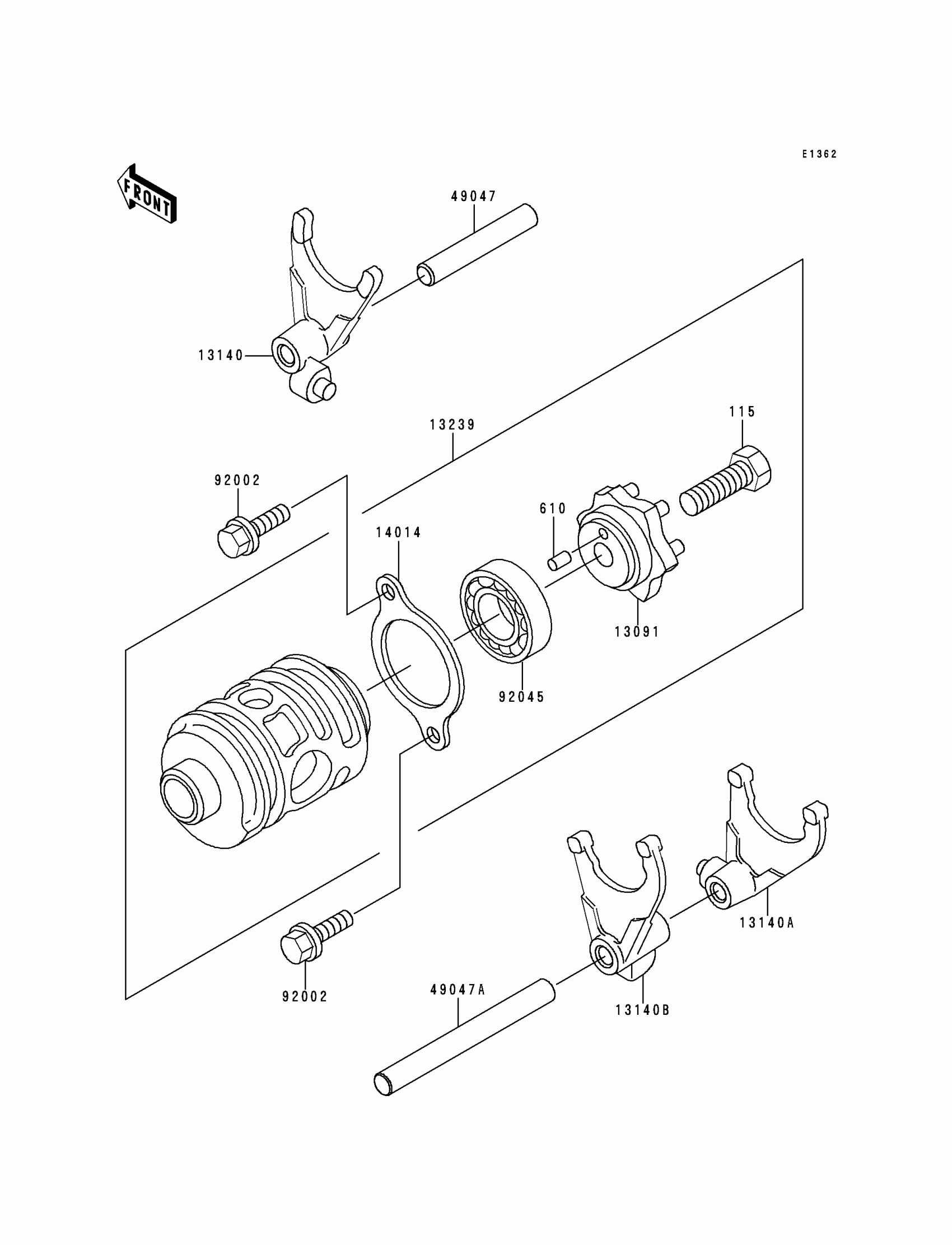

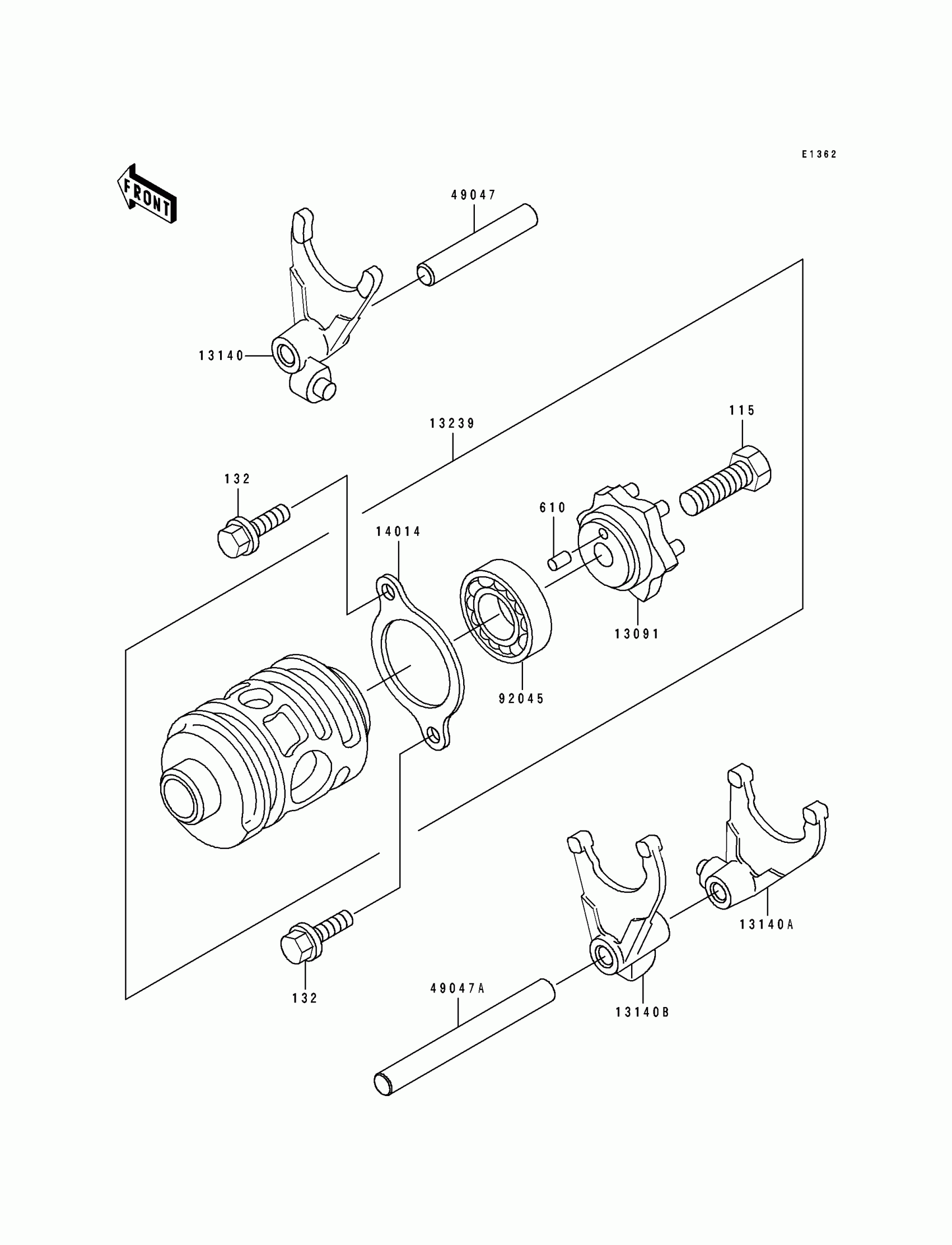

1991 Kawasaki KDX200 Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM

13091-1364

1

$123.69

In stock

13140

FORK-SHIFT,5TH&TOP

13140-1074

1

$96.53

In stock

13140A

FORK-SHIFT,LOW&4TH

13140-1143

1
Out of stock

13140B

FORK-SHIFT,2ND&3RD

13140-1144

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1125

1
Out of stock

14014

PLATE-POSITION

14014-1020

1
Out of stock

49047

ROD-SHIFT,8X58

49047-1017

1

$14.88

In stock

49047A

ROD-SHIFT,8X82.5

49047-1065

1

$14.88

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

115

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0614

1
Out of stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
