1991 Kawasaki KDX200 Side Cover/chain Case Diagram

← All diagrams

Find the part on the Side Cover/chain Case diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

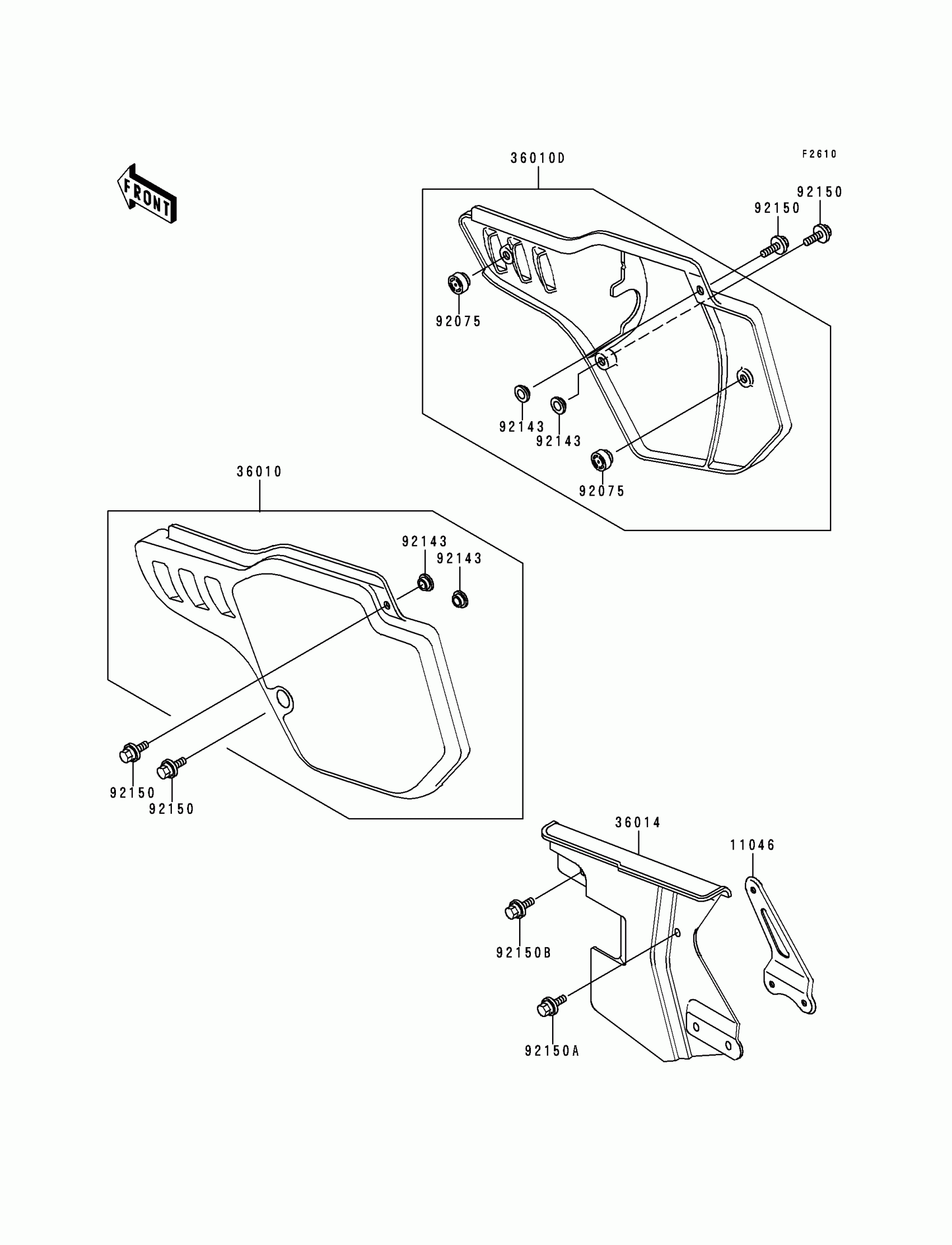

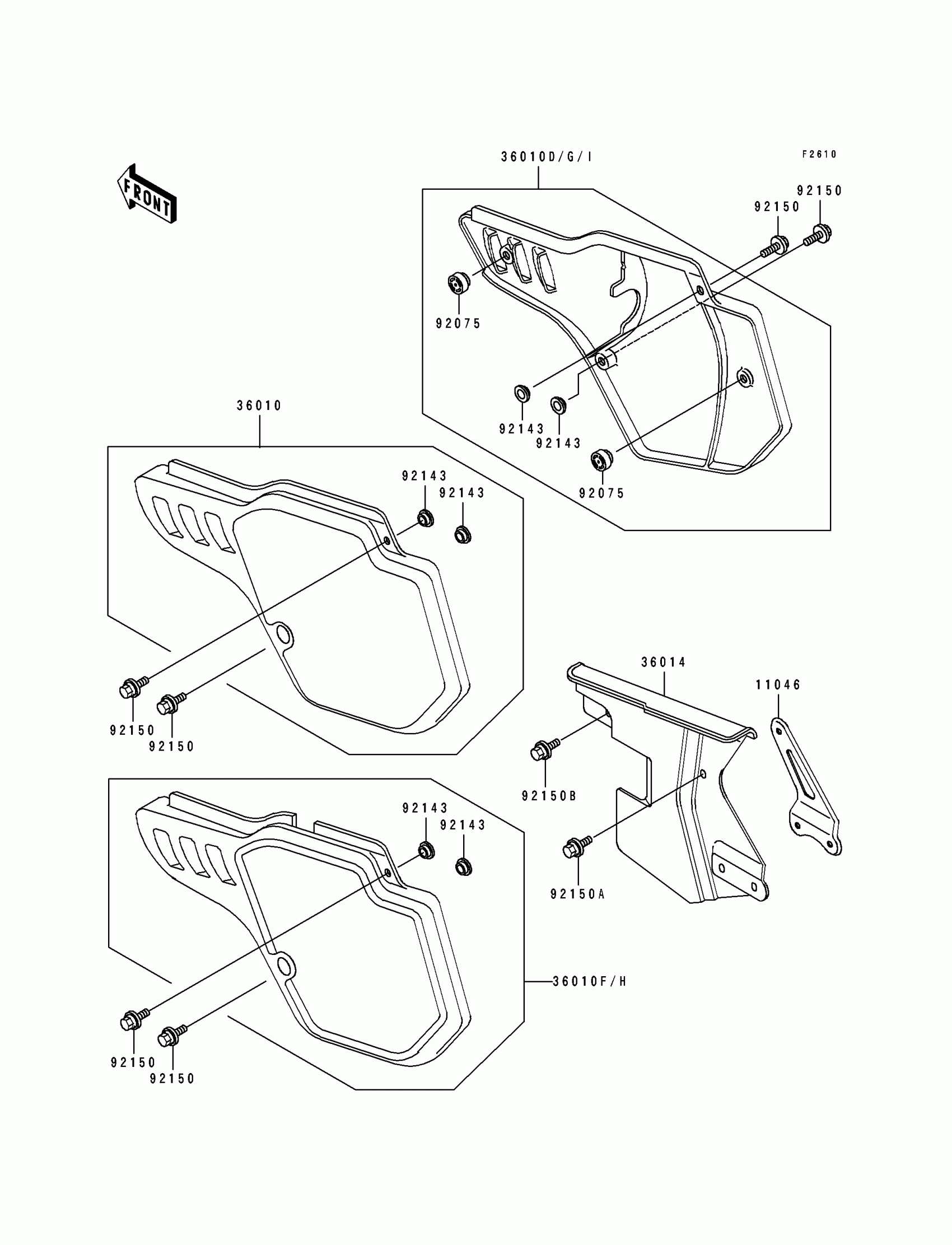

1991 Kawasaki KDX200 Side Cover/chain Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,CHAIN CASE

11046-1411

1
Out of stock

36010

COVER-SIDE,LH,L.GREEN

36010-5023-6W

1

$103.70

In stock

36010D

COVER-SIDE,RH,L.GREEN

36010-5187-6W

1

$103.70

In stock

36010H

COVER-SIDE,LH,P.WHITE

36010-5468-6F

1
Out of stock

36010I

COVER-SIDE,RH,P.WHITE

36010-5469-6F

1
Out of stock

36014

CASE-CHAIN

36014-1154

1
Out of stock

92075

DAMPER

92075-1598

1

$6.82

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,6X12

92150-1435

1

$3.43

In stock

92150B

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock
← Gear Change Mechanism Transmission →

More Drive & Transmission diagrams
