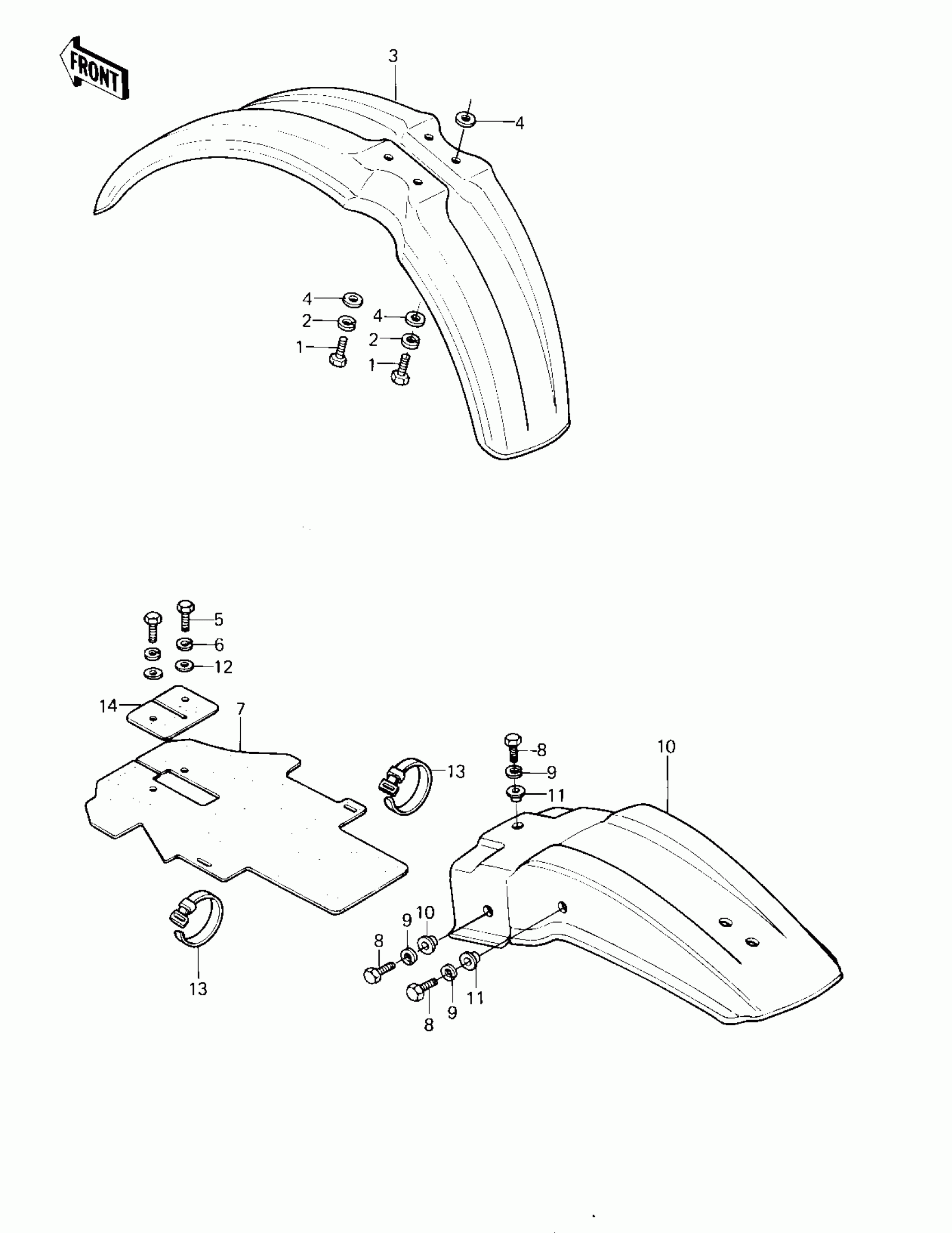

Kawasaki KDX175 FENDERS ('80 A1) Diagram

#

Description
Price

1

BOLT-UPSET,6X16

112G0616

$1.10

2

WASHER SPRING 6MM

461F0600

$0.69

3

FENDER-FRONT,L.GREEN

35004-1233-6W

Unavailable

4

WASHER,6.5X20X1.6

92022-125

$1.40

5

BOLT-UPSET,6X12

112G0612

$1.45

6

WASHER SPRING 6MM

461F0600

$0.69

7

FLAP,REAR FENDER

35019-1017

Unavailable

8

BOLT-UPSET,6X16

112G0616

$1.10

9

WASHER SPRING 6MM

461F0600

$0.69

10

FENDER-RR,L.GREEN

35022-1050-6W

$67.71

11

COLLAR,L=5.1

92027-1260

$6.22

12

WASHER,6.5X20X1.6

92022-125

$1.40

13

BAND,L=149

92072-031

$5.00

14

FLAP,REAR FENDER

35019-1019

Unavailable
