1980 Kawasaki KDX175 Footrests/stand Diagram

← All diagrams

Find the part on the Footrests/stand diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

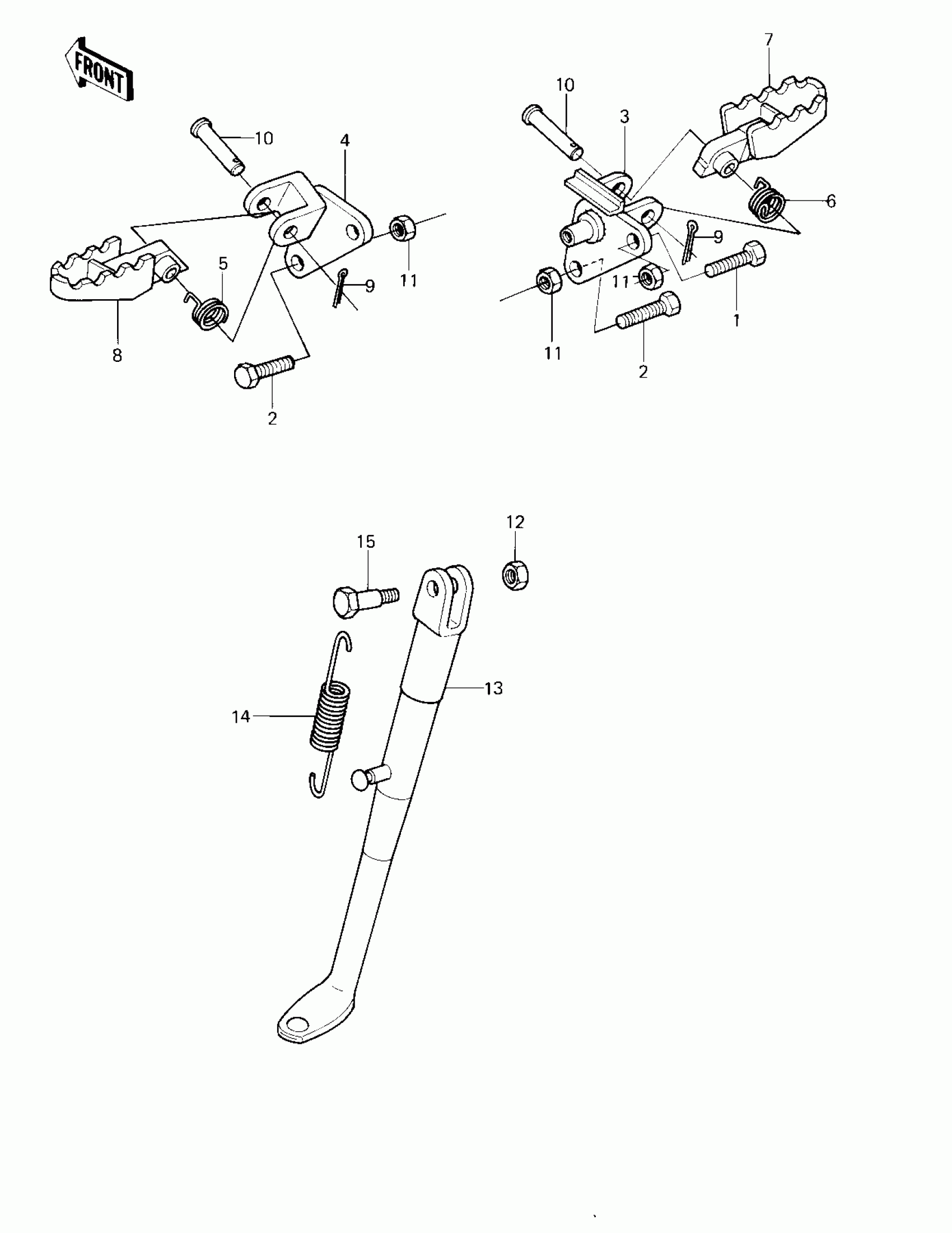

1980 Kawasaki KDX175 Footrests/stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,8X50

92001-1439

1
Out of stock

2

BOLT,HEX HEAD,8X50

110P0850

1
Out of stock

3

HOLDER-STEP,RH

34003-1088

1
Out of stock

4

HOLDER,FOOTRST STEP,

34003-1054

1
Out of stock

5

SPRING,L.H,FOOTREST

92081-1254

1
Out of stock

6

SPRING,R.H,FOOTREST

92081-1255

1
Out of stock

7

STEP

34028-1033

1
Out of stock

8

STEP

34028-1034

1
Out of stock

9

PIN-COTTER,2.5X18

550D2518

1
Out of stock

10

PIN,FOOTRST STEP FIT

92043-1069

1
Out of stock

11

NUT,LOCK,8MM

92015-1124

1
Out of stock

12

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

13

STAND-SIDE

34024-1041

1
Out of stock

14

SPRING,STAND

34025-008

1
Out of stock

15

BOLT,SIDE STAND

92003-157

1
Out of stock
