1980 Kawasaki KDX175 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

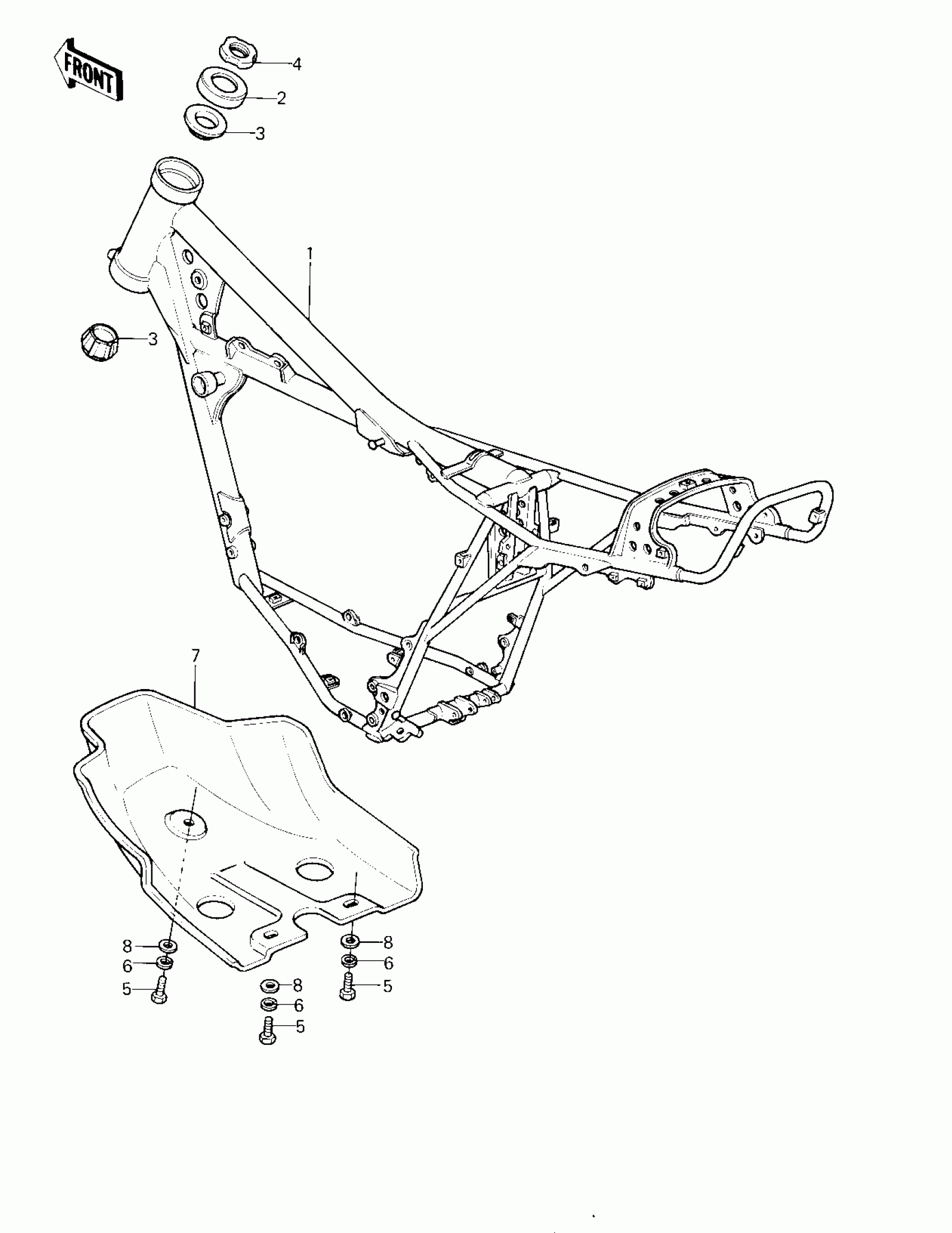

1980 Kawasaki KDX175 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

32002-1115

1

$678.60

In stock

2

CAP,STEERING STEM

46098-015

1
Out of stock

3

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

4

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

5

BOLT-UPSET,6X16

112G0616

1
Out of stock

6

WASHER SPRING 6MM

461F0600

1
Out of stock

7

GUARD,ENGINE

55020-1040

1
Out of stock

8

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock
