1980 Kawasaki KDX175 Taillight/chassis Electrical Equipment ( Diagram

← All diagrams

Find the part on the Taillight/chassis Electrical Equipment ( diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

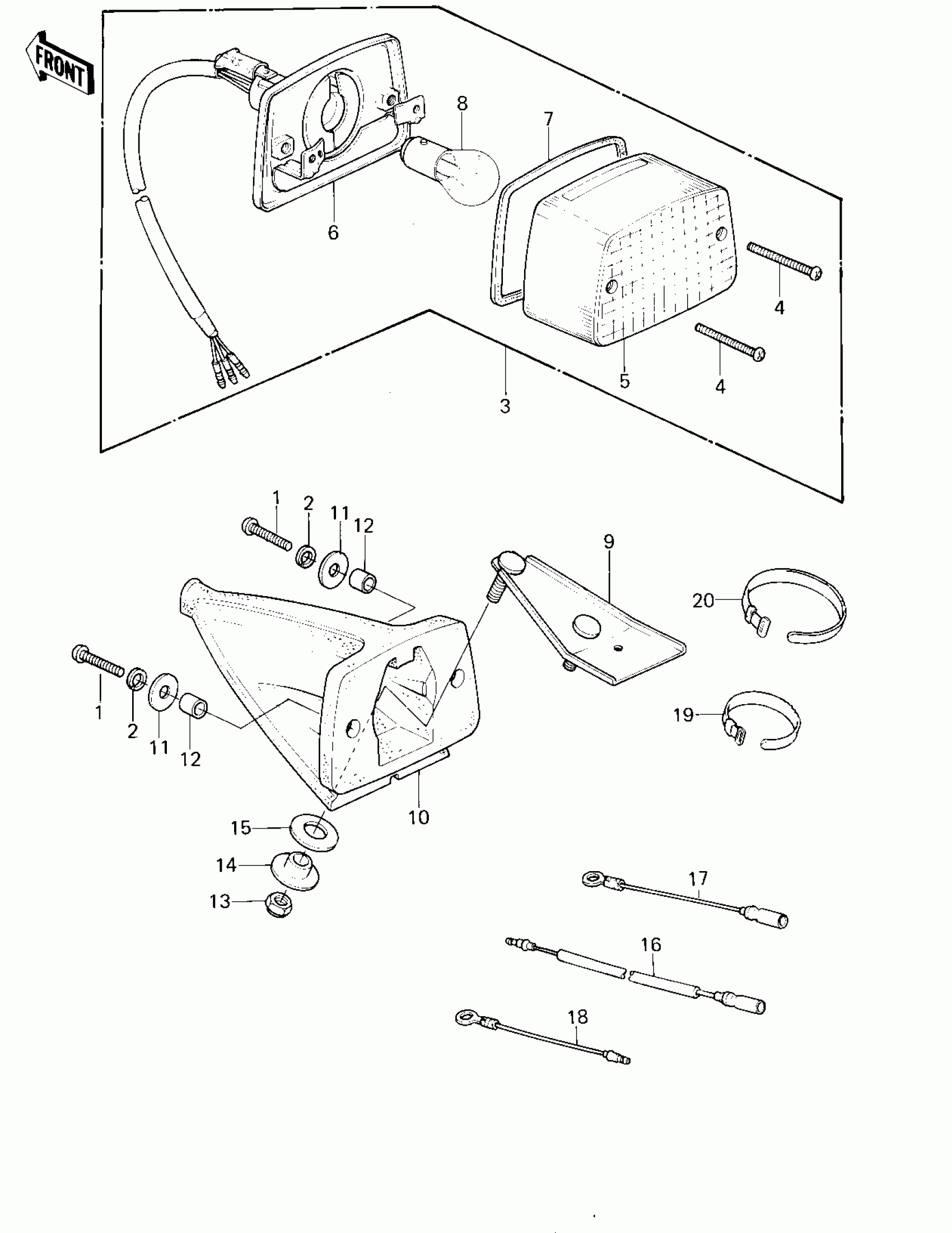

1980 Kawasaki KDX175 Taillight/chassis Electrical Equipment ( Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1.73

In stock

2

WASHER SPRING 5MM

461F0500

1
Out of stock

3

LAMP,TAIL

23025-075

1
Out of stock

4

SCREW-PAN-CROS

220B0330

1
Out of stock

5

LENS,TAIL LAMP

23026-040

1
Out of stock

6

CASE,TAIL LAMP

23027-044

1

$91.23

In stock

7

GASKET,TAIL LIGHT

23028-020

1
Out of stock

8

BULB,6V 17/5.3W

92069-028

1
Out of stock

9

BRACKET,TAIL LAMP

23036-4001

1
Out of stock

10

BODY,TAIL LAMP

23069-4001

1
Out of stock

11

WASHER,TAIL LAMP

92022-4001

1
Out of stock

12

COLLAR,TAIL LAMP

92027-4002

1
Out of stock

13

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

14

COLLAR

92027-1045

1

$4.37

In stock

15

DAMPER RUBBER

92075-118

1
Out of stock

16

WIRE,LEAD

26011-1067

1

$19.98

In stock

17

WIRE,LEAD

26011-1068

1

$3.78

In stock

18

WIRE,LEAD

26011-1069

1
Out of stock

19

BAND,L=123

92072-030

1

$3.97

In stock

20

BAND,L=186

92072-056

1

$3.97

In stock
