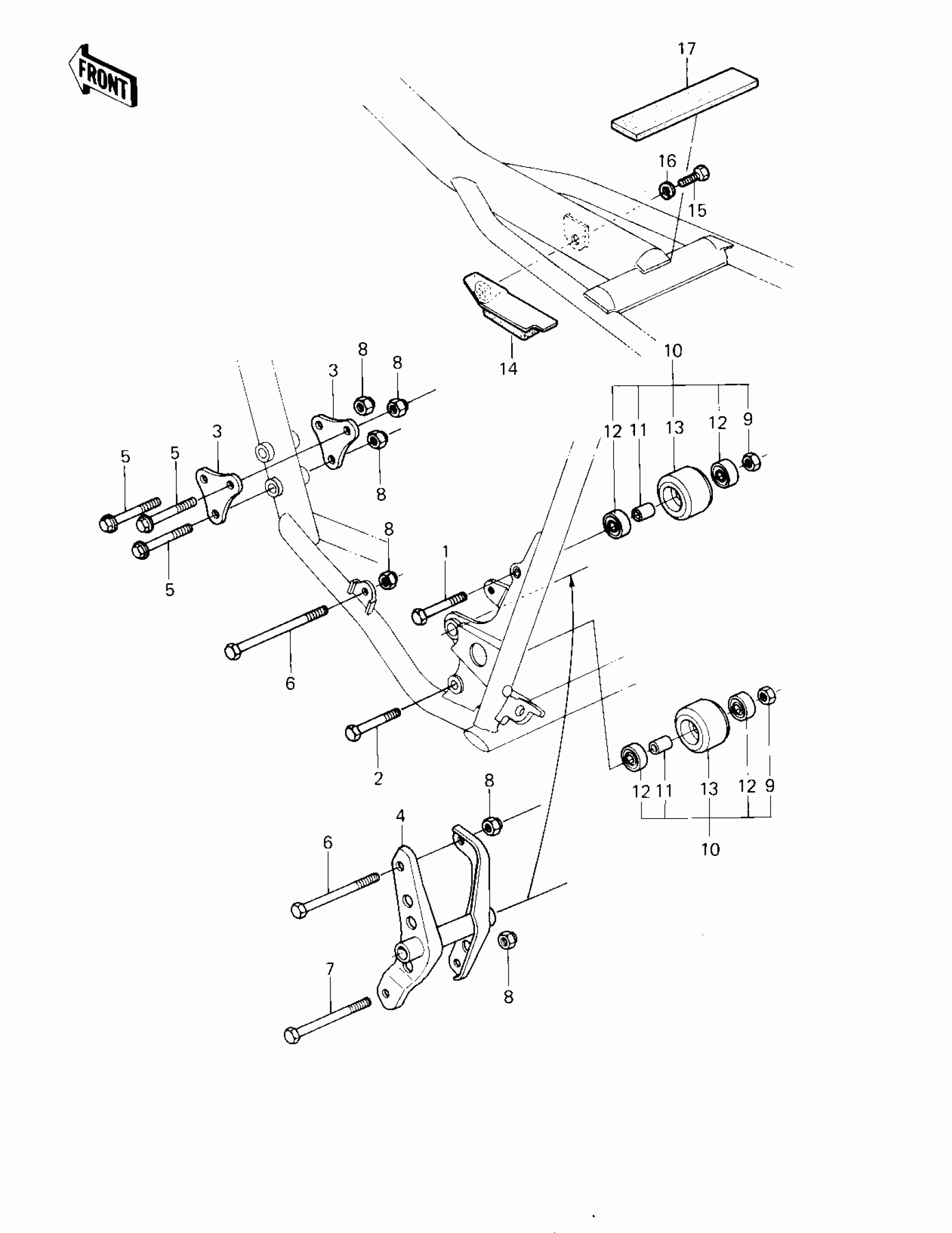

Kawasaki KDX175 FRAME FITTINGS ('80 A1) Diagram

#

Description
Price

1

BOLT,8X55

92001-1386

Unavailable

2

BOLT,FLANGED,8X70

92001-1583

$9.57

3

BRACKET-ENGINE

32029-1140

Unavailable

4

BRACKET,ENGINE REAR

32029-1123

$43.61

5

BOLT,8X69

92001-1410

Unavailable

6

BOLT,FLANGED,8X90

92002-1416

Unavailable

7

BOLT,8X105

92001-1394

Unavailable

8

NUT,LOCK,8MM

92015-1124

$5.42

9

NUT,LOCK,8MM

92015-1124

$5.42

10

ROLLER,ASSY

92122-1013

$108.77

11

COLLAR

92027-1081

$9.59

12

BEARING-BALL,608LLU/2A

92045-1009

$35.22

13

ROLLER

92122-1014

Unavailable

14

DAMPER,REAR SHOCK

92075-1249

Unavailable

15

BOLT SMALL

114G0812

Unavailable

16

WASHER SPRING 8MM

461F0800

$0.40

17

SEAL

92093-1039

Unavailable
