Description

Price

1

CAP,RUBBER

14039-001

$3.42

2

COVER,CARB BARREL

14030-1005

Unavailable

3

COVER,DRAIN PLUG

14025-1137

Unavailable

4

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

5

SCREW PAN HEAD 6X35

220B0635

$1.44

6

SCREW PAN HEAD 6X12

220B0612

Unavailable

7

OIL SEAL TB14257

653B142507

$19.62

8

COVER,OIL PUMP,BUFF

14030-050-80

Unavailable

9

SCREW-PAN-CROS,6X75

220B0675

Unavailable

10

CAP-OIL FILLER

16115-018

$8.38

11

COVER,R.H,ENG,BARREL

14032-1017

Unavailable

12

GASKET,CARBURETOR COVER

11060-1201

$26.35

13

GASKET,CLUTCH COVER

11060-1198

Unavailable

14

SCREW PAN HEAD 6X45

220B0645

$1.54

15

SCREW PAN HEAD 6X30

220B0630

Unavailable

16

BOLT,HEX HEAD,6X14

92001-121

Unavailable

17

WASHER OIL PUMP BANJO

92022-077

$3.13

18

PLUG,25X12

16116-006

$13.02

19

PLUG,DRAIN,10X12

92067-001

$3.50

20

GASKET,10.5X16X1

92065-058

$3.16

21

ADJUSTER-CABLE

16002-012

Unavailable

22

COVER,L.H ENG.BUFF

14031-078-80

Unavailable

23

SEAL-OIL,SB12205

92049-004

$7.95

24

GASKET,GENERATOR COVER

11060-1202

$21.69

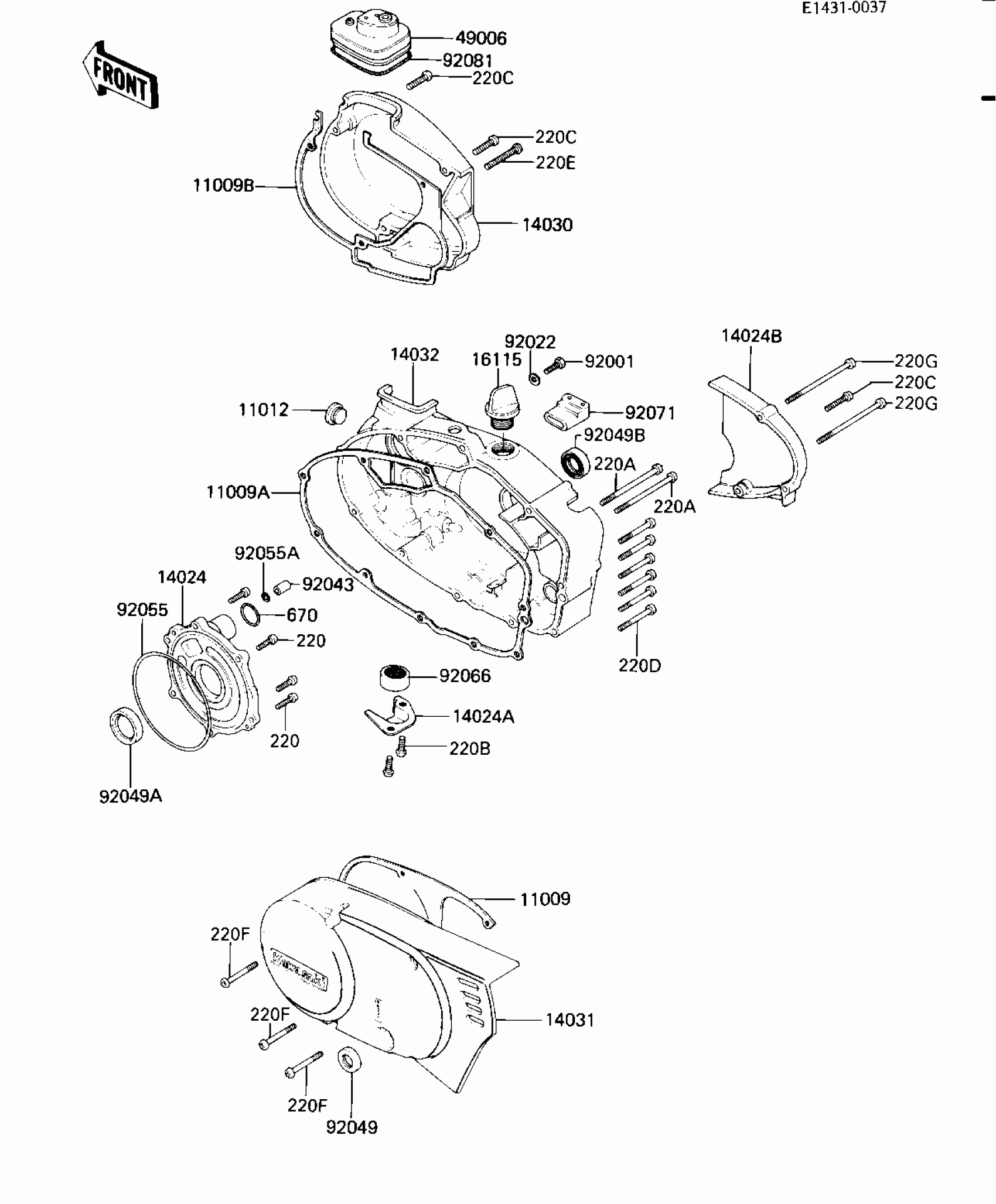

Kawasaki KD80 ENGINE COVERS Diagram

COVER,CARB BARREL

COVER,DRAIN PLUG

SCREW PAN HEAD 6X12

COVER,OIL PUMP,BUFF

SCREW-PAN-CROS,6X75

COVER,R.H,ENG,BARREL

GASKET,CLUTCH COVER

SCREW PAN HEAD 6X30

BOLT,HEX HEAD,6X14

ADJUSTER-CABLE

COVER,L.H ENG.BUFF
