1988 Kawasaki KD80 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1988 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

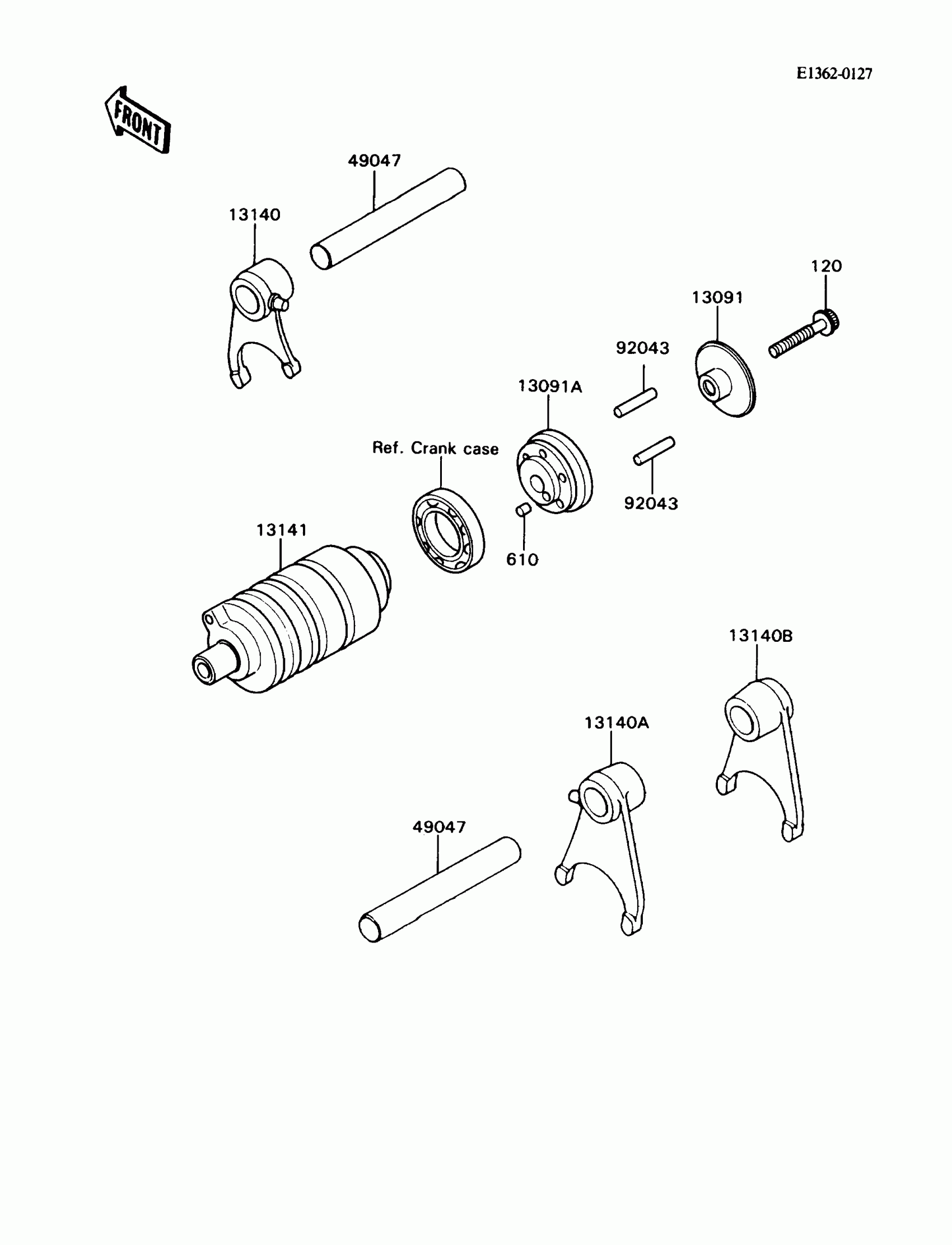

1988 Kawasaki KD80 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER

13091-1086

1
Out of stock

13091A

HOLDER,CHANGE DRUM

13091-1560

1
Out of stock

13140

FORK-SHIFT

13140-1108

1
Out of stock

13140A

FORK-SHIFT

13140-1109

1
Out of stock

13140B

FORK-SHIFT

13140-1110

1
Out of stock

13141

DRUM-CHANGE

13141-1154

1
Out of stock

49047

ROD-SHIFT,10X90

49047-1009

1

$15.29

In stock

92043

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

120

BOLT-SOCKET,6X30

120P0630

1
Out of stock

610

ROLLER,4X6

610A0406

1

$3.43

In stock
